Sony ILME-FX3 - Rear Side

Help Guide
Interchangeable Lens Digital Camera
ILME-FX3 Ver.2 or later

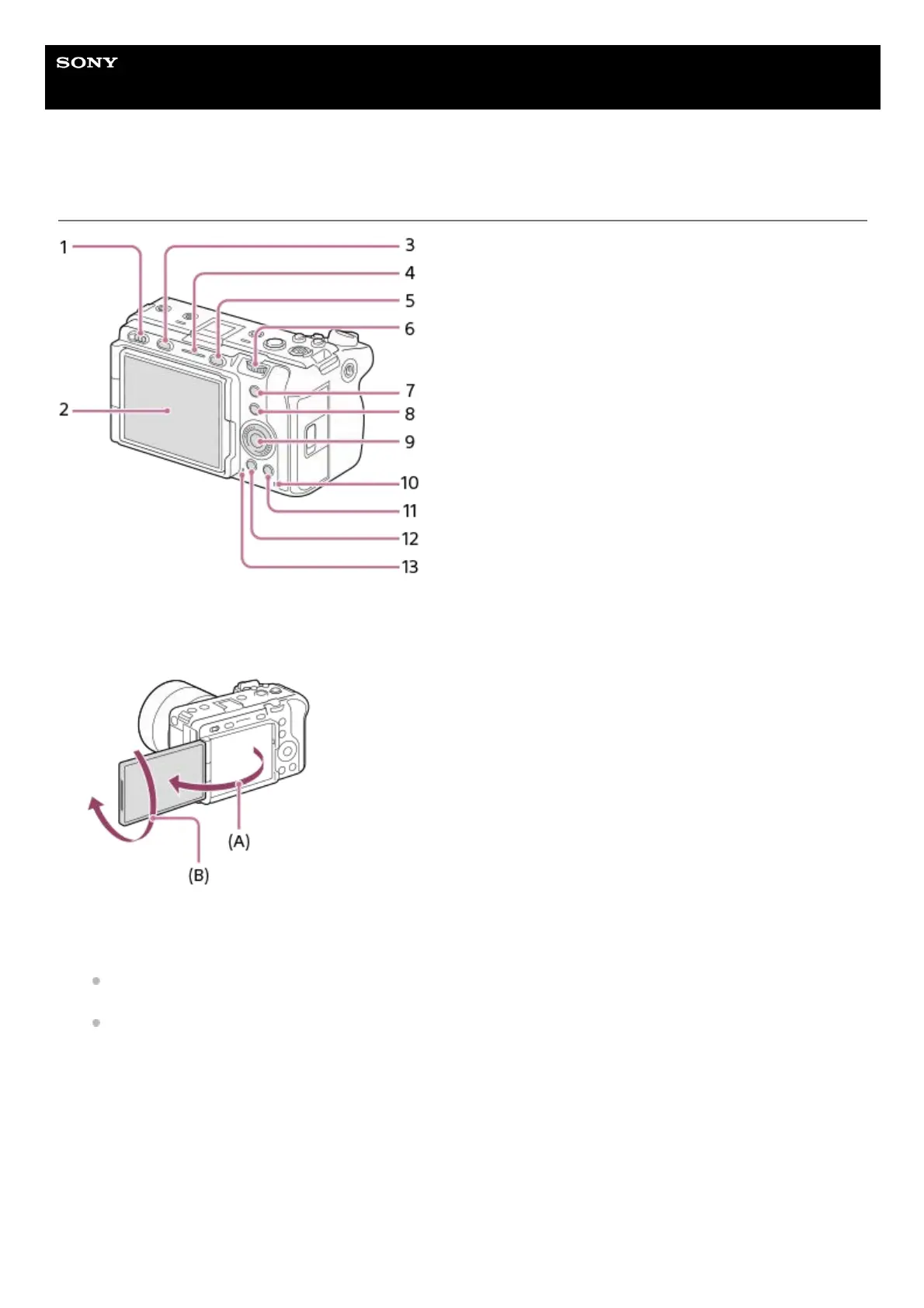

Rear side
Power switch1.
Monitor/Touch panel
You can adjust the monitor to an easily viewable angle and shoot from any position.
(A): Approx. 176°
(B): Approx. 270°
You may not be able to adjust the monitor angle depending on the type of a tripod you use. In such a case,
release the tripod screw once to adjust the monitor angle.
Do not apply excessive force when opening, closing, or rotating the monitor. Doing so may cause a malfunction.
2.
MODE (Mode) button3.
Recording lamp4.
MENU button5.
Rear dial
You can quickly adjust the settings for each shooting mode.
6.
5 button (Custom button 5)/FOCUS MAG (Focus magnifier) button7.
Fn (Function) button8.
Control wheel9.
Access lamp10.
38
