Help Guide
Interchangeable Lens Digital Camera
ILX-LR1

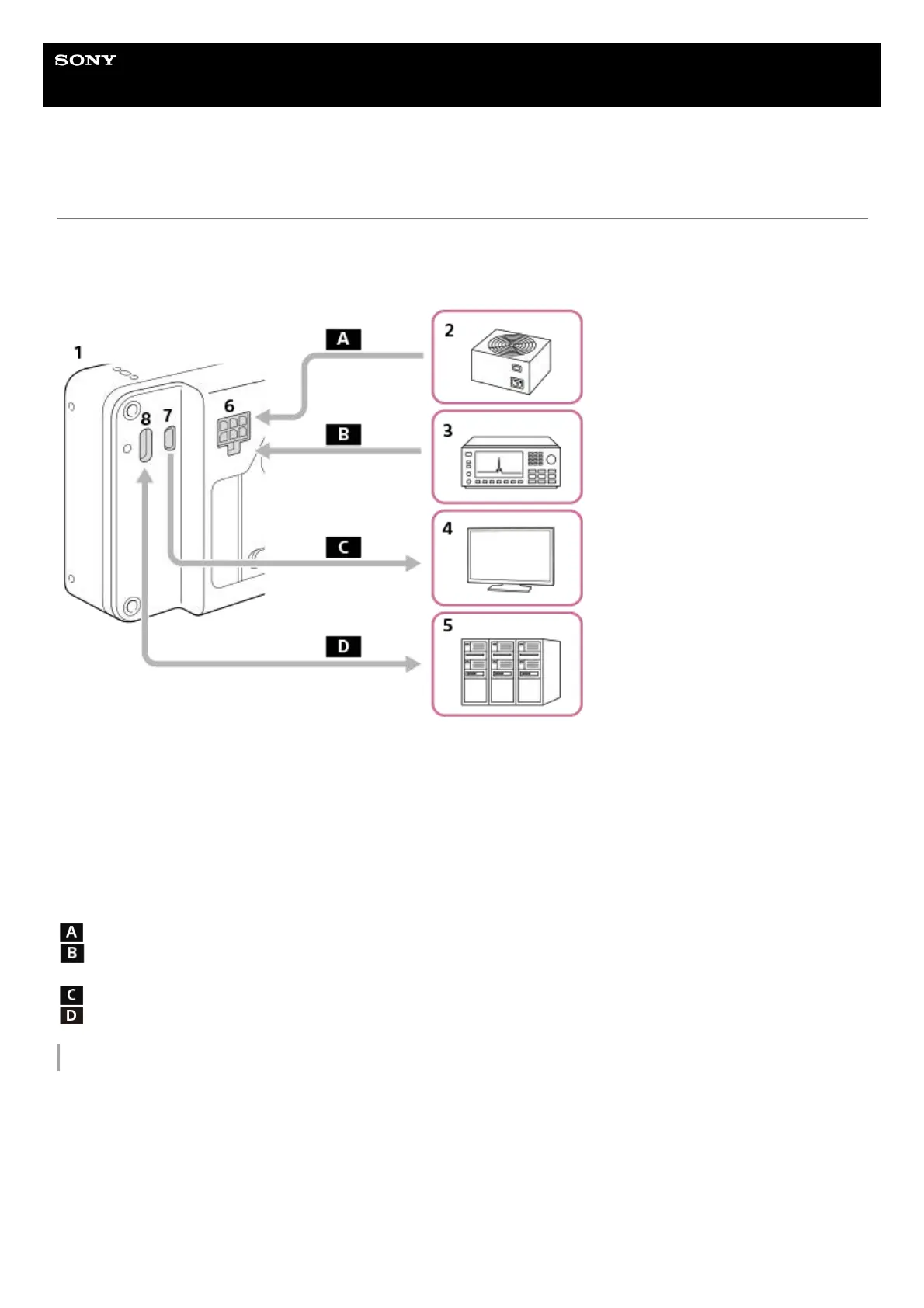

Example of connecting individual devices
By individually connecting a power supply unit, signal generator, and computer, etc. to the Power & Control terminal, USB
Type-C terminal, and HDMI micro jack on this product, power supply to this product, mutual control, and monitoring are
possible.
Power supply
FOCUS (Command to focus the camera)
TRIGGER (Command to release the camera shutter)
Operation screen/Live View (HDMI)
Camera control (USB)
Example of using a PoE splitter
If you use a PoE splitter, etc., you can supply power and operate the camera at the same time.
This product1.
Power supply unit2.
Signal generator3.
Monitor4.
Computer/equipment, etc.5.
Power & Control terminal6.
HDMI micro jack7.
USB Type-C terminal8.
