Help Guide
Interchangeable Lens Digital Camera
ILX-LR1

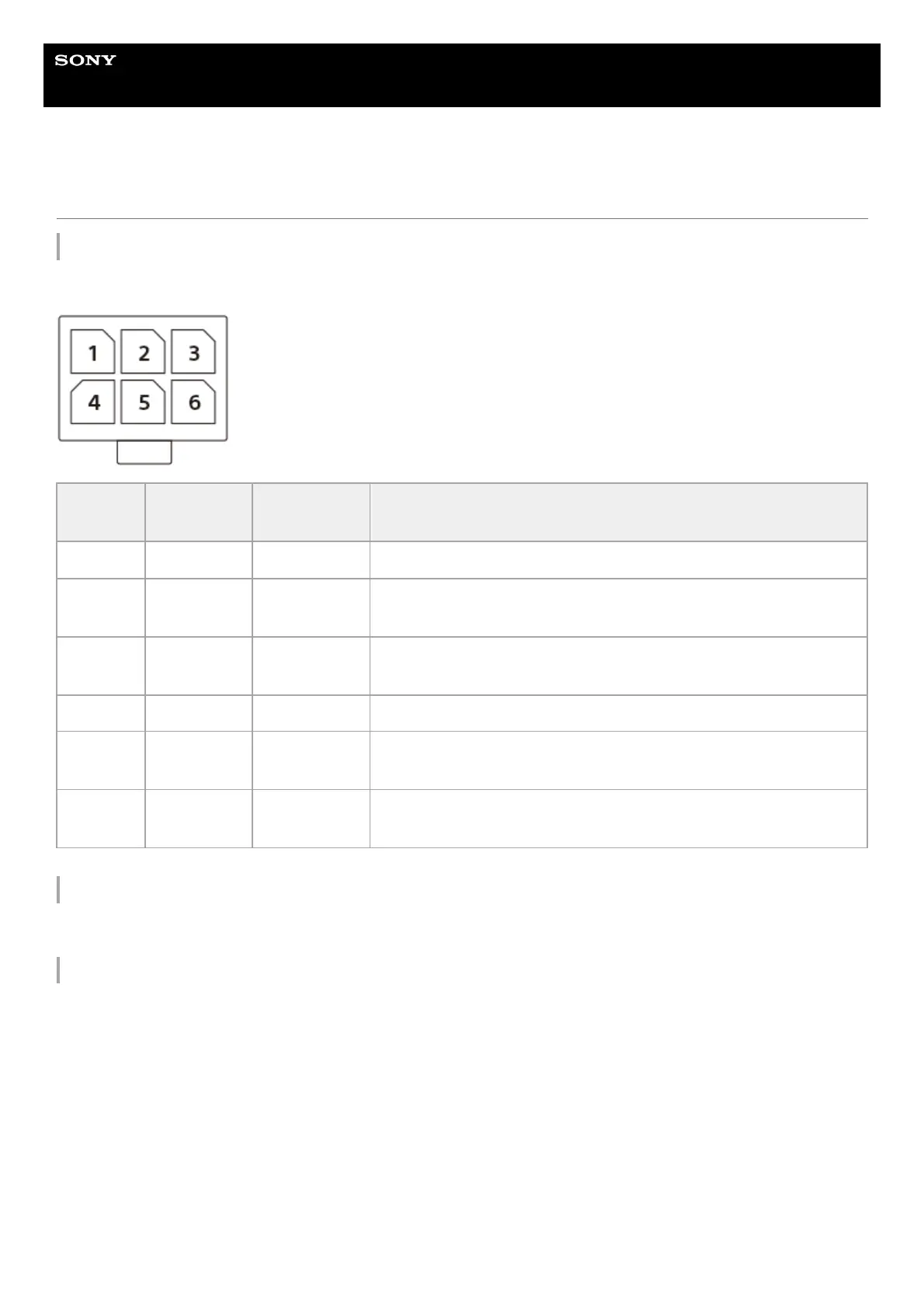

Power & Control terminal specifications
Connector specifications
Molex Micro-Fit 3.0 6 pin (430450622)
DC IN terminal
Input voltage: 10 V – 18 V
EXPOSURE terminal (Output)
Pin
number
Input/output Name Function
1 ― ― This is a non-functional terminal.
2 GND
DC 10-18 V IN
-
This is connected to the GND.
3
Power
source
DC 10-18 V IN
+
This is connected to the power source.
4 Input FOCUS This locks the camera focus with “Low” input.
5 Input TRIGGER
This performs shooting with “Low” input when the input for the FOCUS
terminal is “Low.”
6 Output EXPOSURE
This outputs “Low” from when the front curtain is fully opened until the
exposure is complete (1 msec or longer).
