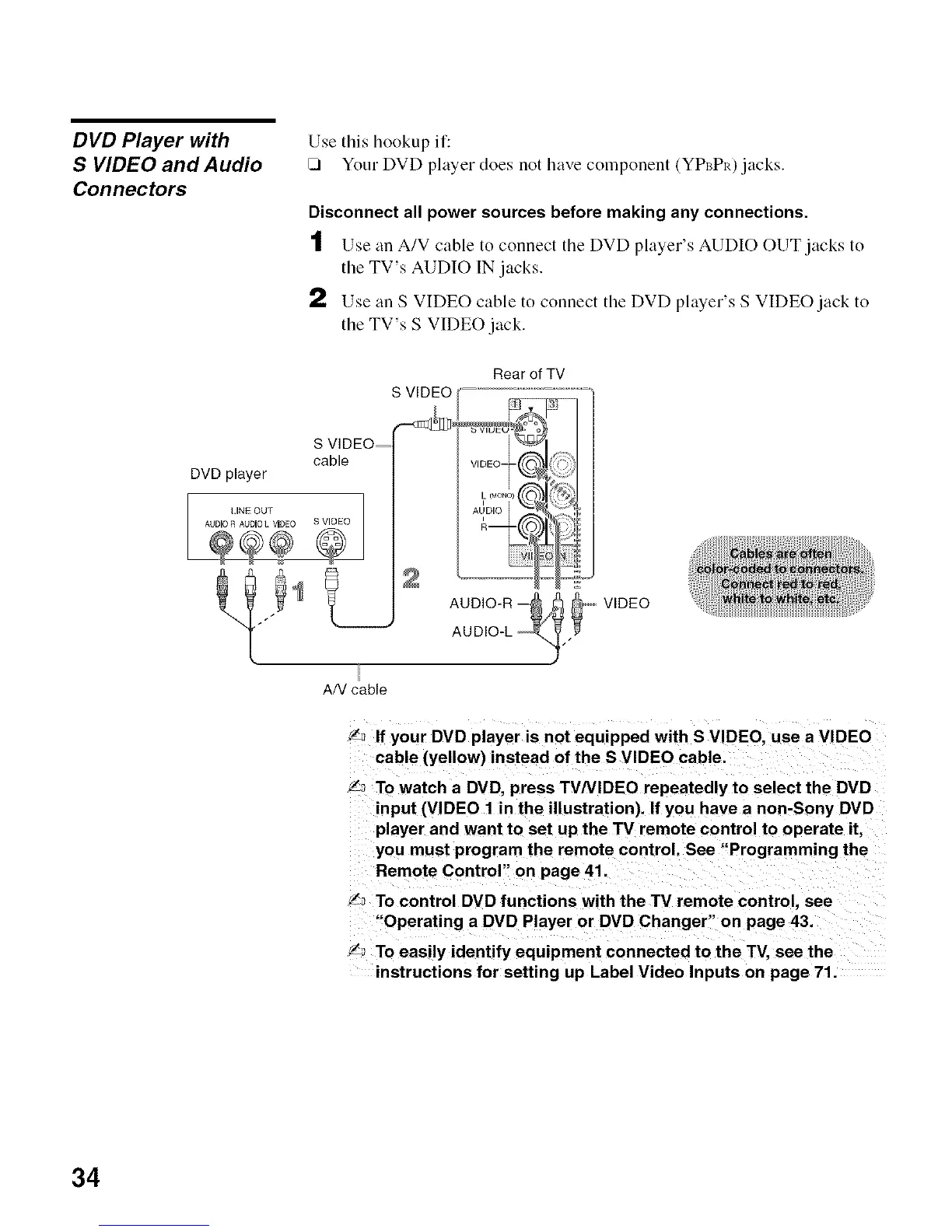

DVD Player with
S VIDEO andAudio
Connectors
DVD player
Use this hookup if:
[] Your DVD player does not have component (YPBPI0 jacks.
Disconnect all power sources before making any connections.
t Use an A/V cable to connect tile DVD player's AUDIO OUT jacks to
the TV's AUDIO IN jacks.
a,) Use an S VIDEO cable to connect the DVD player's S VIDEO jack to
the TV's S VIDEO jack.
Rear of TV
S VIDEO .........................
,.-<
S VIDEO--
cable
Ii
A/V cable
AUDIO-R _. _-- VIDEO
AUDIO-L
L_ if your DVD player is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
_ To watch a DVD, press TV/VIDEO repeatedly to select the DVD
input (VIDEO 1 in the illustration). If you have a non-Sony DVD
player and want to set up the TV remote control to operate it,
you must program the remote control. See "Programming the
Remote Control" on page 41.
_ To control DVD functions with the TV remote control, see
"Operating a DVD Player or DVD Changer" on page 43.
,F,_To easily identify equipment connected to the TV. see the
instructions for setting up Label Video Inputs on page 71.
