Sony KDF-E42A11E - 6 Exploded Views; Screen Mirror Block, Covers

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 71 -
KDF-E42/50A11E
RM-ED002
SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

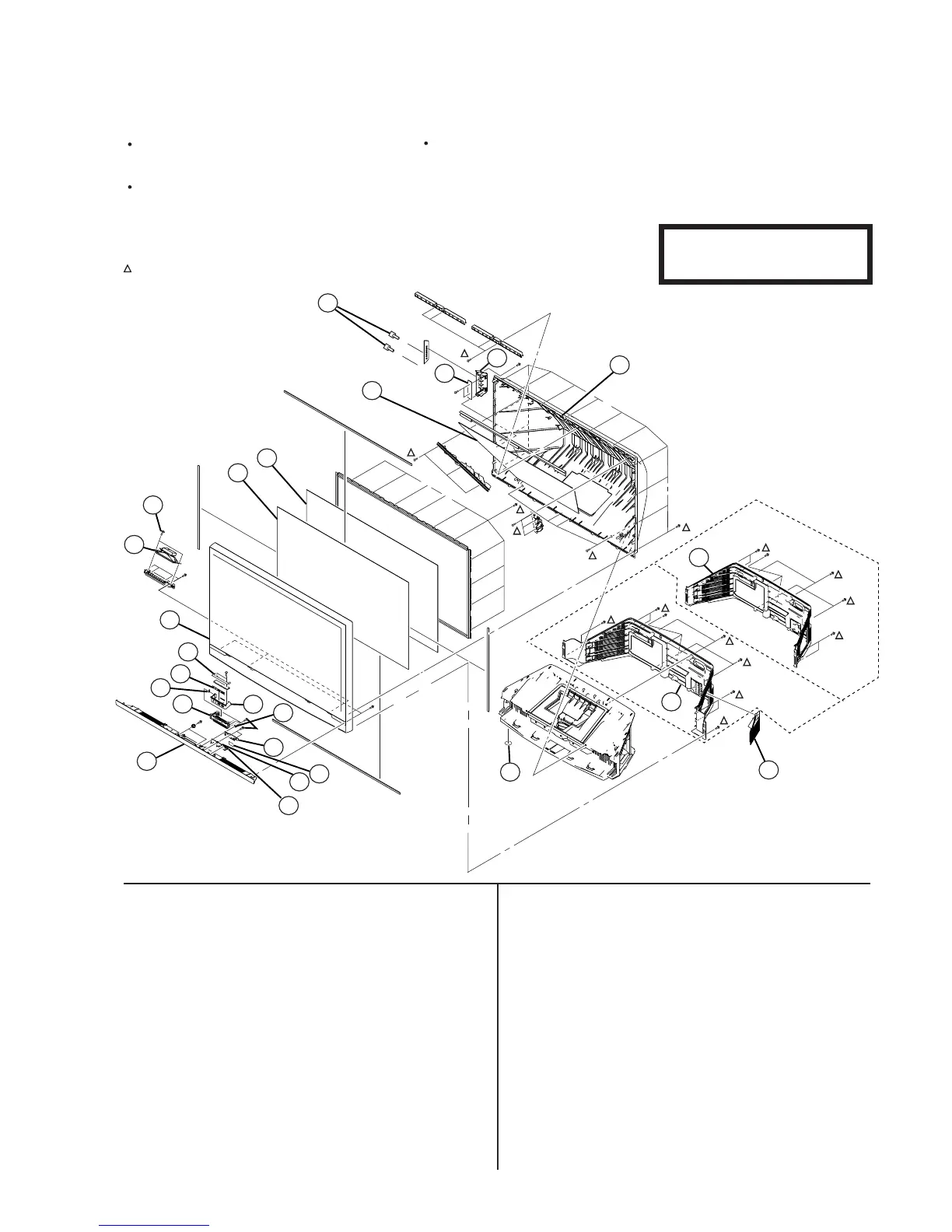

6-1. SCREEN MIRROR BLOCK, COVERS
1 2-631-806-31 GRILLE, SPEAKER(42) (E42A11E)
2-631-808-31 GRILLE, SPEAKER(50) (E50A11E)
2 2-590-913-11 BUTTON, POWER
3 2-590-914-11 BUTTON, MULTI
4 1-826-219-11 LOUD SPEAKER (5.5X15CM)
5 4-058-870-01 SCREW, (4X16) W (+) P TAPPING
6 X-2067-166-1 FRAME ASSY SCREEN (E42A11E)
X-2067-114-1 FRAME ASSY SCREEN (E50A11E)
7 2-590-449-21 PLATE (42L), DIFFUSION (E42A11E)
2-590-451-21 PLATE (50L), DIFFUSION (E50A11E)
8 2-590-450-21 PLATE (42F), DIFFUSION (E42A11E)
2-590-452-11 PLATE (50F), DIFFUSION (E50A11E)
9 2-592-457-12 MIRROR (E42A11E)
2-592-456-11 MIRROR (E50A11E)
10 *2-649-045-01 BRACKET H3 (42) (E42A11E)
*2-637-136-01 BRACKET H3 (50) (E50A11E)
11 2-590-902-32 COVER, MIRROR (42) (E42A11E)
2-590-907-33 COVER, MIRROR (50) (E50A11E)
12 *A-1107-972-A H3 BOARD COMPLETE
13 2-631-704-11 COVER REAR (42) (E42A11E)
2-631-704-01 COVER REAR (50) (E50A11E)
14 2-591-156-21 DOOR, LAMP
15 4-097-548-01 CUSHION, FOOT
16 *2-590-915-21 TRAY, CONTROL
17 2-593-048-01 DAMPER
18 2-590-916-11 TRAY, CONTROL (TOP)
19 2-590-917-11 BRACKET, CONTROL TRAY
20 2-593-049-01 LATCH ASSY
21 2-590-918-21 GUIDE, LED
22 *A-1107-970-A H1 BOARD COMPLETE
23 *A-1107-971-A H2 BOARD COMPLETE
24 4-635-966-01 SCREW (HEX)
 : 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
: 7-685-663-79 SCREW +BVTP 4X16 TYPE2 IT-3
E42A11
E50A11
SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.
6-1. SCREEN MIRROR BLOCK, COVERS
21
20
24
1
7
11
The components identified by shading
and mark are critical for safety.
Replace only with part number specified.
£
8





9
13
14
13
5
4
6
3
17
16
2
18
19
15
12
10
22
23
