Sony KDF-E42A11E - Chassis;Bottom Block Assembly

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
KDF-E42/50A11E
RM-ED002
- 72 -
21 £ 1-823-715-21 CORD, POWER
22 3-701-810-72 SCREW, TERMINAL
23 4-065-070-01 HOLDER, AC CORD
24 X-2067-113-2 BLOCK, ADJUSTER ASSY
25 *A-1115-078-C P BOARD COMPLETE
26 *A-1151-514-A AG COMPLETE DIG ZAPPING
27 *A-1129-435-A JB WAX COMPLETE DIG
28 *A-1151-409-B N COMPLETE LE4B (ZAPPING)
29 *2-593-078-21 BRACKET, G
30 *2-595-154-02 SHEILD (UPPER A), HDMI
31 *2-632-907-01 BRACKET HDMI
32 *2-637-134-11 BRACKET, TERMINAL
33 *2-637-135-02 BRACKET F
34 *A-1087-559-A C BOARD COMPLETE
 : 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
: 7-685-663-79 SCREW +BVTP 4X16 TYPE2 IT-3

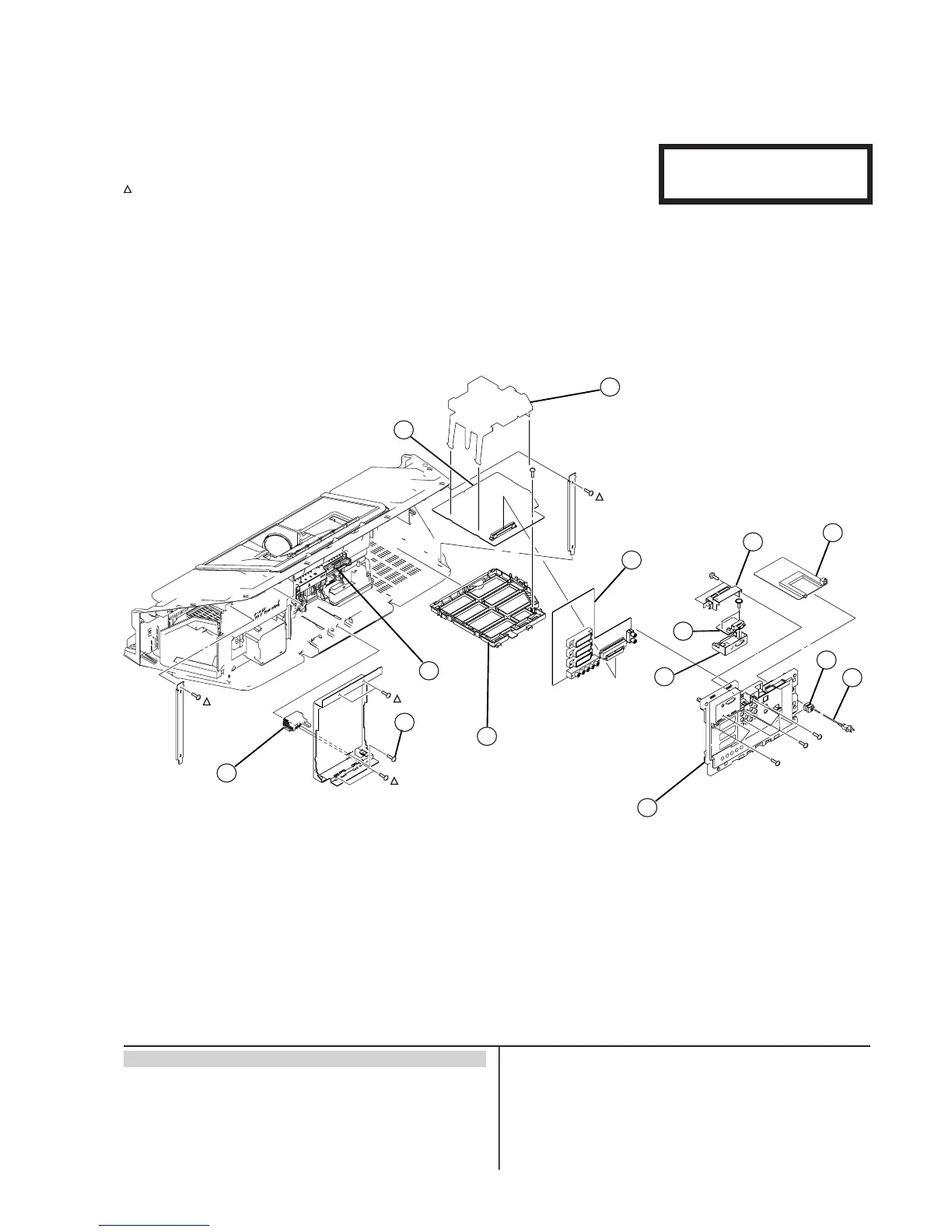

6-2. CHASSIS / BOTTOM BLOCK ASSEMBLY
The components identified by shading
and mark are critical for safety.
Replace only with part number specified.
£





21
22
23
27
26
25
28
24
29
30
33
32
31
34
