Chapter 2 - Service and Troubleshooting
CTV-41 53

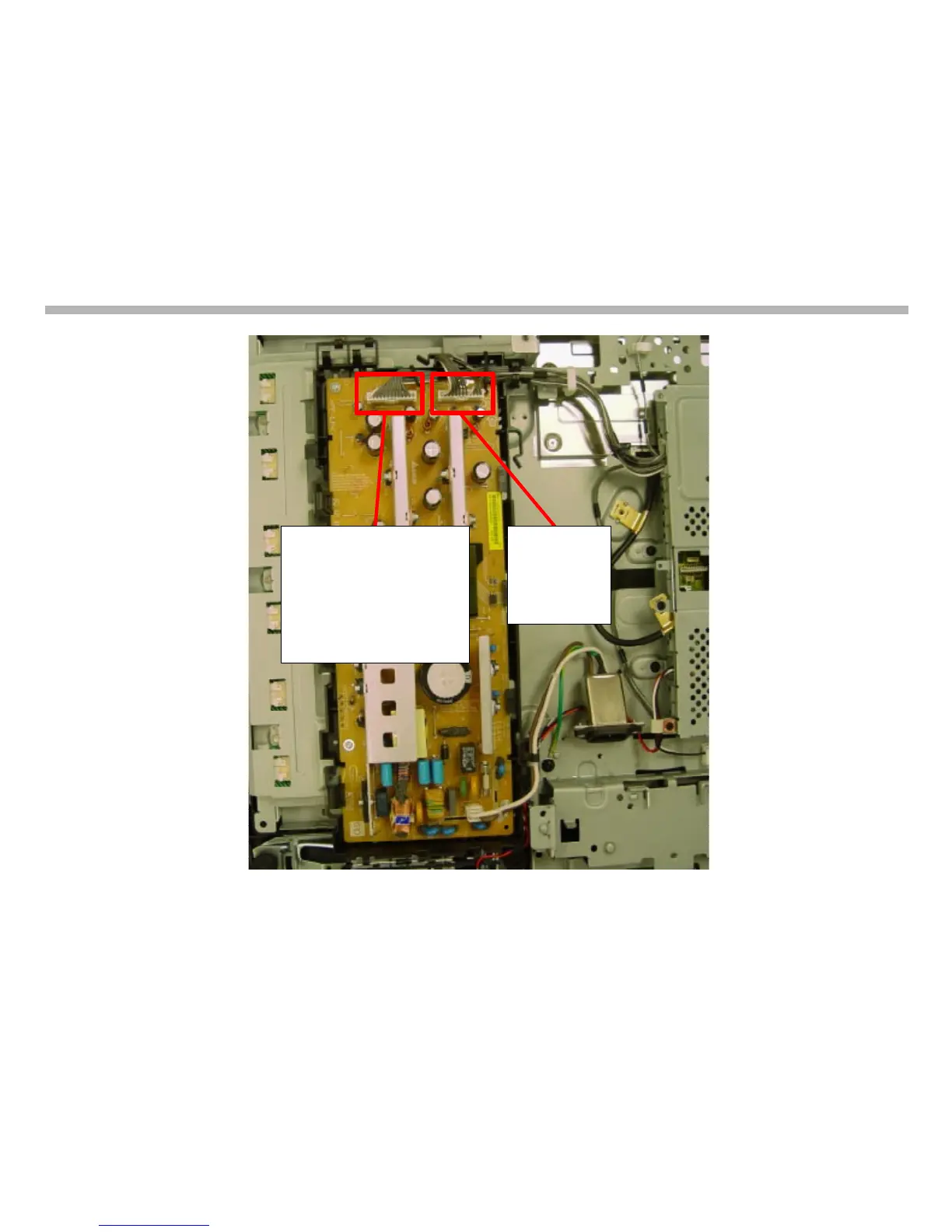

FIGURE 2-11
26" G1D TEST POINTS
CN2
1,2 GROUND
3,4 12V
5~8 GROUND
9~12 24V
CN3
1~3 GROUND
4,5 6.5V
7,8 AUDIO GROUND
8,9 AUDIO 13.5V
10 AC
_OFF_DET (NORM LOW)
11 POWER ON
(ON = 2.8V)
12 GROUND
13 STBY 3.3V
FIGURE 2-11
26” G1D BOARD TEST POINTS
