Sony KDL-26S3000 Training Manual

Chapter 2 - Service and Troubleshooting
CTV-41 54

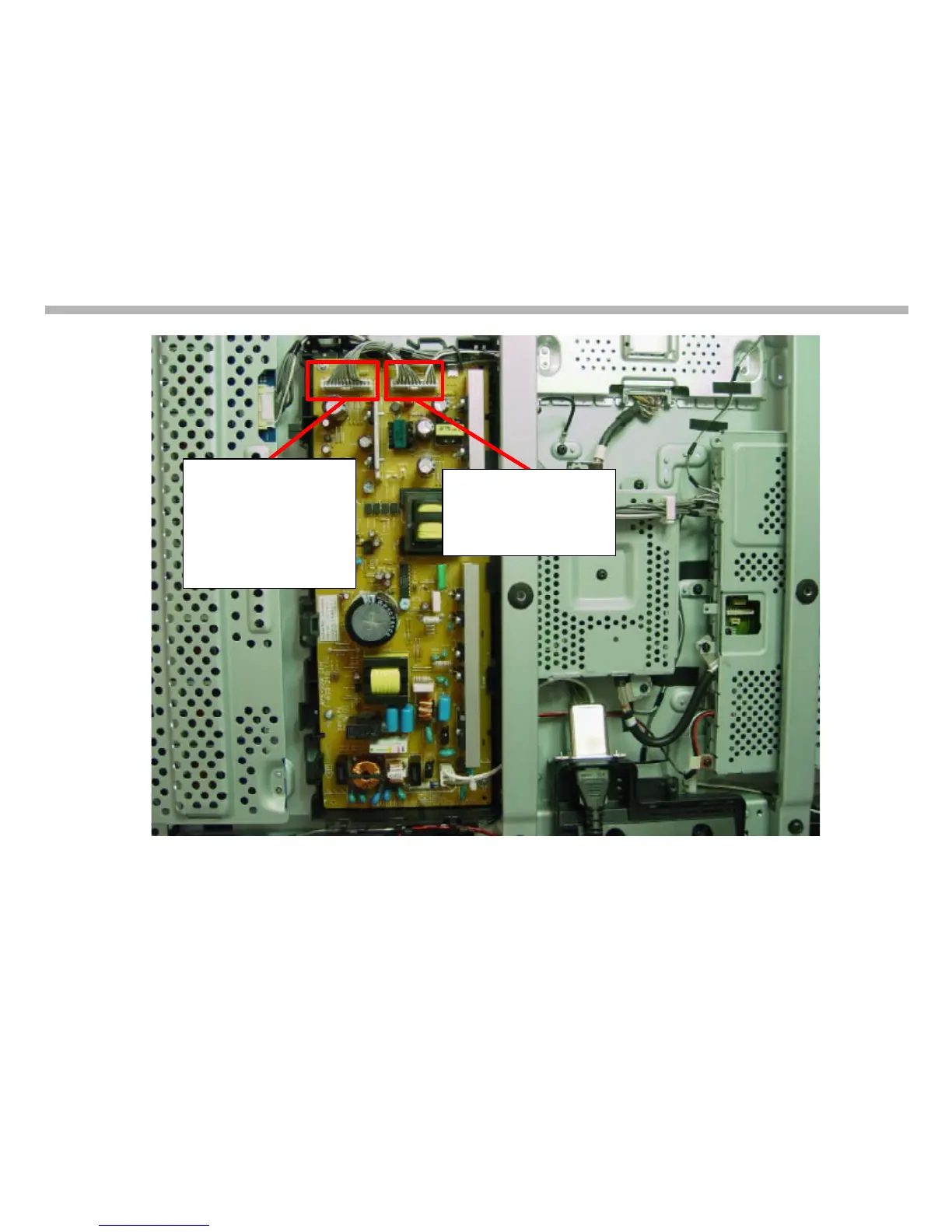

FIGURE 2-12
G1H TEST POINTS
CN6202
1~4 – REG 24V
5~8 – GROUND
9,10 – REG 12V
11,12 – GROUND
CN6201
1
– STBY 3.3V
2 – GROUND
3 – POWER ON
4
– AC DETECT
5,6 – AUDIO 13V
7,8 – AUDIO GROUND
9,10 – UNREG 6V
FIGURE 2-12
32” G1H BOARD TEST POINTS
