Sony KDL-26S3000 Training Manual

Chapter 2 - Service and Troubleshooting
CTV-41 55
FIGURE 2-13

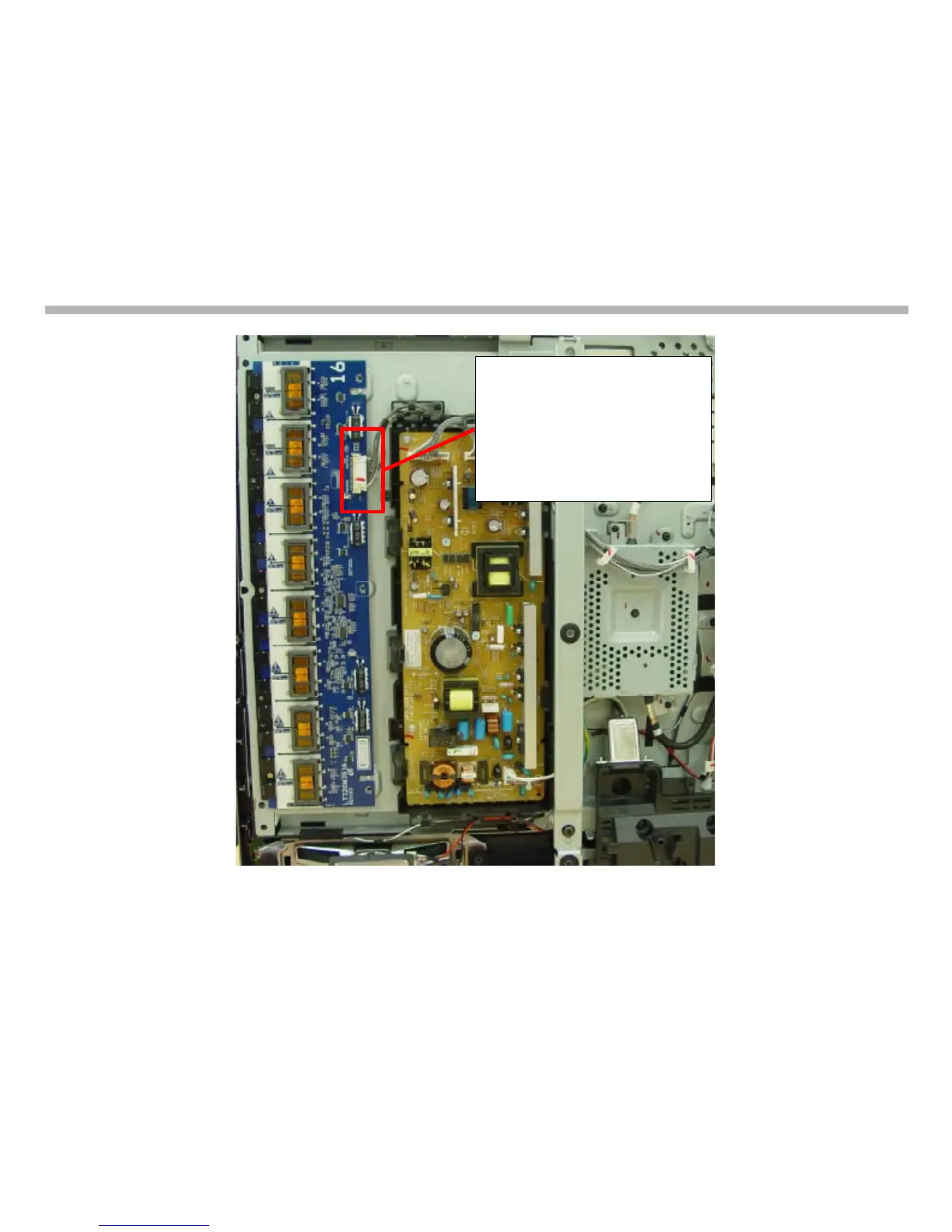

26/32 INVERTER TEST POINTS
CN001 (SHOWN WITH SHIELD
REMOVED)
1~5 24V
6~10 GROUND
11 INV
_ERROR (NORM LOW)
12 BACKLIGHT ON
(3.3V = ON)
14 DIMMER
(1.2~2.8VDC)
FIGURE 2-13
26/32” INVERTER TEST POINTS
