Sony KDL-26S3000 Training Manual

Chapter 2 - Service and Troubleshooting
CTV-41 56

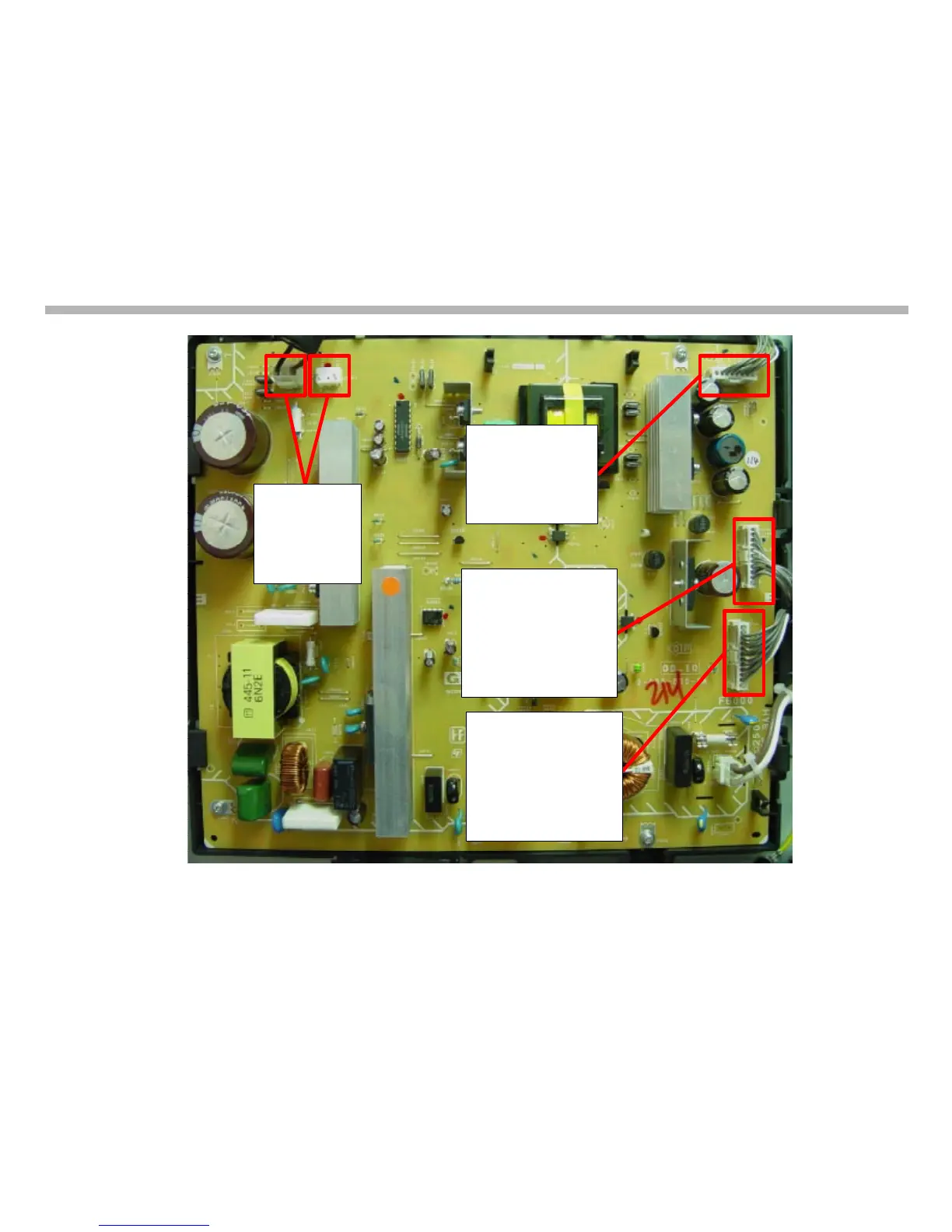

FIGURE 2-14
40/46" G3 TEST POINTS
CN6501, CN6502
ONE USED IN 40
"
BOTH USED IN 46"
1
– PFC 380V
3 – PFC GND
CN6004
1
– GROUND
2 – DIMMER
3
– BACKLIGHT ON
4 – INVERTER ERROR
6
– REG 12V
7
– BALANCER ERROR
CN6203
1~3 – GROUND
4~6 – REG 12V
7 – BALANCER ERROR
6
– REG 12V
7
– BALANCER ERROR
9 – INVERTER ERROR
10
– BACKLIGHT ON
11 – DIMMER
CN6202
1,2 – GROUND
3,4 – 6V
5,6 – AUDIO GROUND
7,8 – AUDIO 13V
9 – AC OFF DET
10
– POWER ON
12
– STBY 3.3V
FIGURE 2-14
40/46” G3 BOARD TEST POINTS
