Sony KDL-26S3000 Training Manual

CTV41 59
Chapter 3. Disassembly

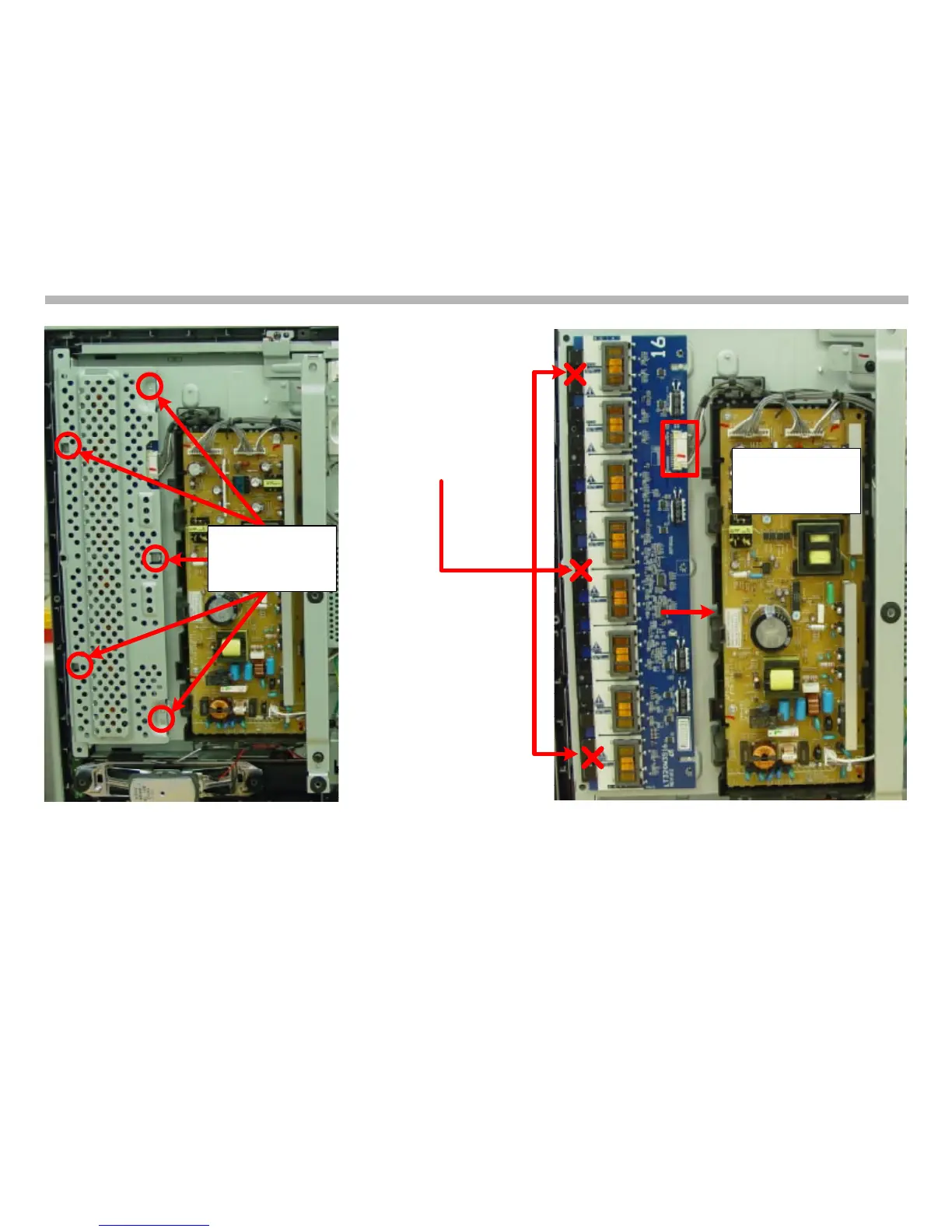

FIGURE 3-2
26/32" INVERTER REMOVAL
SHIELD REMOVAL
INVERTER BOARD REMOVAL
REMOVE SCREWS
SECURING
SHIELD
REMOVE
CONNECTOR AND
PULL BOARD TO
THE RIGHT
WARNING!
NEVER REMOVE THE
SCREWS SECURING THE
PLASTIC STRIP HOLDING
THE LAMP SOCKETS.
DAMAGE TO THE
BACKLIGHT TUBES WILL
OCCUR
!
FIGURE 3-1
CIRCUIT BOARD ACCESS
