CTV41 63
Chapter 3. Disassembly
FIGURE 3-5
26
/32 LCD PANEL REMOVAL (STEP 3)

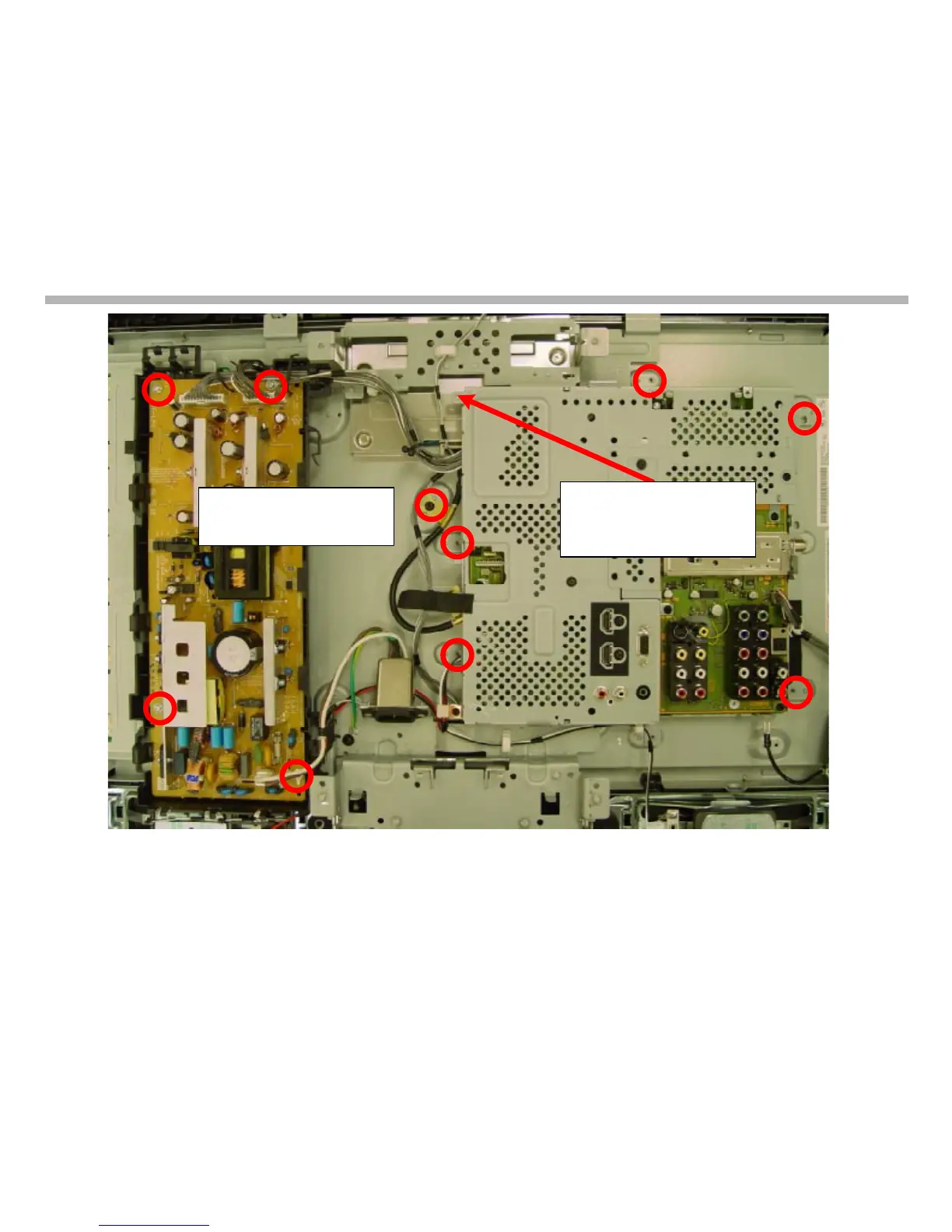

REMOVE SCREWS FROM
INDICATED LOCATIONS
ONCE BU1 BOARD IS LOOSE,
MOVE IT TO THE RIGHT AND
UNPLUG THE LVDS CABLE
FROM THE PANEL
FIGURE 3-5
26/32” PANEL REMOVAL (STEP 3)
