Sony KDL-32S3000 User Manual

SECTION 6
ELECTRICAL PARTS LIST

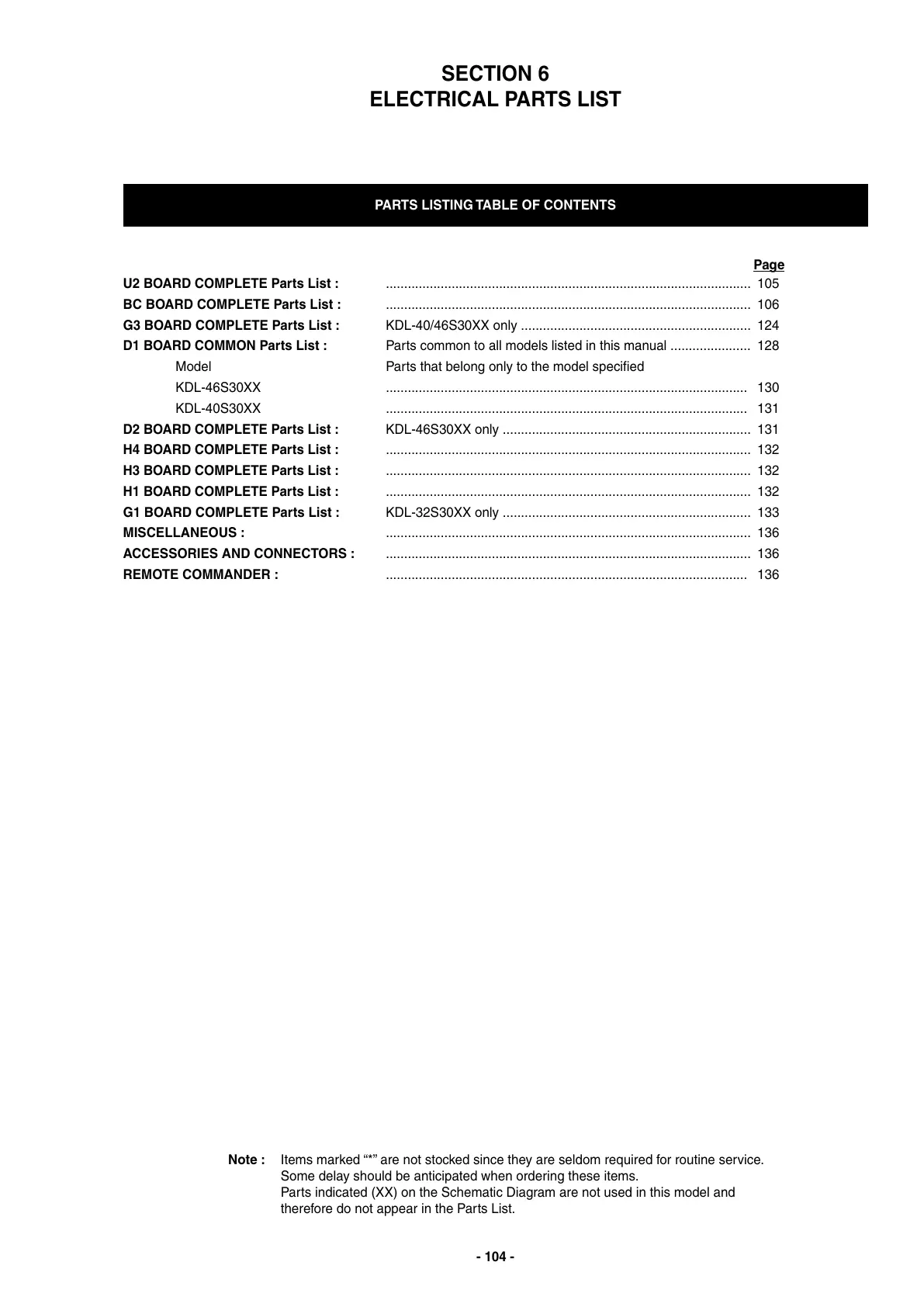

PARTS LISTING TABLE OF CONTENTS
Note : Items marked “*” are not stocked since they are seldom required for routine service.
Some delay should be anticipated when ordering these items.
Parts indicated (XX) on the Schematic Diagram are not used in this model and
therefore do not appear in the Parts List.
- 104 -
Page
U2 BOARD COMPLETE Parts List : .................................................................................................... 105
BC BOARD COMPLETE Parts List : .................................................................................................... 106
G3 BOARD COMPLETE Parts List : KDL-40/46S30XX only ............................................................... 124
D1 BOARD COMMON Parts List : Parts common to all models listed in this manual ...................... 128
Model Parts that belong only to the model specified
KDL-46S30XX ................................................................................................... 130
KDL-40S30XX ................................................................................................... 131
D2 BOARD COMPLETE Parts List : KDL-46S30XX only .................................................................... 131
H4 BOARD COMPLETE Parts List : .................................................................................................... 132
H3 BOARD COMPLETE Parts List : .................................................................................................... 132
H1 BOARD COMPLETE Parts List : .................................................................................................... 132
G1 BOARD COMPLETE Parts List : KDL-32S30XX only .................................................................... 133
MISCELLANEOUS : .................................................................................................... 136
ACCESSORIES AND CONNECTORS : .................................................................................................... 136
REMOTE COMMANDER : ................................................................................................... 136
All manuals and user guides at all-guides.com

Sony KDL-32S3000 Specifications

General

Audio system	B/G, D/K: R1-R12, R21-R69, I: UHF B21-B69, L: F2-F10, B-Q, F21-F69, NICAM
On Screen Display (OSD)	Yes
Headphone outputs	1
HDMI ports quantity	3
SCART ports quantity	2
Response time	8 ms
Display diagonal	32 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	149 W

Weight and Dimensions

Depth (with stand)	214 mm
Width (with stand)	790 mm
Height (with stand)	581 mm
Weight (with stand)	16500 g
Depth (without stand)	100 mm
Height (without stand)	530 mm
