Sony KDL-32S3000 User Manual

- 3 -
SE1A
RM-ED009

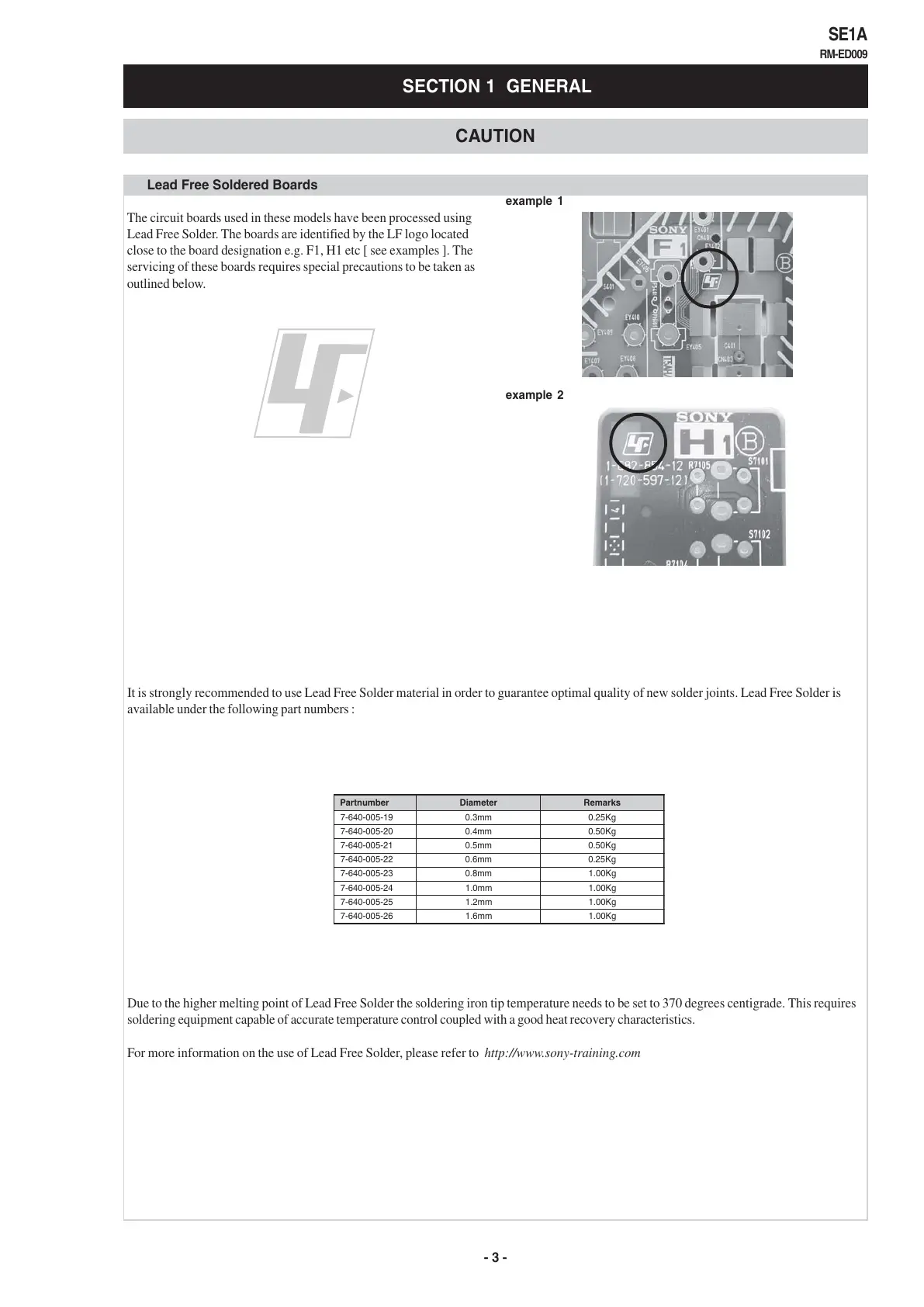

The circuit boards used in these models have been processed using
Lead Free Solder. The boards are identified by the LF logo located
close to the board designation e.g. F1, H1 etc [ see examples ]. The
servicing of these boards requires special precautions to be taken as
outlined below.
Lead Free Soldered Boards
example 1
example 2
It is strongly recommended to use Lead Free Solder material in order to guarantee optimal quality of new solder joints. Lead Free Solder is
available under the following part numbers :
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires
soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics.
For more information on the use of Lead Free Solder, please refer to http://www.sony-training.com
rebmuntraP retemaiD skrameR
91-500-046-7mm3.0gK52.0
02-500-046-7mm4.0gK05.0
12-500-046-7mm5.0gK05.0
22-500-046-7mm6.0gK52.0
32-500-046-7mm8.0gK00.1
42-500-046-7mm0.1gK00.1
52-500-046-7mm2.1gK00.1
62-500-046-7mm6.1gK00.1
CAUTION
SECTION 1 GENERAL
All manuals and user guides at all-guides.com

Sony KDL-32S3000 Specifications

General

Audio system	B/G, D/K: R1-R12, R21-R69, I: UHF B21-B69, L: F2-F10, B-Q, F21-F69, NICAM
On Screen Display (OSD)	Yes
Headphone outputs	1
HDMI ports quantity	3
SCART ports quantity	2
Response time	8 ms
Display diagonal	32 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	149 W

Weight and Dimensions

Depth (with stand)	214 mm
Width (with stand)	790 mm
Height (with stand)	581 mm
Weight (with stand)	16500 g
Depth (without stand)	100 mm
Height (without stand)	530 mm
