Sony KDL-32S3000 User Manual

- 21 -
SE1A
RM-ED009

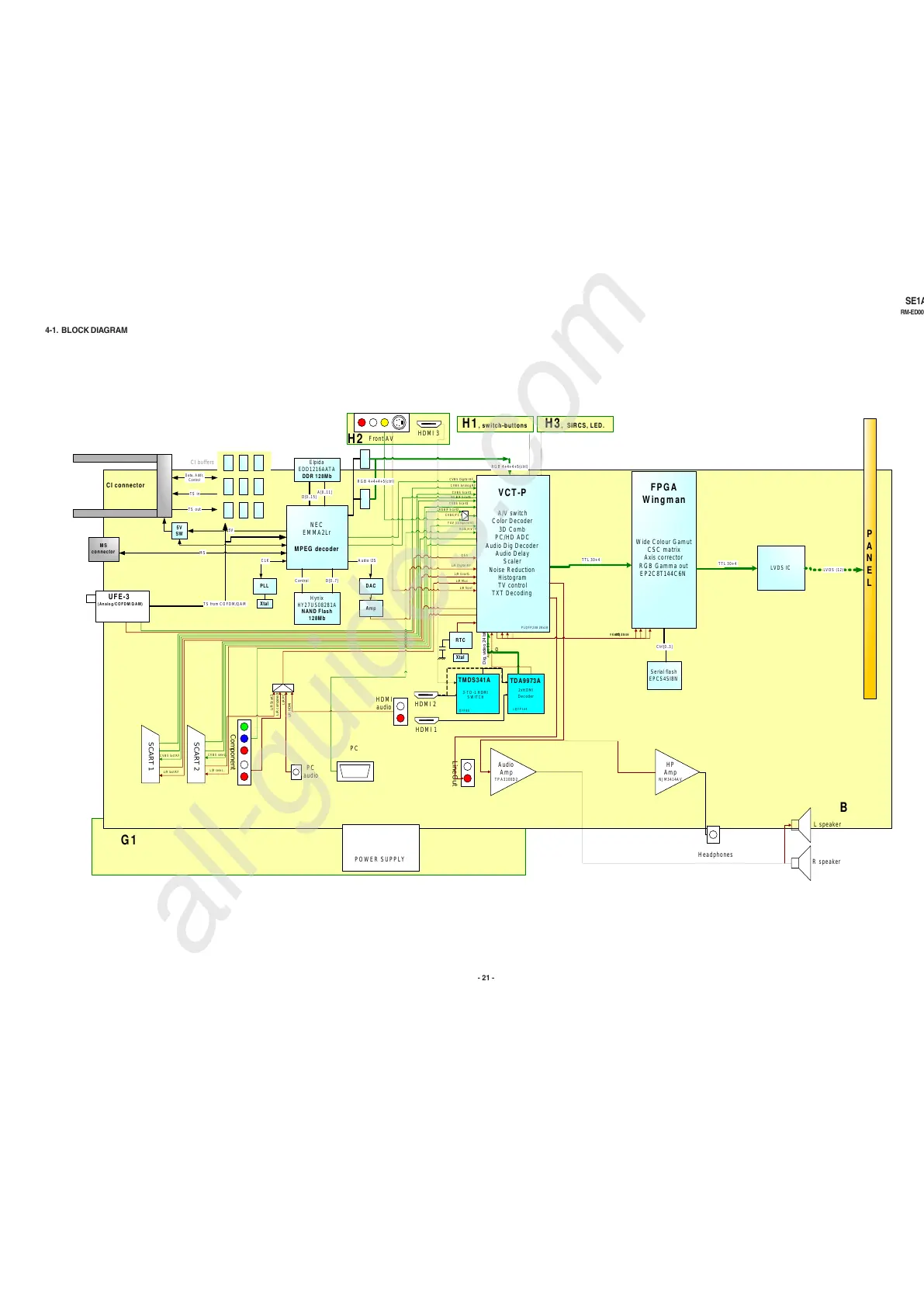

4-1. BLOCK DIAGRAM
CA module
q
TMDS341A
TTL 30+4
TDA9973A
Dig. video 24 bit
SCART 1
2xHDMI
Decoder
LQFP144
SCART 2
656 Digital RF
CVBS Scart1
RGB/F Scart1
CVBS Scart2
RGB/F Scart2
CVBS selec.
RGB,H,V (PC)
YUV (component)
CVBS/YC Front
CVBS last RF
L/R Scart1
L/R last RF
L/R Scart2
L/R se lec.
L/R front
L/R PC
L/R component
CVBS Analog RF
QSS
Front AV
Headphones
VCT-P
A/V switch
Color Decoder
3D Comb
PC/HD ADC
Audio Dig Decoder
Audio Delay
Scaler
Noise Reduction
Histogram
TV control
TXT Decoding
PLQFP208 28x28
Line Out
Component
PC
PC
audio
HDMI
audio
L/R HDMI
L/R Mux
L/R Digital RF
CVBS Digital RF
Audio
Amp
TPA3100D2
L speaker
R speaker
H1 , switch-buttons
H2
H3 , SIRCS, LED.
POWER SUPPLY
G1
B
HP
Amp
NJM3414AV
Audi o I2S
NEC
EMMA2Lr
MPEG decoder
Elpida
EDD1216AATA
DDR 128Mb
Hynix
HY27US08281A
NAND Flash
128Mb
D[0..7]Control
D[0..15]
A[0..11]
CLK
PLL
Xtal
Audio I2S
DAC
Amp
MS
connector
MS
Data, A ddr,
Control
TS in
TS out
TS from CO FDM/QAM
CI connector
CI buffers
5V
SW
5V
RTC
Xtal
FPGA
Wingman
Wide Colour Gamut
CSC matrix
Axis corrector
RGB Gamma out
EP2C8T144C6N
LVDS IC
RGB 4+4+4+5(ctrl)
RGB 4+4+4+5(ctrl)
TTL 30+4
3-TO-1 HDMI
SWITCH
QFP80
LVDS (12)
P
A
N
E
L
HDMI 1
HDMI 3
HDMI 2
UFE-3
(Analog/COFDM/QAM)
Serial flash
EPCS4SI8N
Ctrl[0..3]
Clk 20.25Conf_doneI2 CResetQ
All manuals and user guides at all-guides.com
all-guides.com

Sony KDL-32S3000 Specifications

General

Audio system	B/G, D/K: R1-R12, R21-R69, I: UHF B21-B69, L: F2-F10, B-Q, F21-F69, NICAM
On Screen Display (OSD)	Yes
Headphone outputs	1
HDMI ports quantity	3
SCART ports quantity	2
Response time	8 ms
Display diagonal	32 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	149 W

Weight and Dimensions

Depth (with stand)	214 mm
Width (with stand)	790 mm
Height (with stand)	581 mm
Weight (with stand)	16500 g
Depth (without stand)	100 mm
Height (without stand)	530 mm
