38

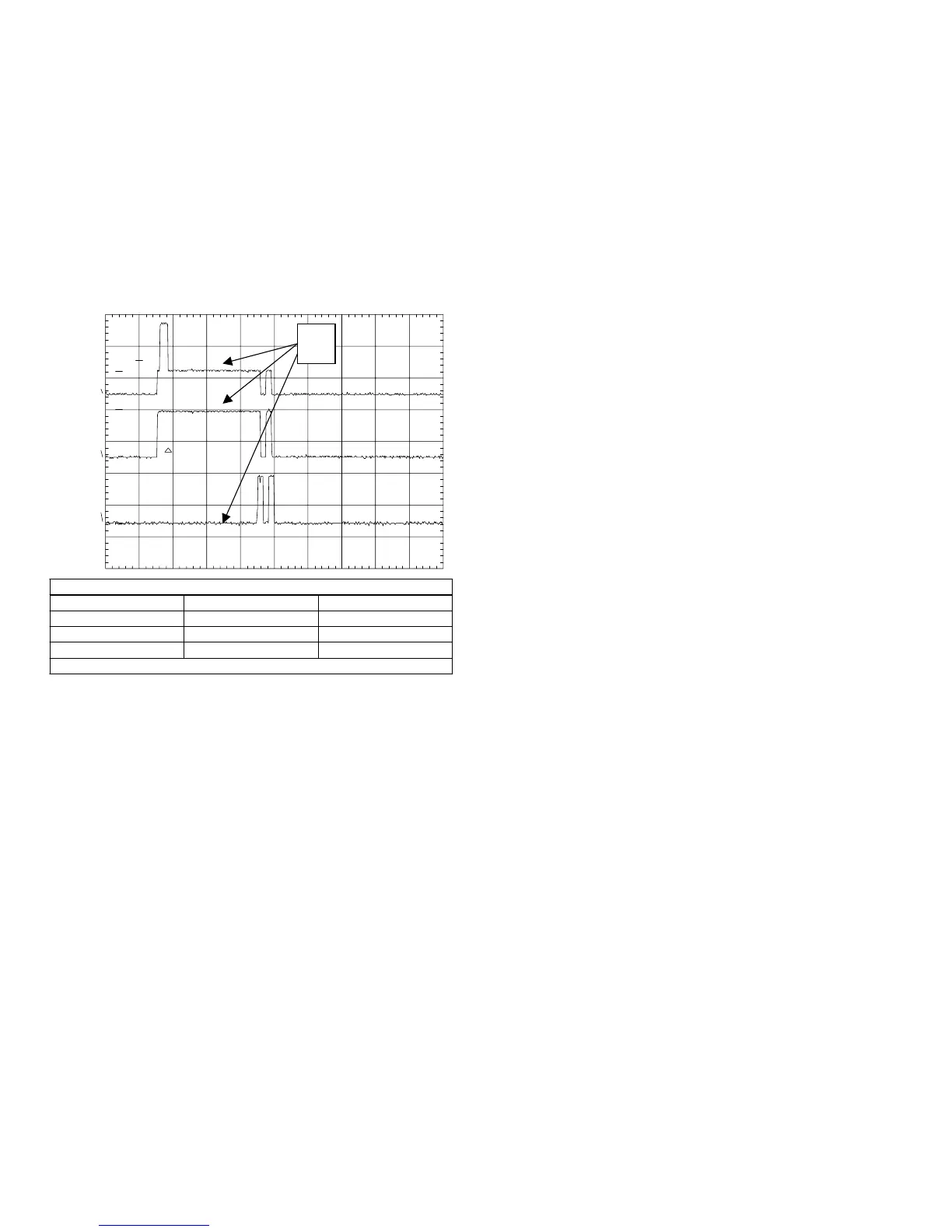

Vertical Timing Signals - 2
Name Location Voltage
V3A Imager IC201/pin 2 22Vp-p
V3B Imager IC201/pin 3 7Vp-p
V4 Imager IC201/pin 1 7Vp-p
Time Base = 20 usec/div
CH1!10.0 V=
CH2!5.00 V=
CH3!5.00 V~ CHP MTB20.0us- 1.86dv ch1+
1
2
3
T
V3A
V3B
V4
0V
