MVC-FD80/90/95 DISASSEMBLY 1
3/7/01
4DSC1

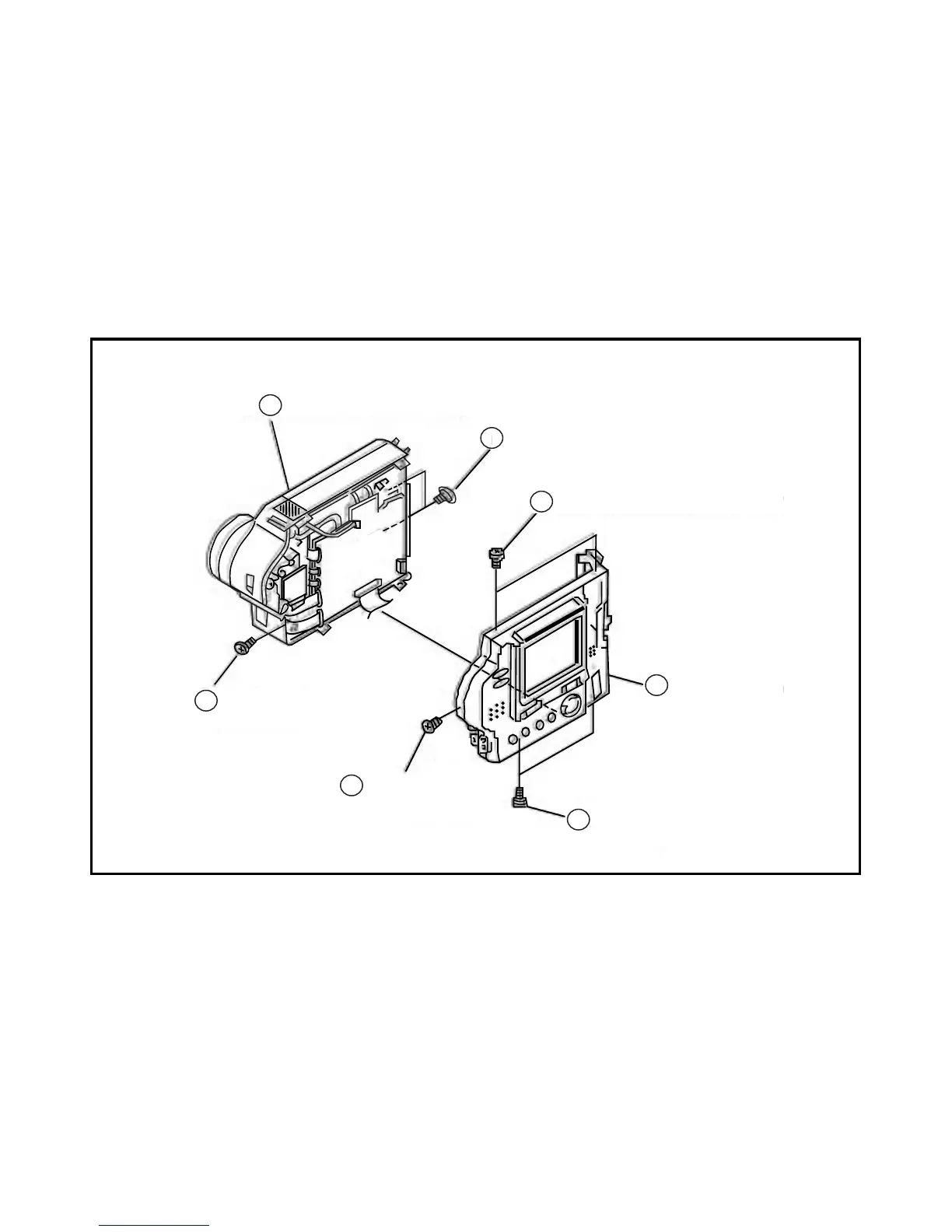

Cabinet (front)
Two screws (M2x4),
Two screws (M2x4)
Cabinet (rear)
Two screws (M2x4),
Screw (M2x4),
Screw (M2x4),
