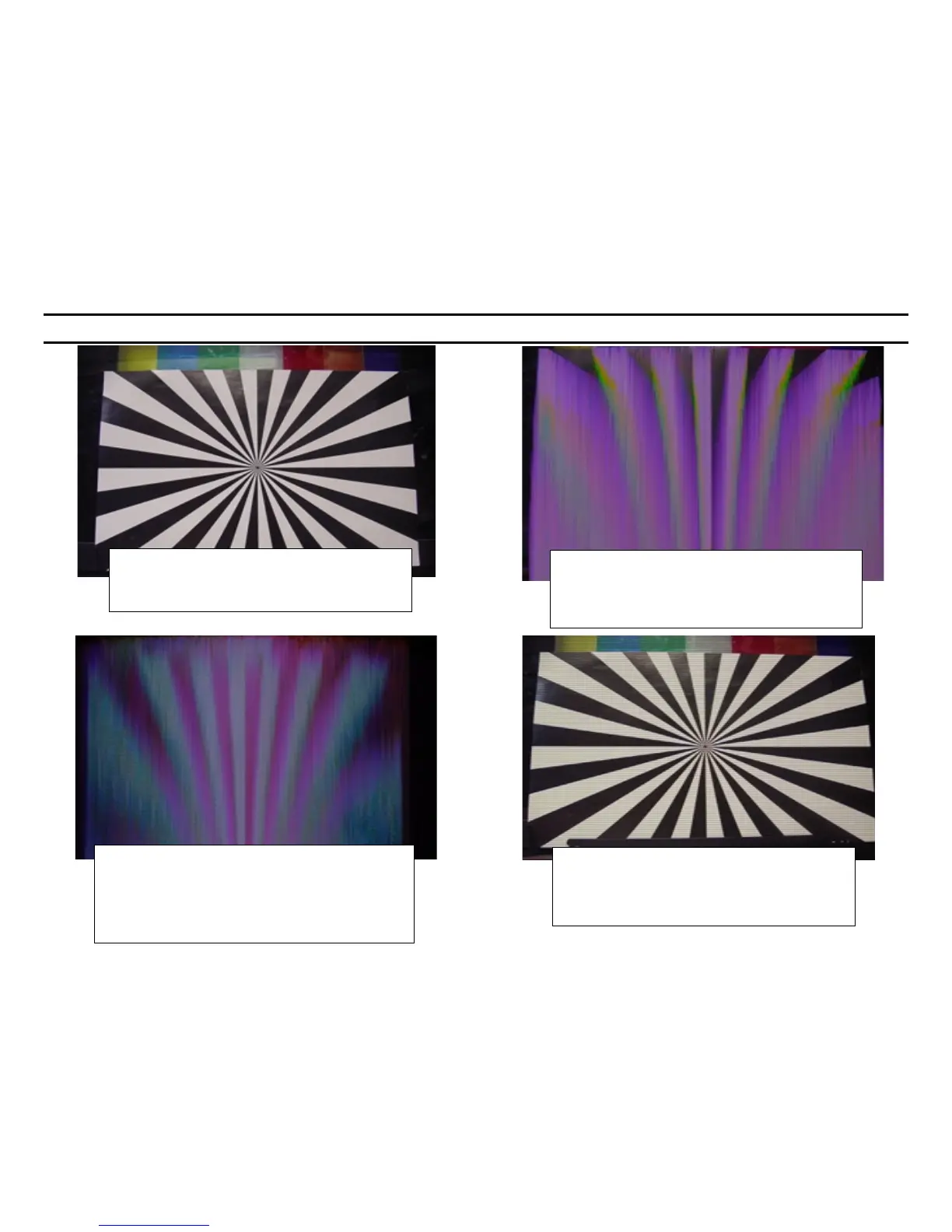

Missing Camera Timing Signals
Normal picture
of a B and W star chart used in
camcorder focus adjustments. The Color bars
are at the top background.
Missing V2 Timing signal to imager/pin 4
Description: Total loss of vertical signal transfer.
Only the last line is output because the horizontal
timing pulses are present.
Missing V3A Timing signal to imager/pin2
Description: Some vertical lines were not
transferred out of the imager (missing). This
causes black lines to appear in the picture.
Missing V1A Timing signal to imager/pin 5
Description: Total loss of vertical signal transfer.
Only the last line is output because the horizontal
timing pulses are present. The picture consists of
purple, dark red (crimson) and black lines
