Sony MDS-S40 - Printed Wiring Board - MAIN Board

MDS-S40
– 55 –
– 56 –
IC301 B-10
IC351 A-10
IC381 C-10
IC386 D-10
IC401 A-2
IC406 B-2
IC411 B-4
IC421 D-4
IC441 B-9
IC501 C-7
IC601 D-9
IC611 D-9
Q191 D-9
Q291 D-9
Q390 D-4
Q441 B-9
Q442 B-9
Q911 A-1
Ref. No. LocationRef. No. Location
D390 C-4
D391 C-4
D401 B-1
D402 B-1
D403 B-1
D404 B-1
D406 C-2
D408 B-1
D409 C-2
D411 D-2
D412 D-2
D421 D-2
D422 D-3
D431 D-1
D432 D-1
D433 D-2
D461 D-2
D462 D-2
D466 D-2
D467 D-2
• Semiconductor Location

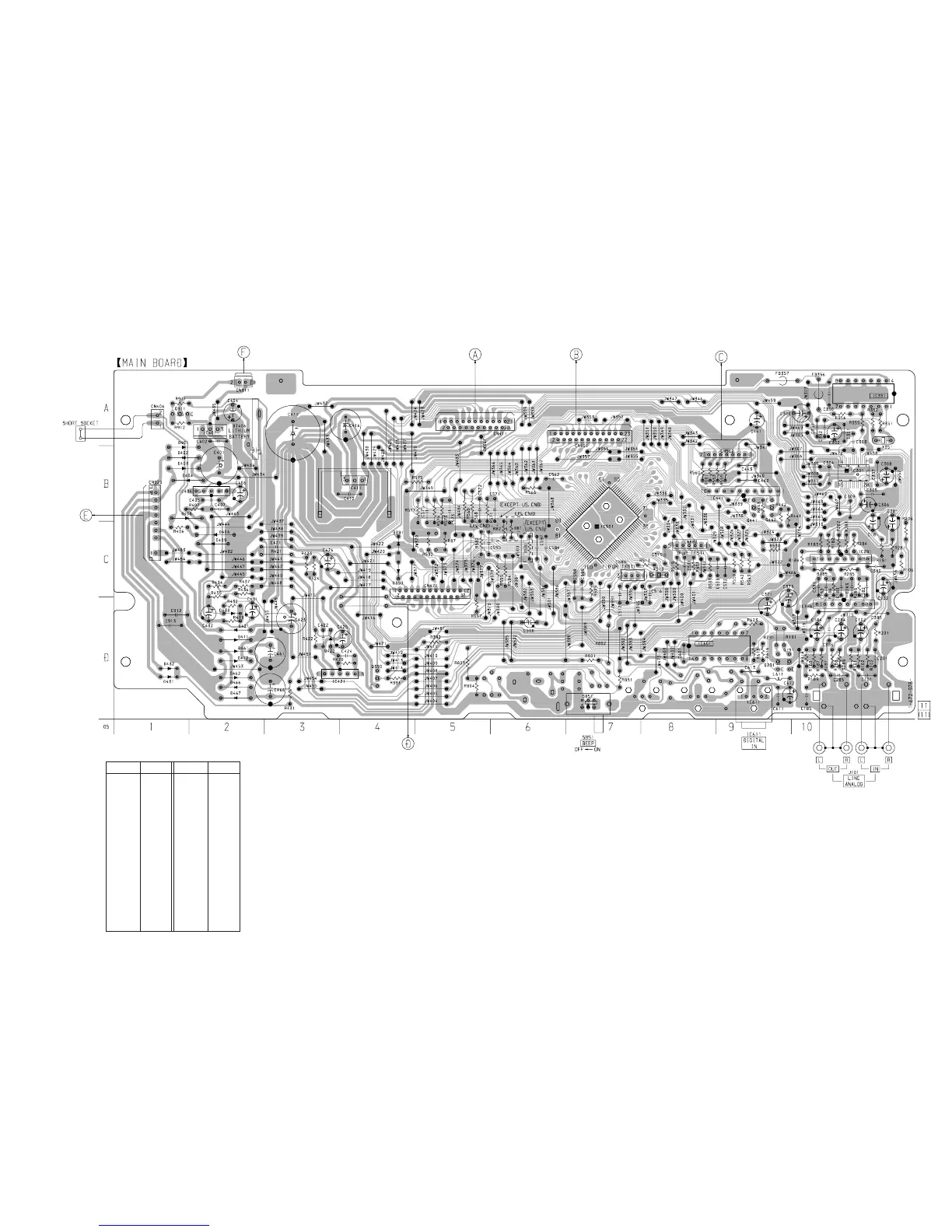

6-11. PRINTED WIRING BOARD – MAIN Board – • See page 41 for Circuit Boards Location.
(Page 54)
(Page 54)
(Page 44)
(Page 44)
(Page 49)
(Page 61)
