Sony MDS-S40 - Schematic Diagram - PANEL Board

MDS-S40
– 63 –
– 64 –

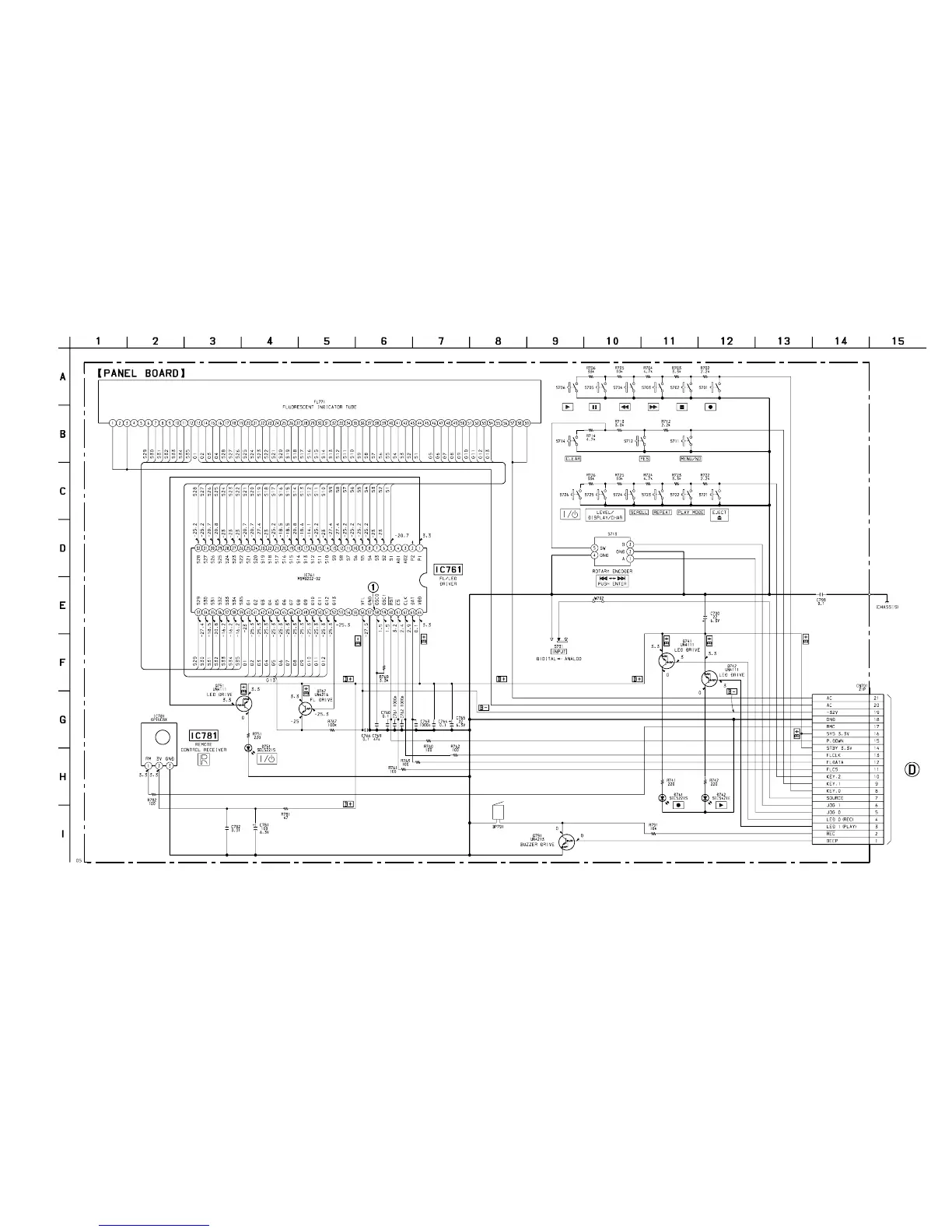

6-15. SCHEMATIC DIAGRAM – PANEL Board – • See page 65 for Waveform.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : STOP
(Page 57)
