Sony MDX-C670RDS - Disassembly Procedures; Front Panel Disassembly Steps

– 7 –

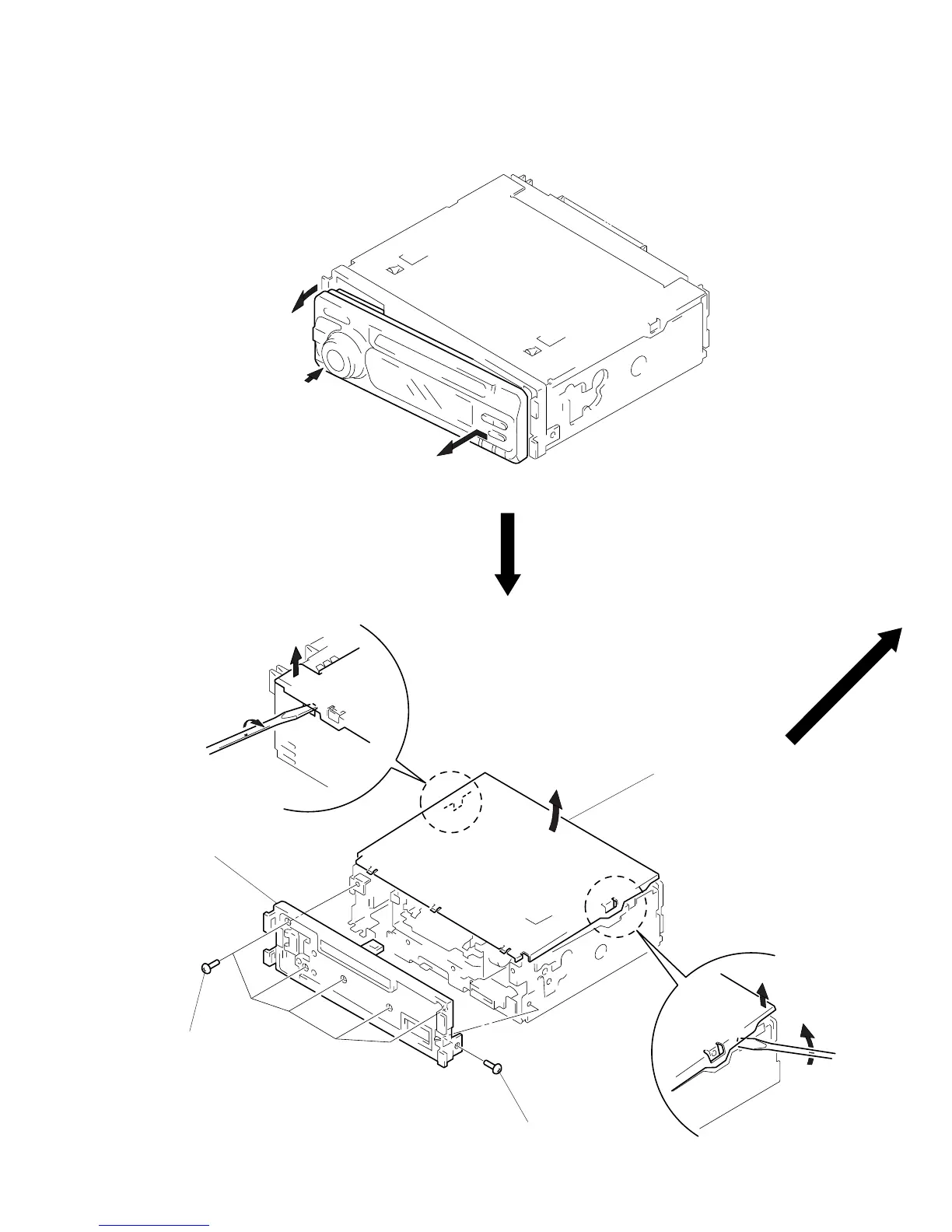

Note: Follow the disassembly procedure in the numerical order given.
FRONT PANEL
SECTION 3
DISASSEMBLY
COVER ASS’Y, PANEL (SUB) ASS’Y
1
Push the button (release).
2
3
Remove the front panel of the arrow.
1
2 cover ass’y
1
3 screw
(PTT2.6 × 6)
3 five screws
(PTT2.6 × 6)
4 panel (sub) ass’y
