– 8 –

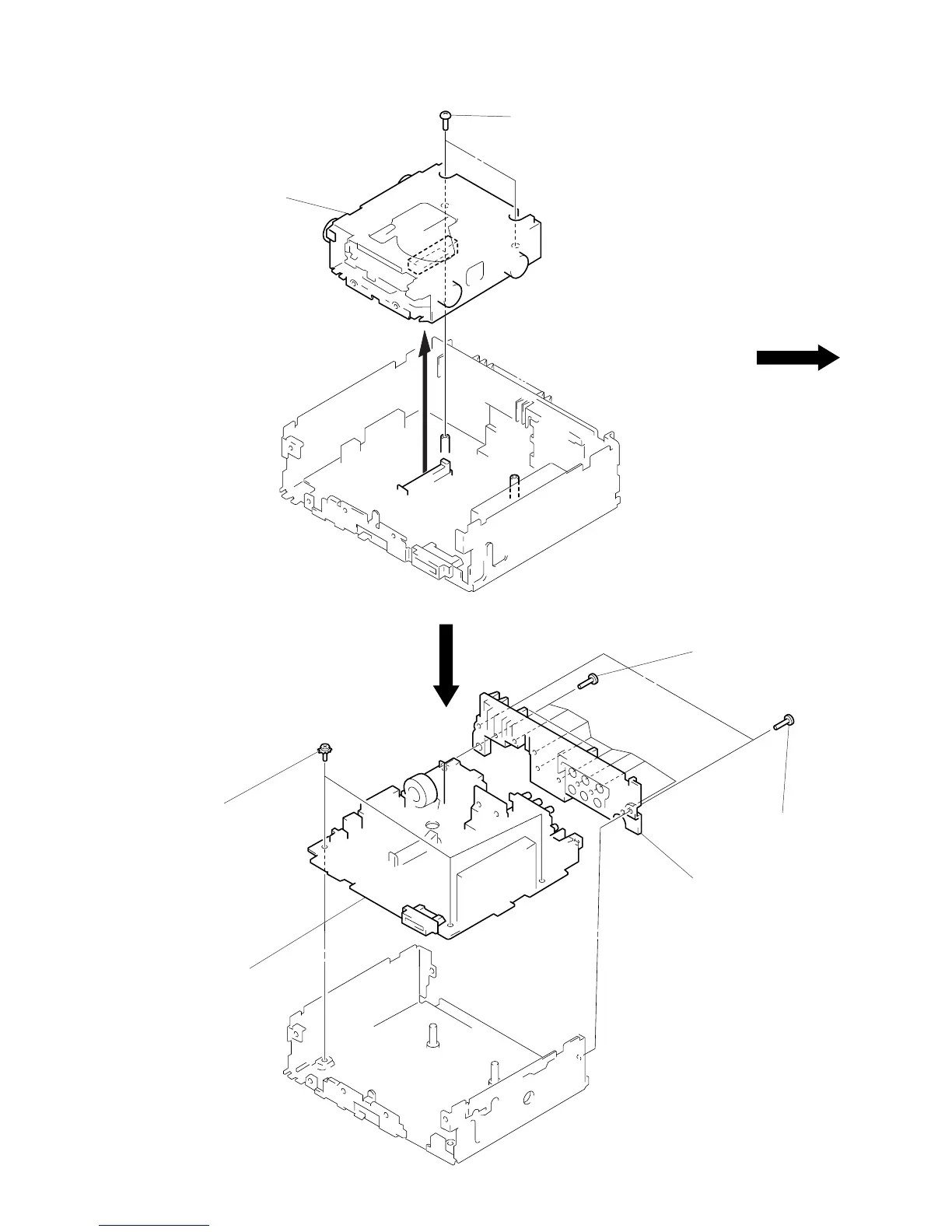

MECHANISM DECK (MG-164K-138)
MAIN BOARD
2
mechanism deck
(MG-164K-138)
1
two screws
(PTT2.6
×
4)
1
two screws
(PTT2.6
×
8)
1
eight screws
(PTT2.6
×
8)
2
heat sink
4
main board
3
three screws
(PTT2.6
×
6) (ground point)
