Sony MDX-C670RDS - Servo Board and Float Block Disassembly

– 9 –

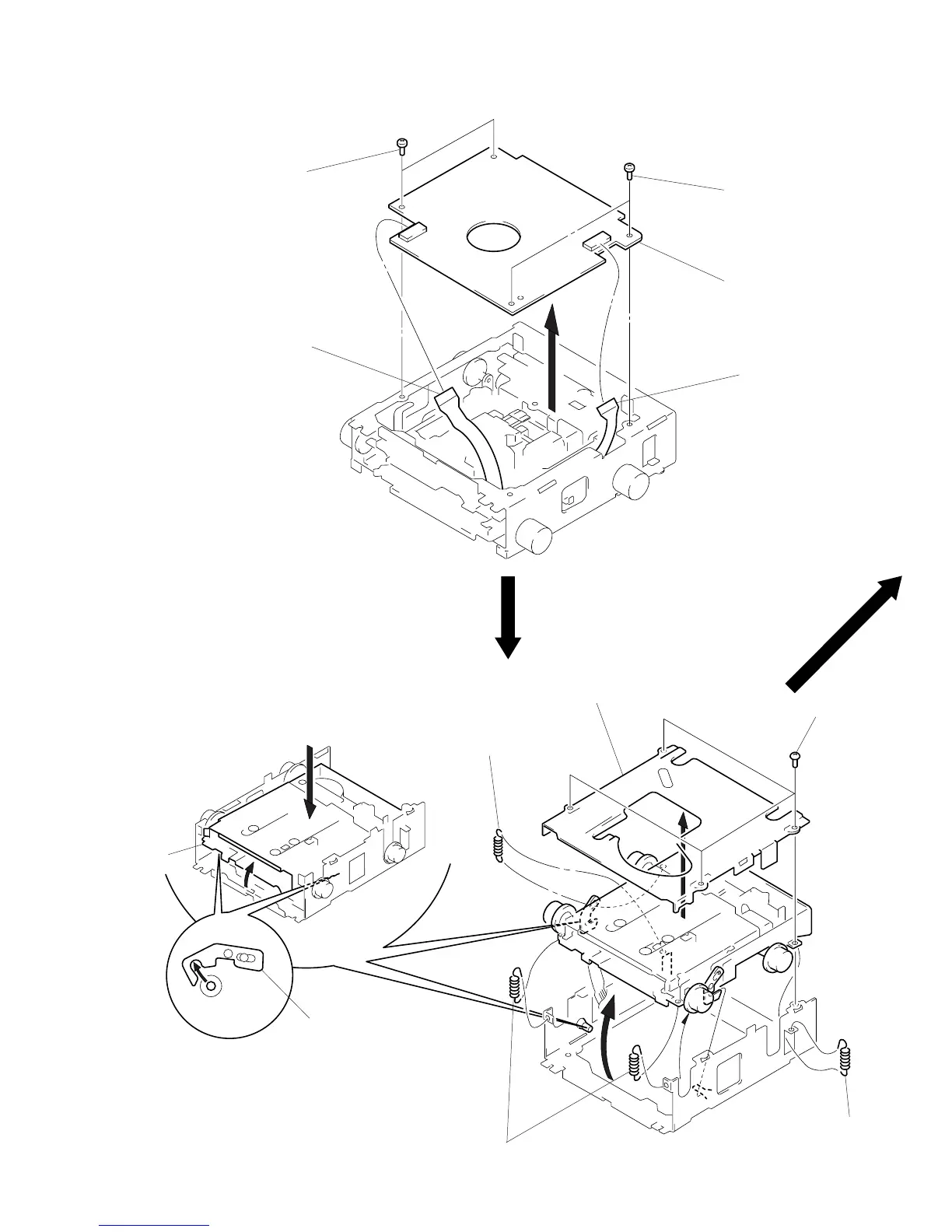

SERVO BOARD
4 servo board
3 two screws
(BVTT2 × 4)
3 two screws
(BVTT2 × 4)
2 flexible board
(CN103)
1 sensor flexible board
(CN102)
FLOAT BLOCK
1 four screws
(BVTT2 × 4)
2 MD cover ass’y
3 spring (FL2)
3 spring (FL2)
4 two springs (FL)
Release of the lock.
lever (lock R)
lever (lock L)
float block
A
5 Pushing an arrow A part, raise
the float block up ward at the
front to release a lock.
