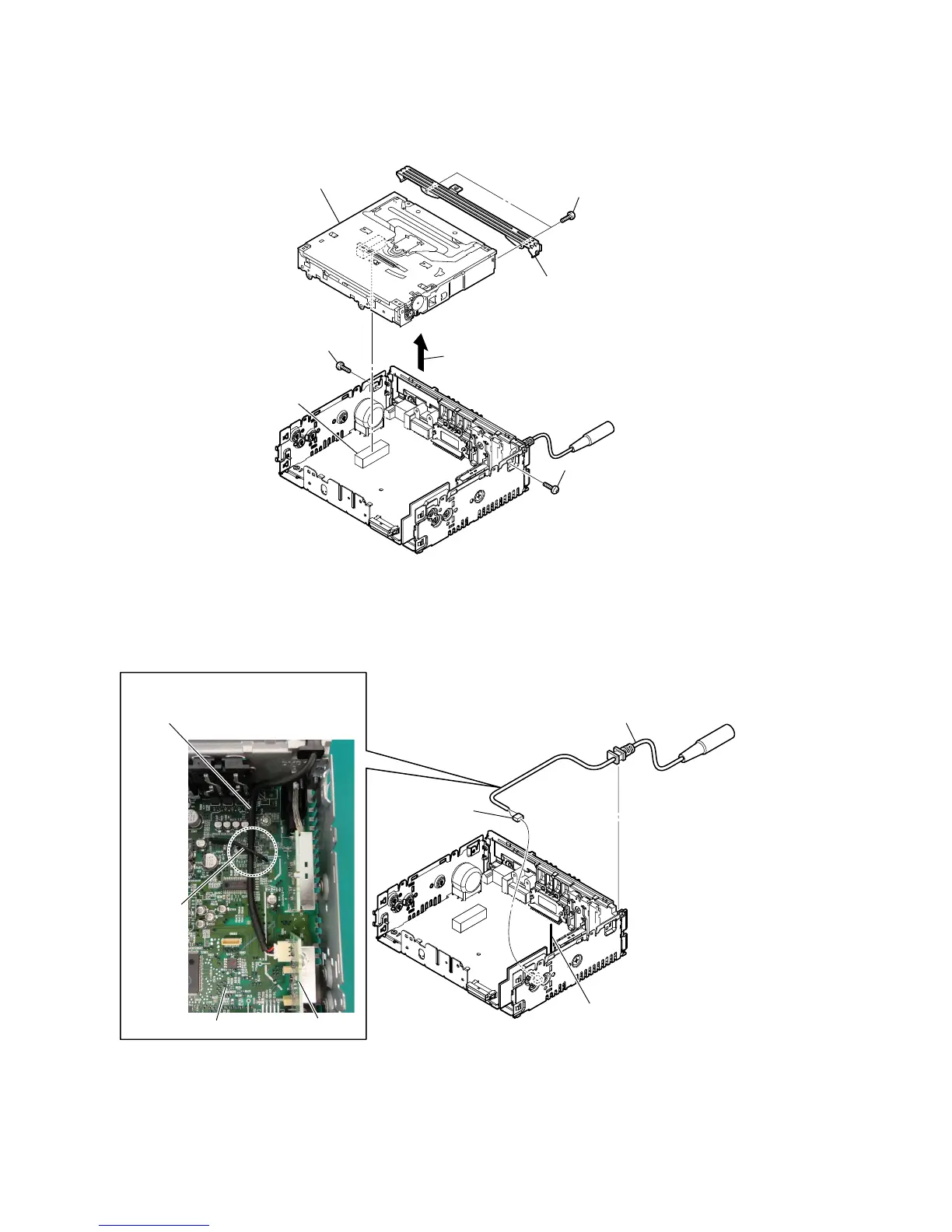

3-4. CD MECHANISM DECK (MG-101CA-188)
3 connector
( CN700 )
1 screw
(PTT2.6 u 6)
1 screw
(PTT2.6 u 6)
2 Lift up the CD mechanism deck block.
6 CD mechanism deck
(MG-101CA-188)
4 two screws
(PTT2.6 u 4)
5 bracket (CD)
3-5. CONNECTION CABLE (MIC) (MJ1)
MAIN board
BT board
lead pin
2 connector
(CN1002)
1 Remove the connection cable (MIC)
from the lead pin.
3 connection cable (MIC)
(MJ1)
connection cable (MIC)
(MJ1)
