MEX-BT4100E/BT4100P/BT4100U/BT4150U

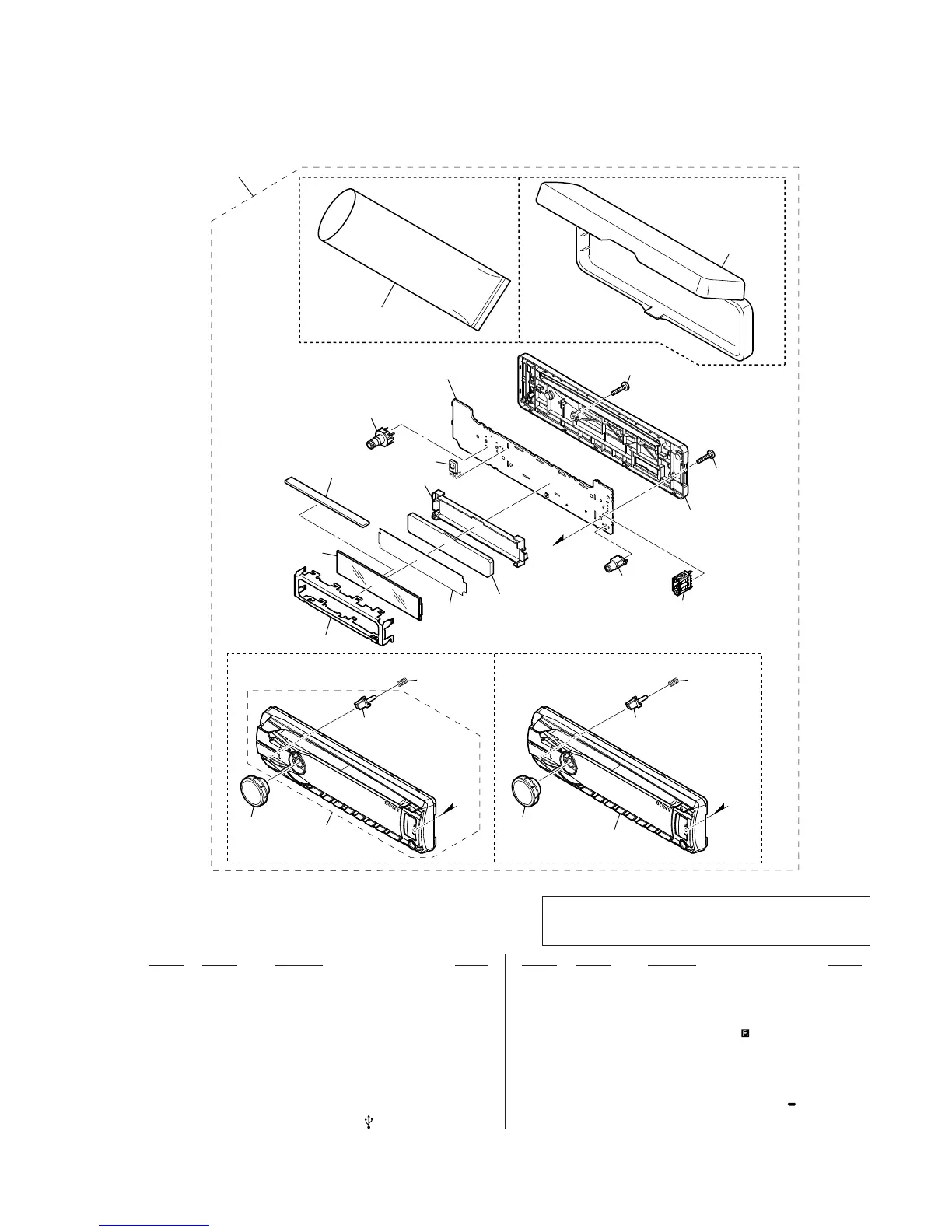

6-2. FRONT PANEL SECTION
51 X-2585-229-1 PANEL (SV) ASSY, FRONT (BT4100P)
52 X-2581-844-2 KNOB (VOL) (SV) ASSY
53 4-421-887-01 BUTTON (RELEASE)
54 4-447-770-01 SPRING (RELEASE)
55 4-278-080-11 ILLUMINATOR (LCD)
56 4-290-177-01 SCREW (+B P-TITE M2)
57 4-421-879-01 PANEL, BACK
58 X-2187-544-5 CASE ASSY (BT4100E/BT4100U/BT4150U)
CCB1 1-780-968-11 CONDUCTIVE BOARD, CONNECTION
CN971 1-822-798-11 USB CONNECTOR ( )
FP1 A-1890-760-A PANEL OVERALL ASSY, FRONT (BT4100U)
FP1 A-1890-761-A PANEL OVERALL ASSY, FRONT (BT4100P)
FP1 A-1890-762-A PANEL OVERALL ASSY, FRONT (BT4100E)
FP1 A-1890-763-A PANEL OVERALL ASSY, FRONT (BT4150U)
IC902 6-600-806-01 IC PNJ4813M01S0 (
)
J901 1-842-936-12 JACK (SMALL TYPE) (DIA. 3.5) (AUX)
LCD901 1-811-485-11 DISPLAY PANEL, LIQUID CRYSTAL
RE901 1-487-023-22 ROTARY ENCODER
(PUSH ENTER/MENU/ APP (VOLUME))
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: Refer to the servicing notes “NOTE FOR REPLACEMENT
OF THE USB CONNECTOR (CN971) AND THE AUX
JACK (J901)” on page 6, if replacing CN971 and J901.
CN971
FP1
58
not supplied
not supplied
not supplied
not supplied
not supplied
(KEY board)
55
J901
G
G
G
not supplied
(for FRONT PANEL)
(BT4100P)
(BT4100P) (BT4100E/BT4100U/BT4150U)
RE901
51
52
54 54
53
52
53
(BT4100E/BT4100U/BT4150U)
LCD901
IC902
57
56
56
CCB1
