Sony MEX-BT4100E - 6 Exploded Views; Main Section

48
MEX-BT4100E/BT4100P/BT4100U/BT4150U
SECTION 6
EXPLODED VIEWS
1 X-2581-176-3 PANEL ASSY, SUB
2 3-042-244-11 SCREW (T)
3 A-1890-750-A MAIN BOARD, COMPLETE (Including BT board)
(BT4100U)
3 A-1890-751-A MAIN BOARD, COMPLETE (Including BT board)
(BT4100P)
3 A-1890-752-A MAIN BOARD, COMPLETE (Including BT board)
(BT4100E/BT4150U: EA)
3 A-1890-753-A MAIN BOARD, COMPLETE (Including BT board)
(BT4150U: E, MX)
4 X-2547-583-4 LOCK ASSY (T)
5 4-410-504-01 SCREW (+PTT 2.6X6), GROUND POINT
6 A-1888-219-A BT BOARD, COMPLETE (Included in MAIN board)
CN01 A-1878-198-A TUX-DSP02 (TUNER UNIT)
FU1 1-523-227-11 MINI FUSE (BLADE TYPE) (10 A/32 V)
MJ1 1-846-310-11 CABLE, CONNECTION (MIC) (MIC IN)
PW1 1-846-033-11 CONNECTION CABLE (ISO) (POWER)
(BT4100E/BT4100U)
PW1 1-846-037-11 CONNECTION CABLE, AUTOMOBILE (POWER)
(BT4100P/BT4150U)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-790-01 SCREW +PTT 2.6X4 (S)
#3 7-685-793-01 SCREW +PTT 2.6X8 (S)
#4 7-685-794-01 SCREW +PTT 2.6X10 (S)
#5 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
CND : Canadian model
EA : Saudi Arabia model

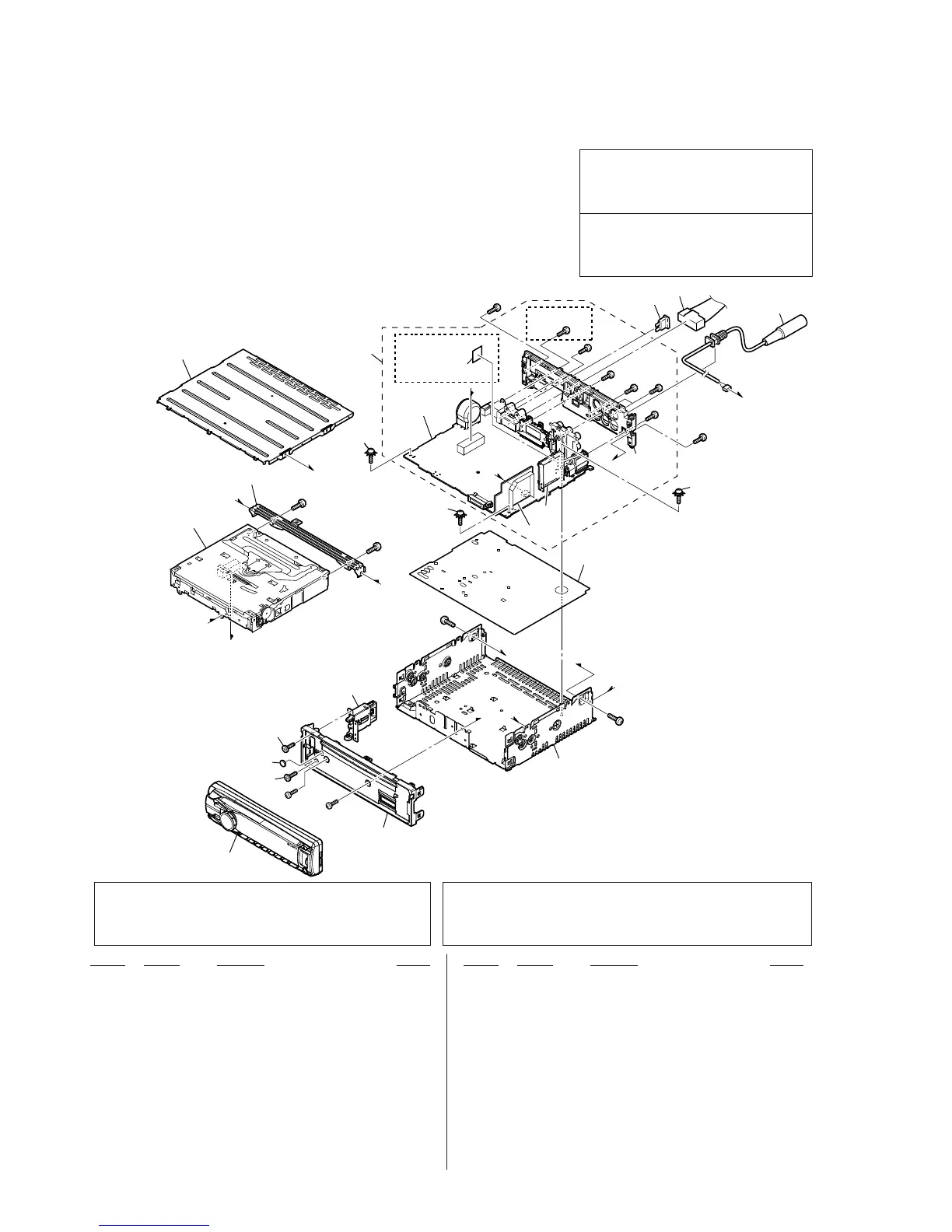

6-1. MAIN SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
MJ1
front panel section
#1
B
2
4
1
2
5
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#2
CD mechanism deck section
(MG-101CA-188)
A
C
#1
#1
#1
B
C
D
D
F
E
F
(BT4100P)
PW1
A
FU1
#3
#3
5
5
5
3
MAIN board
#5
#4
#4
#4
#4
#5
E
CN01
6
G
G
not supplied
(BT4100P)
not
supplied
Note 1: When the complete MAIN board is replaced, the destination
setting is necessary. Refer to “NOTE THE MAIN BOARD
OR SYSTEM CONTROLLER (IC501) REPLACING” on
page 4.
Note 2: When the complete BT board or complete MAIN board (including
BT board) is replaced, it is necessary to confi rm operation. Refer
to “BLUETOOTH FUNCTION CHECKING METHOD USING
A CELLULAR PHONE” on page 7.
Ver. 1.1
MX : Mexican model
RU : Russian model
