MEX-BT4100E/BT4100P/BT4100U/BT4150U
MEX-BT4100E/BT4100P/BT4100U/BT4150U
3030
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specifi ed.
•
f
: Internal component.
• C : Panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• Power voltages is dc 14.4V and fed with regulated dc
power supply from ACC and BATT cords.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark
: TUNER (FM)
< > : CD PLAY
*
: Impossible to measure
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
f : TUNER
J : CD
d : USB
h : SIRIUS/XM
E : AUX
a : Bluetooth
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : Parts extracted from the conductor side.
•
f
: Internal component.
• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
Note:
The components identi-
fi ed by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specifi ed.
Note:
Les composants identifi és
par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par
une pièce portant le nu-
méro spécifi é.
• Indication of transistor.
C
B
These are omitted.
E
Q
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Note 1: When the complete MAIN board is replaced, the destination
setting is necessary. Refer to “NOTE THE MAIN BOARD
OR SYSTEM CONTROLLER (IC501) REPLACING” on
page 4.
Note 2: When the complete BT board or complete MAIN board (in-
cluding BT board) is replaced, it is necessary to confi rm op-
eration. Refer to “BLUETOOTH FUNCTION CHECKING
METHOD USING A CELLULAR PHONE” on page 7.
Note 1: When the complete MAIN board is replaced, the destination
setting is necessary. Refer to “NOTE THE MAIN BOARD
OR SYSTEM CONTROLLER (IC501) REPLACING” on
page 4.
Note 2: When the complete BT board or complete MAIN board (in-
cluding BT board) is replaced, it is necessary to confi rm op-
eration. Refer to “BLUETOOTH FUNCTION CHECKING
METHOD USING A CELLULAR PHONE” on page 7.

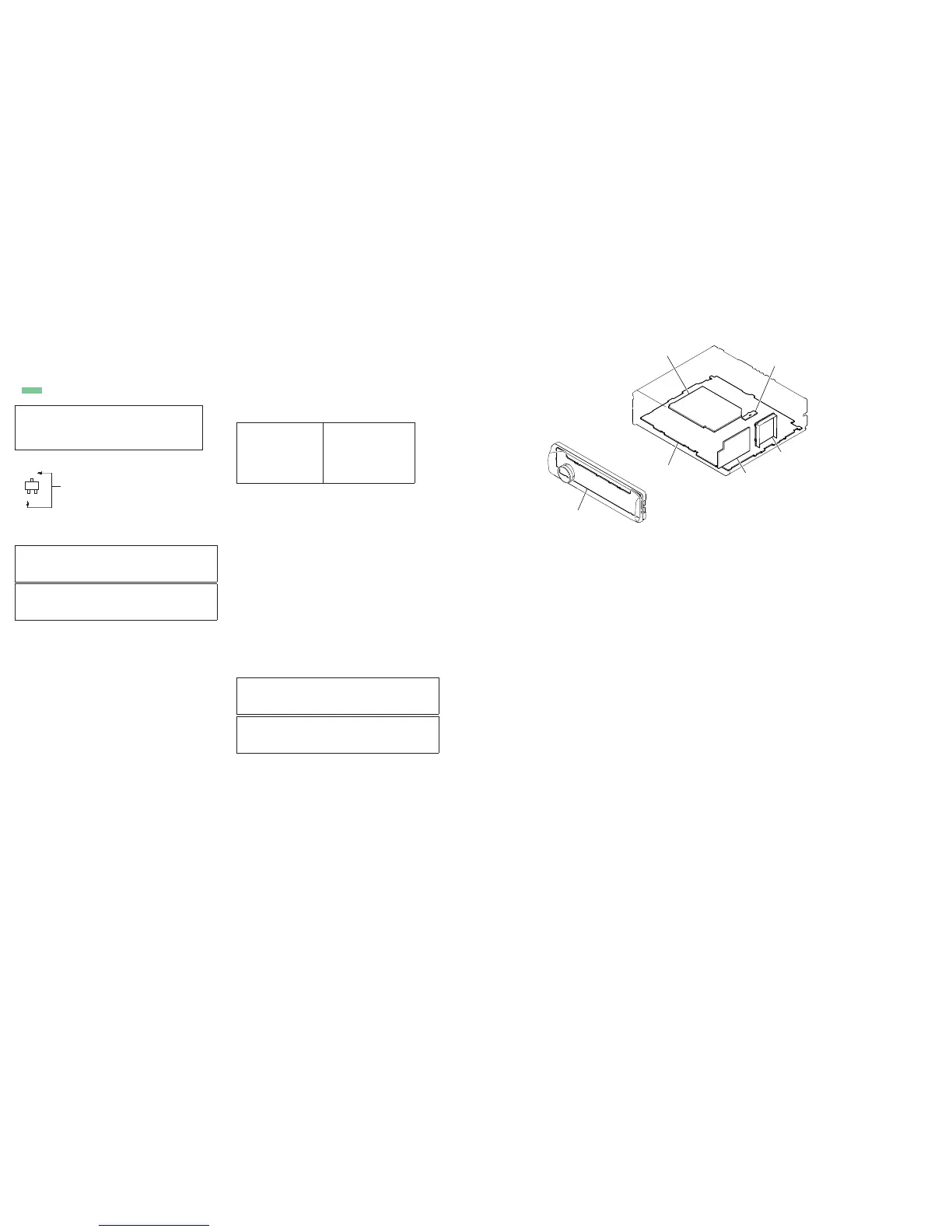

• Circuit Boards Location
MAIN board
SENSOR board
SERVO board
KEY board
– Front panel –
– Main unit –
BT board
TUX-DSP02
(Tuner unit)
• Abbreviation
EA : Saudi Arabia model
MX : Mexican model
Ver. 1.1
