Sony MG110 - Parts Identification; Main Unit

4
Parts Identification
5.1CH/VIDEO (MD)* 5 (28)
AUDIO IN L jack wk (29)
AUDIO IN R jack wj (29)
CD 5 (14, 21)
CD SYNCHRO wh (21, 22)
CLEAR w; (15, 19, 34)
Deck A es (20)
Deck B 0 (20)
DIRECTION ea (20)
DISC ACCESS ql (12, 21)
Display window 4
DISPLAY wd (12, 17, 19, 34)
ENTER qk (11, 15, 18, 22, 26, 28)
FRONT* qd (25)
GAME e; (26, 29)
KEYBOARD INPUT jack ws
(27)
LINK* qg (25)
MENU ea (16, 18)
PHONES jack wa
PLAY MODE wf (14, 22)
PRESET EQ 7 (24)
PRO LOGIC* qs (11, 25)
PUSH OPEN (Front cover) qj
(12)
REAR* qf (25)
REC PAUSE/START wh (21,22)
REPEAT wg (14)
STEREO/MONO wg (19)
SURROUND* qa (25)
SURROUND MODE 8 (25)
TAPE A/B 5 (20)
TIMER SELECT 3 (23, 27)
TIMER SET 3 (11, 23, 26)
TUNER/BAND 5 (18)
VIDEO IN jack wl (29)
VIDEO (MD)** 5 (28)
VOLUME control qh
BUTTON DESCRIPTIONS
Z (deck A) 1
=/1 (power) 2
m (rewind) 6
n N (play) 6
X PAUSE 6
M (fast forward) 6
x (stop) 6
– . (go back) 6
> + (go forward) 6
Z (deck B) 9
* MHC-MG510AV/MG310AV
only
**MHC-MG110 only
The items are arranged in alphabetical order.
Refer to the pages indicated in parentheses ( ) for details.

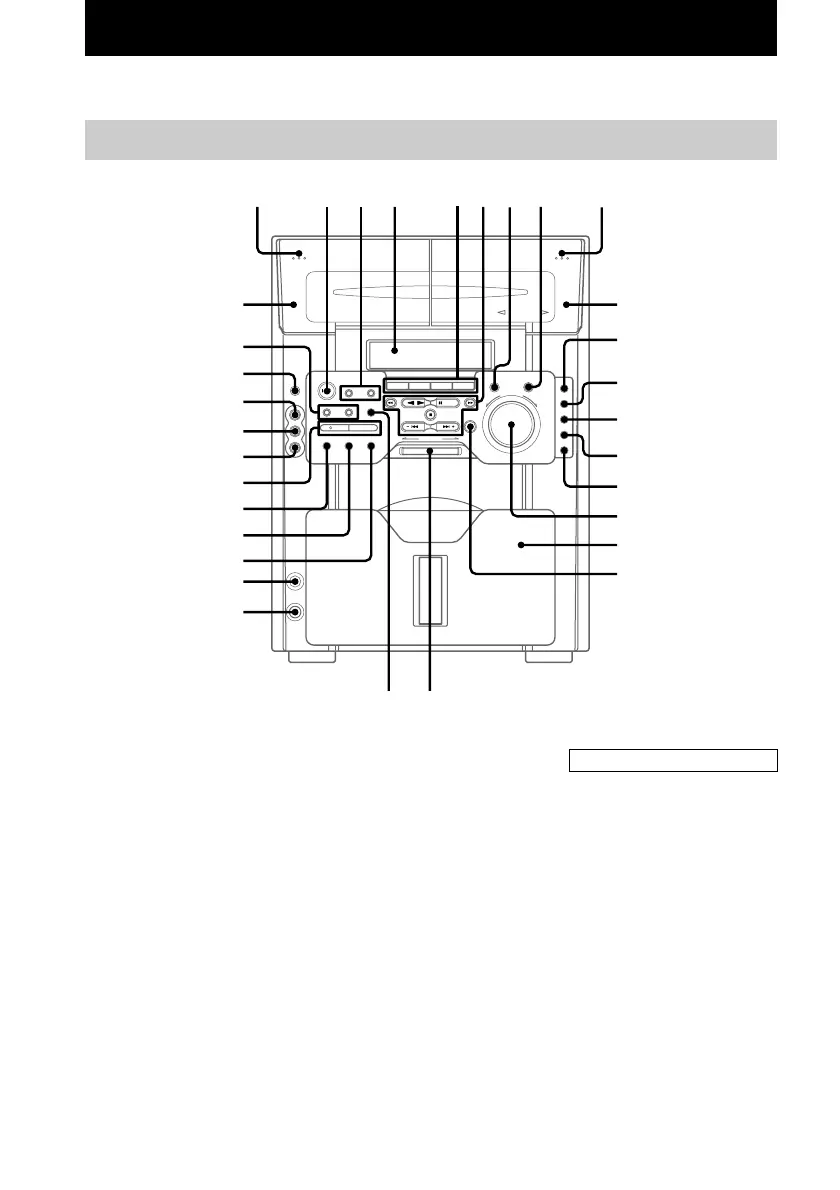

Main unit
