Connecting external
antennas

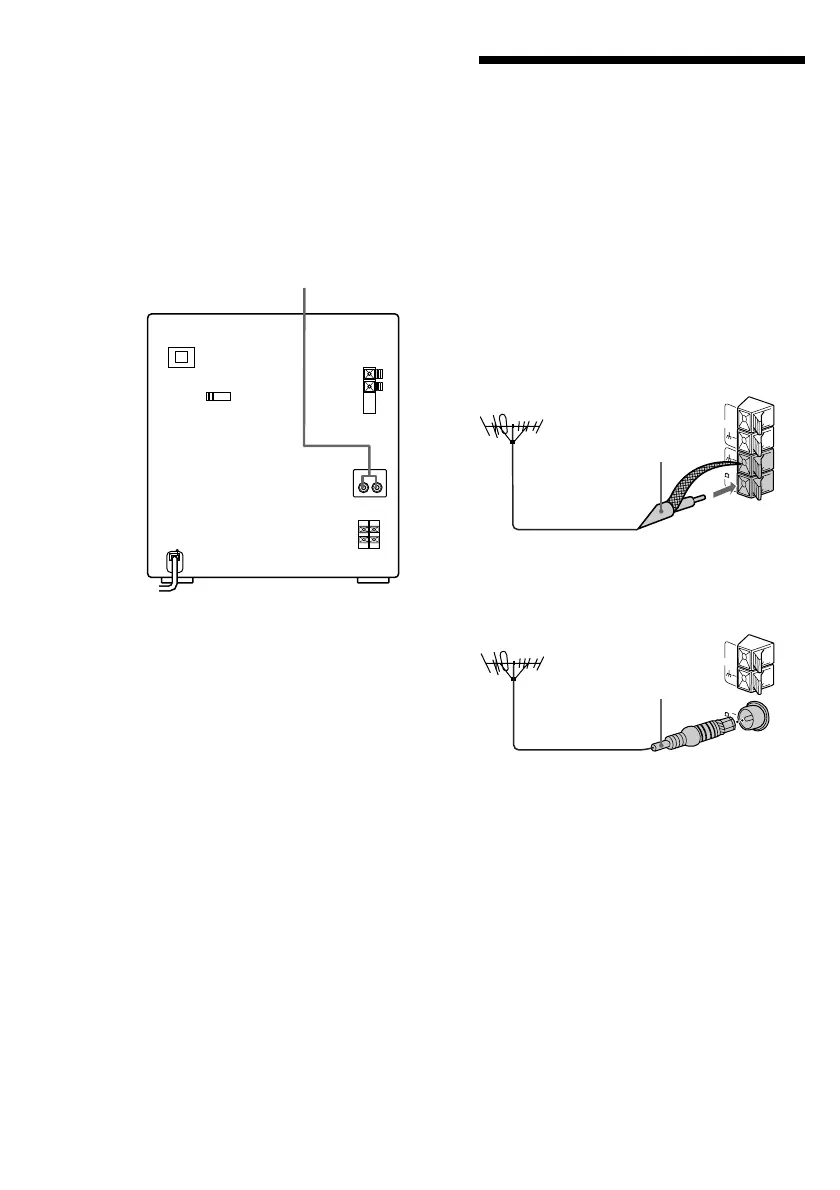

Connect an external antenna to improve the
reception. Refer to the instructions of each
component.
FM antenna
Connect an optional FM external antenna.
You can also use a TV antenna.
Jack type A
Jack type B
IEC standard socket
connector
(not supplied)
75-ohm coaxial cable
(not supplied)
Connecting an MD deck
for listening to music
Make sure to match the color of the plugs and
the connectors. To listen to the sound of the
connected MD deck, press MD.
To the audio output of the
MD deck
Connecting audio components
(continued)
AM
FM
(75 )
AM
FM
(75 )
