AM loop antenna
Extend the FM lead antenna
horizontally

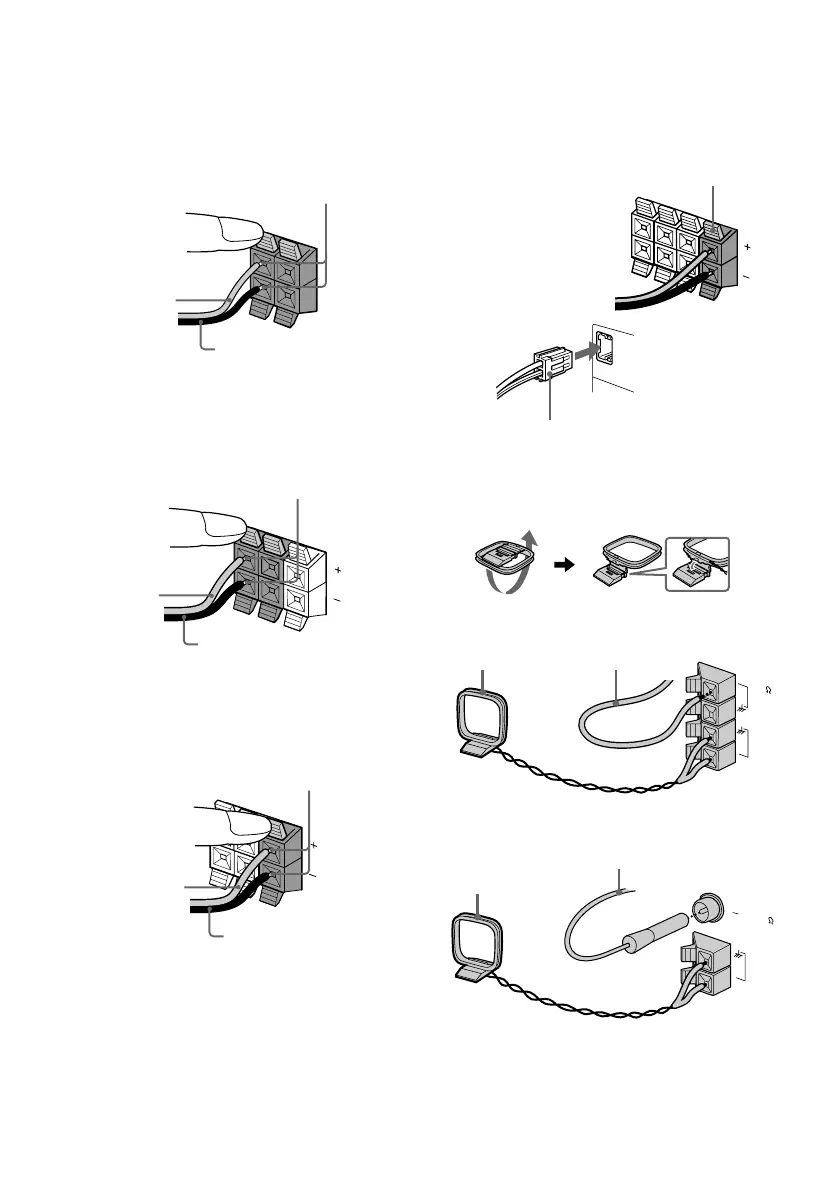

1 Connect the front speakers.
Connect the speaker cords to the FRONT
SPEAKER jacks as shown below.
R
–
L
+
Insert only the stripped portion
Gray/Solid
(3)
Black/Stripe (#)
4 Connect the sub woofer speaker.
(MHC-GX90D and RV800D only)
Connect the speaker cords to the SUB
WOOFER jack and SUB WOOFER
CONTROL jack as shown below.
SUB WOOFER jack
SUB WOOFER CONTROL jack
5 Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.
Jack type A
F
M
7
5
A
M
2 Connect the rear speakers.
(except for MHC-RV600D)
Connect the speaker cords to the REAR
SPEAKER jacks as shown below.
Insert only the stripped portion
+
R
L
Gray/Solid
(3)
Black/Stripe (#)
3 Connect the center speaker.
(except for MHC-RV600D)
Connect the speaker cords to the CENTER
SPEAKER jacks as shown below.
Insert only the stripped portion
+
R
L
AM loop antenna
Extend the FM lead antenna
horizontally
Jack type B (MHC-RV800D only)
FM75
COAXIAL
AM
Gray/Solid
(3)
Black/Stripe (#)
Hooking up the system (continued)
