To attach the speaker pads
Attach the supplied speaker pads to the bottom
of the speakers to stabilize the speakers and
prevent them from slipping.
Notes
• Keep the speaker cords away from the antennas to
prevent noise.
• The type of speakers supplied vary according to the
model you purchased (see “Specifications” on page
71).
• Do not place the rear speakers on top of a TV.*
This may cause distortion of the colors in the TV
screen.
• Be sure to connect both left and right rear
speakers.* Otherwise, the sound will not be heard.
* except for MHC-RV600D
Front
speaker
(L)
Front
speaker
(R)
Rear
speaker
(L)
Rear
speaker
(R)

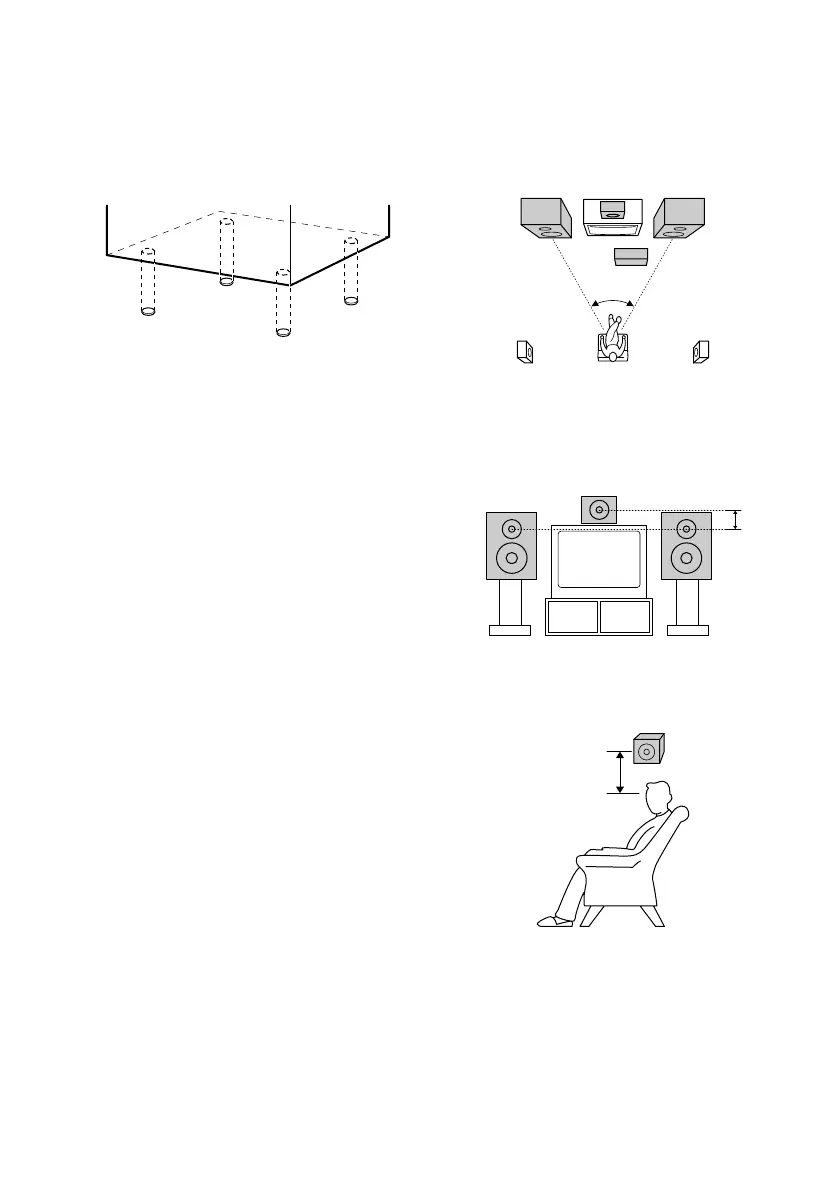

2 Place the center speaker at about the
same height as the front speakers.
Align the center speaker with the front
speakers or place it slightly behind the
front speakers.
3 Place the rear speakers facing each
other at about 60 to 90 cm above your
listening position.
Rear
speaker
60 to 90 cm
Hooking up the system (continued)
Positioning the speakers (except for
MHC-RV600D)
1 Place the front speakers at an angle of
45 degrees from your listening
position.
Center speaker
Sub woofer
To Next Page
