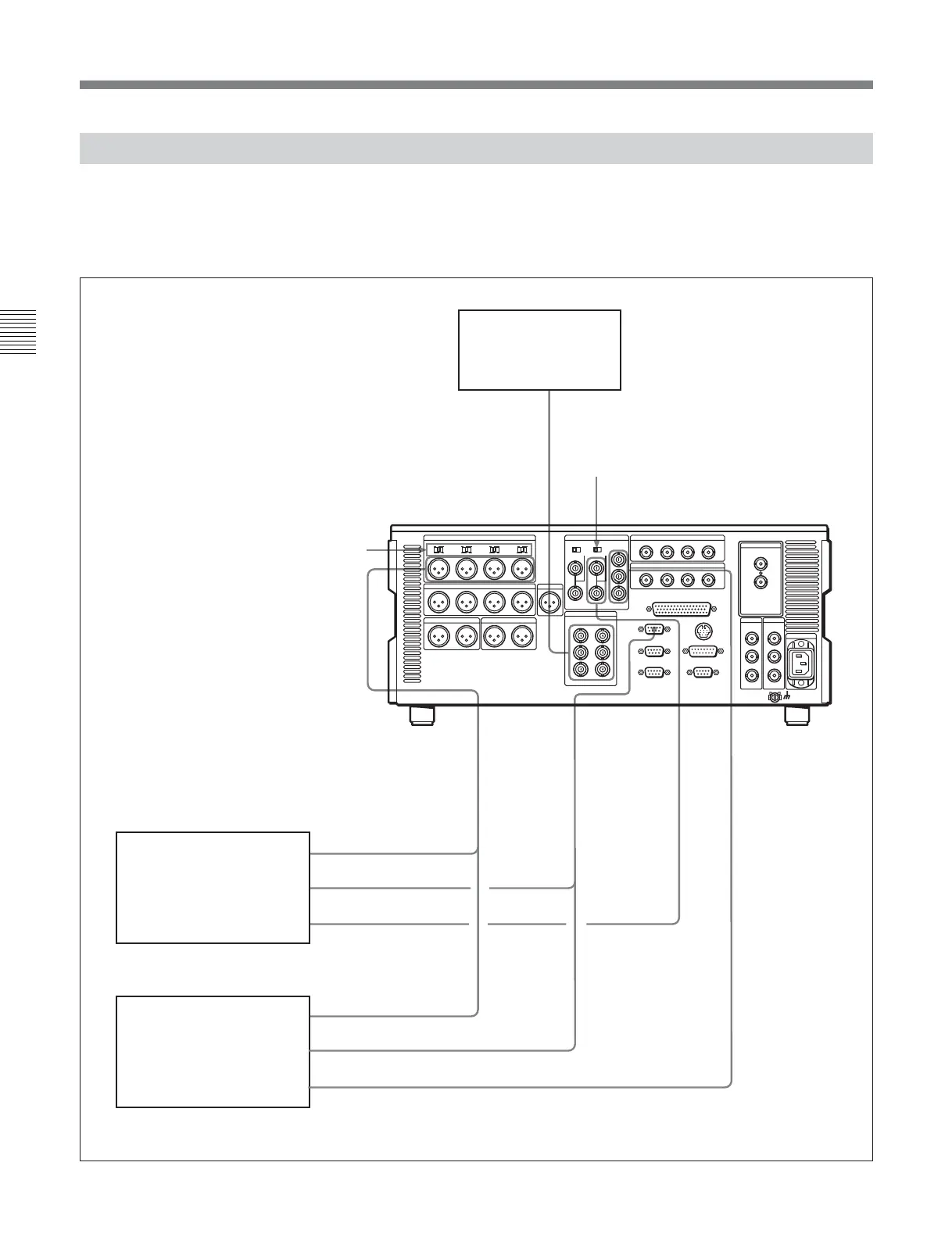

The following example shows the connections with an
analog VTR (a Betacam SP VTR, D2 VTR, 1-inch
VTR, etc.) for recording analog audio and video
signals.
AUDIO OUTPUT
CH1 to CH4
AUDIO OUTPUT
CH1 to CH4
VIDEO OUTPUT
COMPOSITE
VIDEO OUTPUT
COMPONENT
REMOTE (9P)
COMPOSITE
VIDEO INPUT
COMPONENT
VIDEO INPUT
COMPONENT/
COMPOSITE
VIDEO OUTPUT
REMOTE (9P)
AUDIO INPUT
CH1 to CH4
REMOTE 1-IN
(9P)
3-1-2 Connections to Analog Devices
Video monitor
75 Ω termination switch:
Set to OFF when using an analog
composite video signal bridge
connection, and otherwise to ON.
AUDIO INPUT CH1 to CH4 LEVEL switches:
Set according to the analog input level and
the impedance
(see page 2-17)
.
DVR-28/28P/20/20P D2
VTR, BVH-3000/3000PS
1-inch VTR, etc. (player)
BVW-75/70/65/60 series
Betacam SP VTR (player)
3-1 Connections to External Devices
MSW-A2000/A2000P/M2000/M2000P/2000/
M2000E/M2000EP
a)
a) The figure shows the MSW-M2000/ M2000P.
