5-1. CAMERA SECTION ADJUSTMENT
1-1. PREPARATIONS BEFORE ADJUSTMENT
SECTION 5
ADJUSTMENTS
MVC-FD73
+
–
BATTERY
TERMINAL
PK-46 BOARD
FU-134
BOARD
FLASH UNIT
RL-53
BOARD
CN907 CN910
CN401
LENS UNIT
CN101
CN401
CN602
CN501
CN502
CN603
CN901
CN851
CN602
CN601
CN012
CN013
CN011
CN802
CN901
CN051
FC-69
BOARD
2.5inch LCD
PANEL
BACK LIGHT
CPC-9
(J-6082-393-B)
RM-95
Adjustment Remote
Commander
FDD UNIT
Extension cable
(J-6082-427-A)
Refer to page 5
[How to connect the extension cable]
CD-227
BOARD
AC IN
BC-V615
1-1-1. Preparations
(See original service manual page 5-3.)
: Added point
Note 1: Refer to “2. Disassembly” for details of how to remove
the cabinet and the respective boards.
Note 2: Removal of the lens block and FC-69 board is not
necessary if only adjustments are to be made.

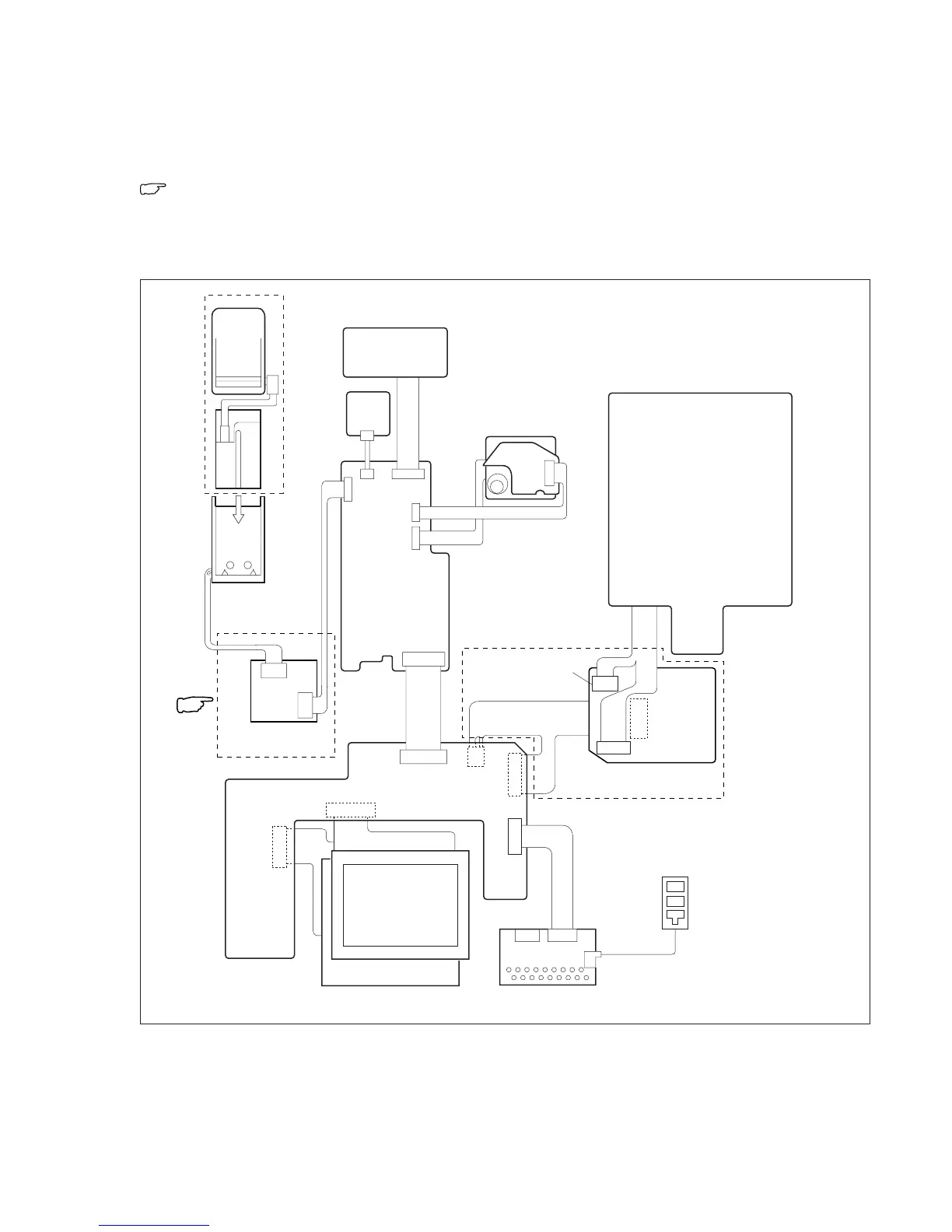

1) Connect the adjustment equipment as shown in Fig. 5-1-1.
Fig. 5-1-1.
Note 3: In changing data, wait for more than
5 seconds after the set was turned on,
then change the data.
