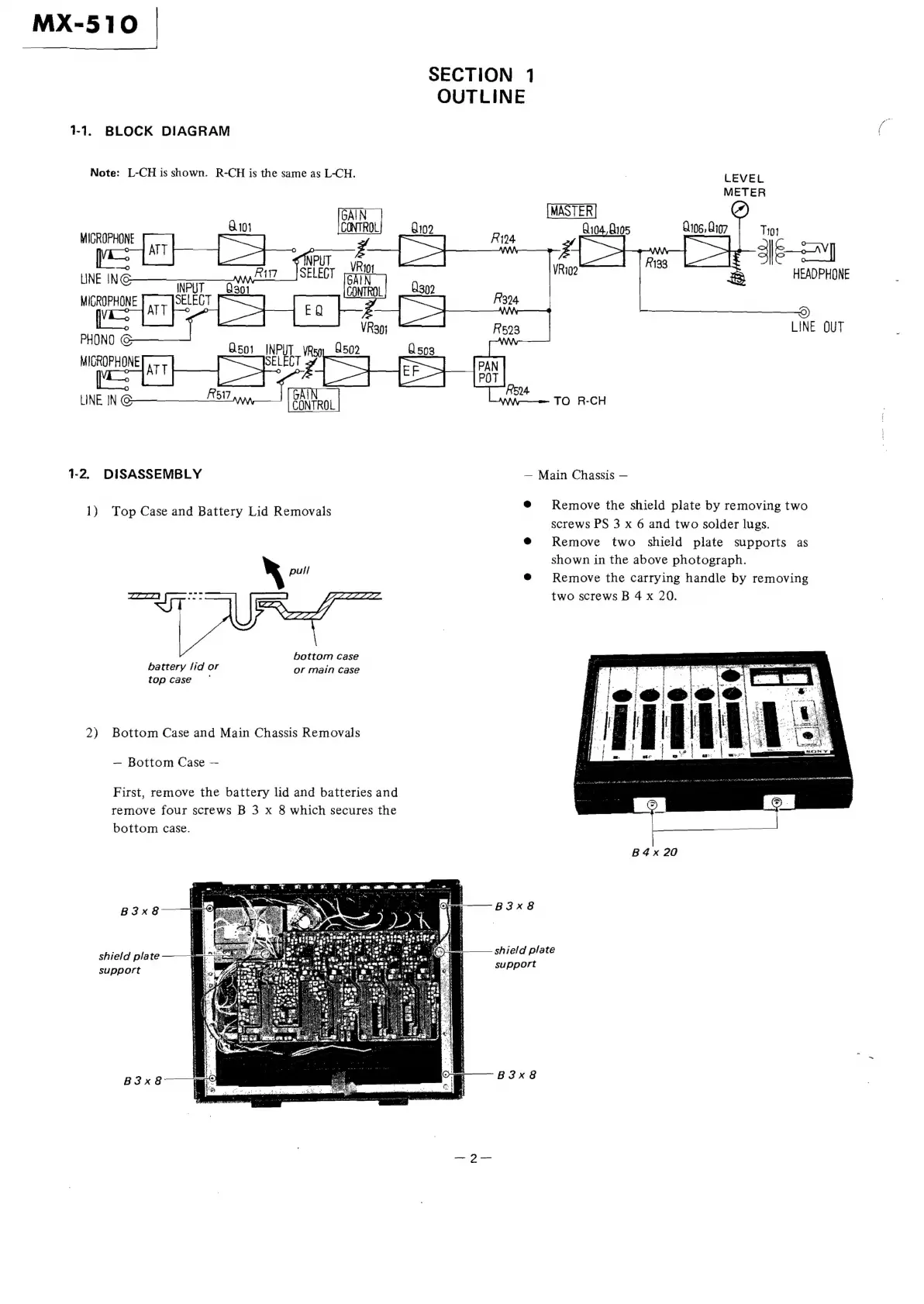

Sony MX-510 - Block Diagram

MX-510
SECTION 1
OUTLINE
1-1. BLOCK DIAGRAM
Note: L-CH is shown. R-CH is the same as L-CH. ; LEVEL
GAIN MASTER
Q101 CONTROL 102
MICROPHONE fart] R124
z(t} —} >} — ATT ee . Zz
| . ee NPUT VRiot
Riv? | SELECT 5
INE ING
UNE IN INPUT — Q301 A
SE
MICROPHONE far -
PHONO
/
HEADPHONE
©)
LINE QUT
LINE ING i ENROL TO R-CH
1-2. DISASSEMBLY — Main Chassis —
@ Remove the shield plate by removing two
screws PS 3 x 6 and two solder lugs.
@ Remove two shield plate supports as
shown in the above photograph.
\ pull
1) Top Case and Battery Lid Removals
@ Remove the carrying handle by removing
two screws B 4 x 20.
bottom case
battery lid or or main case
top case
2) Bottom Case and Main Chassis Removals
— Bottom Case —
First, remove the battery lid and batteries and
remove four screws B 3 x 8 which secures the
bottom case.
B3x8
7.
B3x8
shield
plate
shield
plate
support
support
B3x8
B3x8
