MX-510

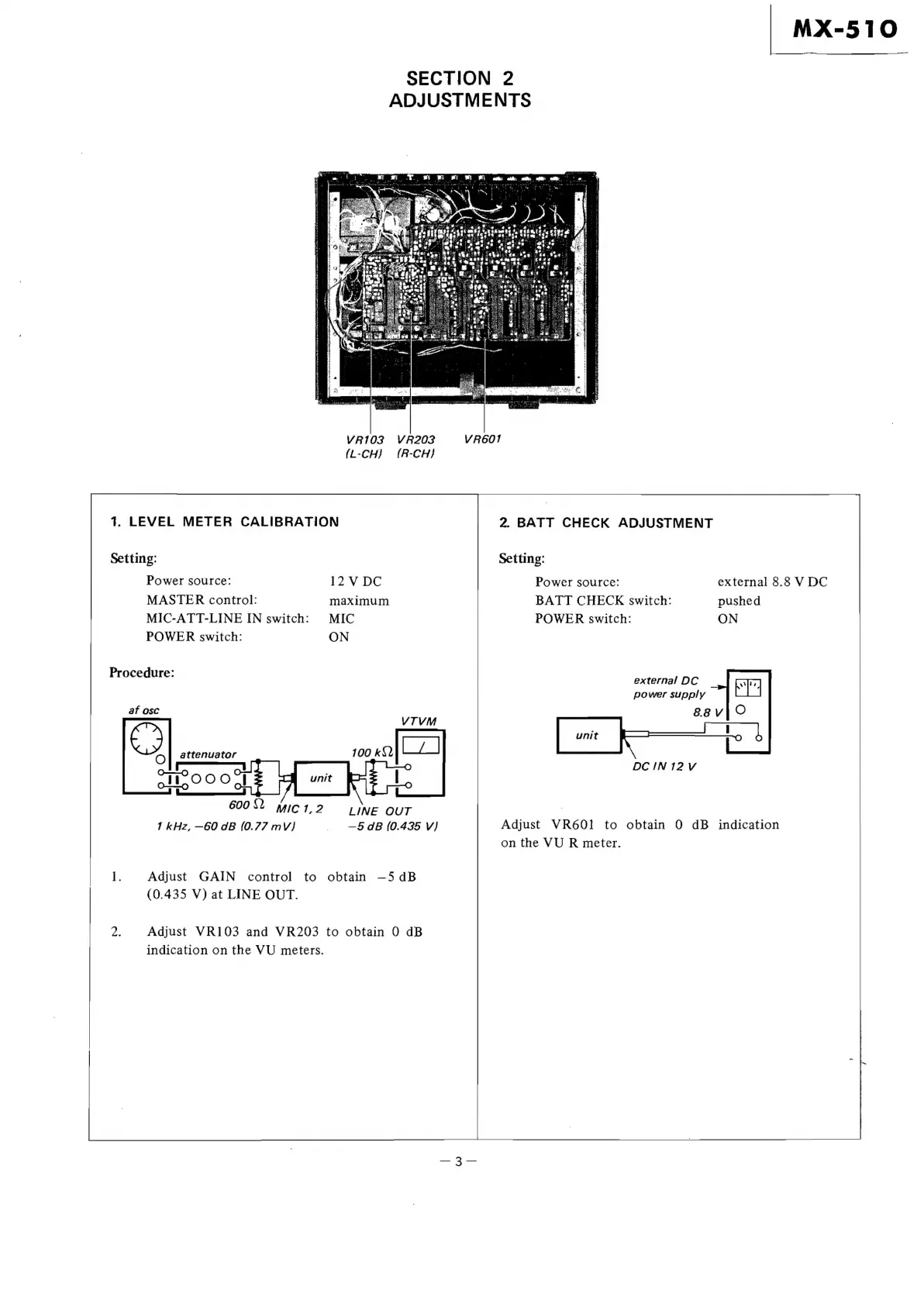

SECTION 2
ADJUSTMENTS
VR103 VR203 VR601
(L-CH) [(R-CH)
1. LEVEL METER CALIBRATION 2 BATT CHECK ADJUSTMENT
Setting: Setting:
Power source: 12VDC Power source: external 8.8 V DC
MASTER control: maximum BATT CHECK switch: pushed
MIC-ATT-LINE IN switch: MIC POWER switch: ON
POWER switch: ON
Procedure: een ere
power supply
af osc
t) attenuator
O Ai Oe DCIN12V
14-O0OO0
aa ee,
60082 mye1,2 LINE OUT 7
1 kHz, —60 dB (0.77 mV} _ —5 dB (0.435 V} Adjust VR60I1 to obtain O dB indication
on the VU R meter.
l. Adjust GAIN control to obtain —5 dB
(0.435 V) at LINE OUT.
a Adjust VR103 and VR203 to obtain 0 dB
indication on the VU meters.
