Sony MX-510 - Page 5

MX-510 MX-510

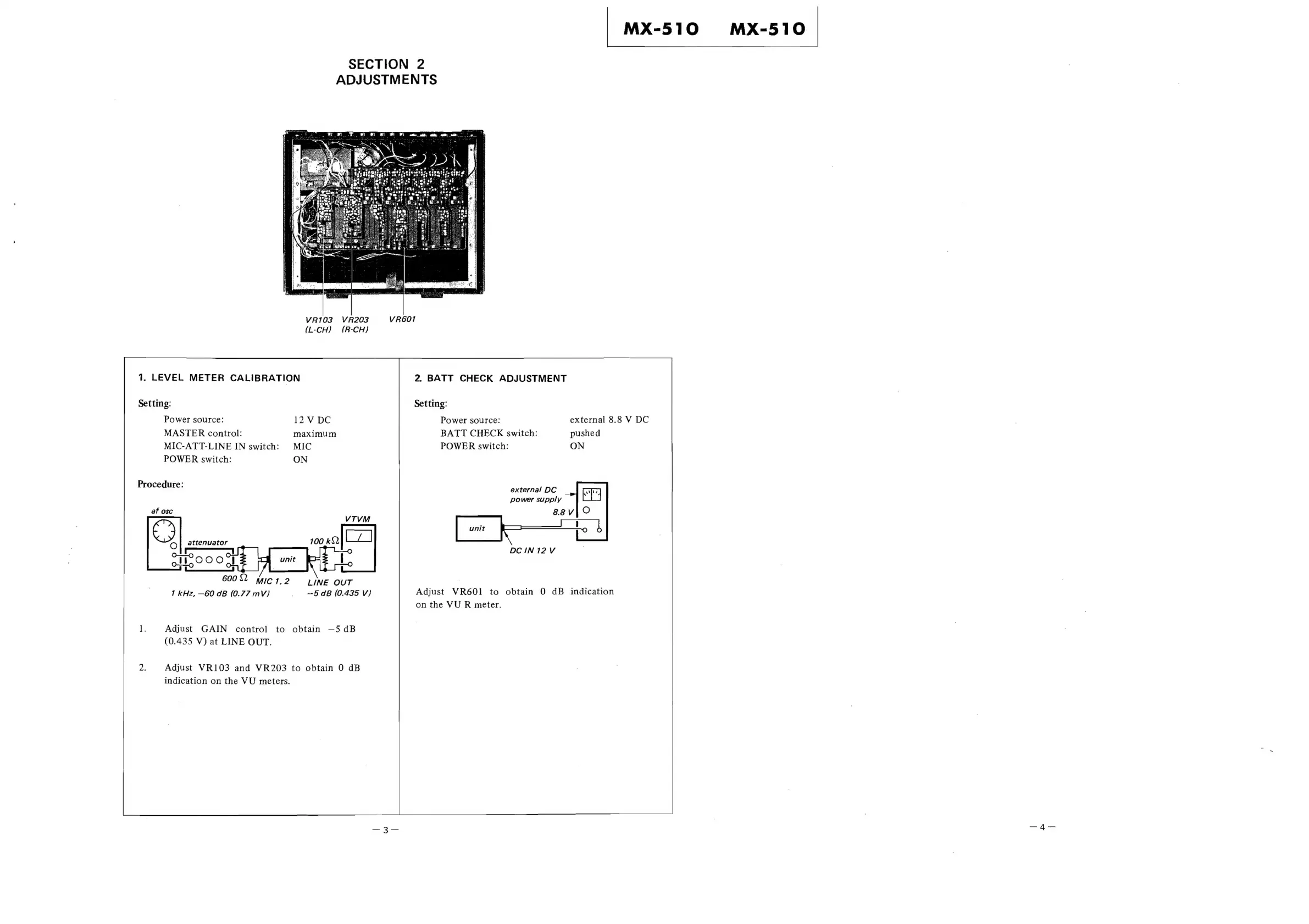

SECTION 2
ADJUSTMENTS
ad IRS A eg EEE ad A oi a Sr Fe ae WU
Pina Ea! Sti ig pa a Dl
ies
VR103 VR203 VR6OT
{L-CH}) {R-CH}
1, LEVEL METER CALIBRATION 2. BATT CHECK ADJUSTMENT
Setting: Setting:
Power source: 12 VDC Power source: external 8.8 V DC
MASTER control: maximum BATT CHECK switch: pushed
MIC-ATT-LINE IN switch: MIC POWER switch:
POWER switch: ON
Procedure:
external DC
power supply
af osc
attenuator
DCIN12V
60082 Mic1,2 LINE OUT :
1
kHz,
—60
dB
(0.77
mV}
~—5
dB
(0.435
V)
Adjust
VR601
to
obtain
O
dB
indication
on the VU R meter.
Le Adjust GAIN control to obtain —5dB
(0.435 V) at LINE OUT.
2. Adjust VR103 and VR203 to obtain 0 dB
indication on the VU meters.
