Sony MZ-E510 - Mechanism Deck (MT-MZE710-183); MAIN Board, Bracket (L) Assy, Bracket (R) Assy

7
MZ-E510

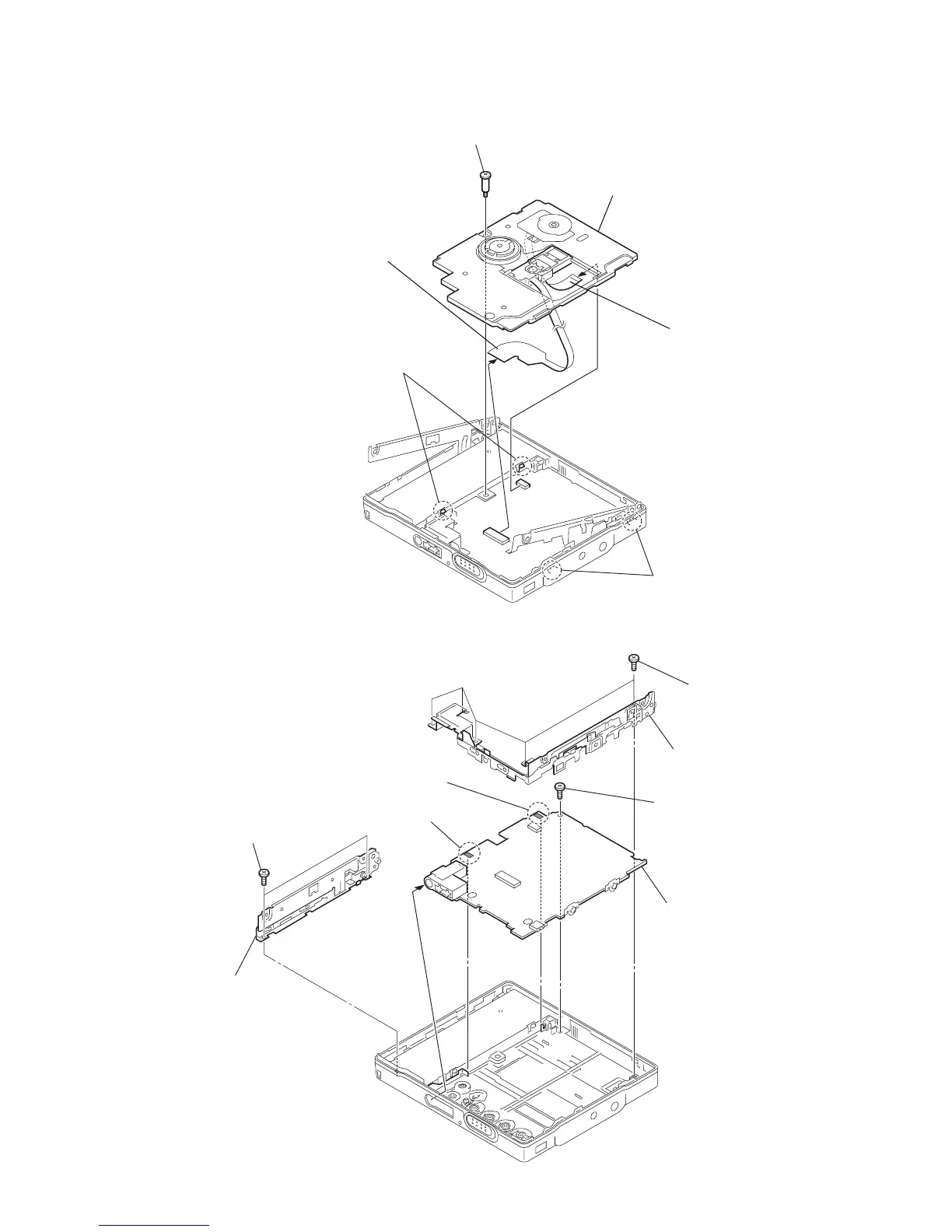

3-2. Mechanism Deck (MT-MZE710-183)
1 step screw (1.7)
6 mechanism deck
(MT-MZE710-183)
3 two claws
2 two claws
4 flexible board (optical pick-up)
(CN501)
5 flexible board (motor
)
(CN551)
3-3. MAIN Board, Bracket (L) Assy, Bracket (R) Assy
1 five tapping screws (M1.7)
5 tapping screw (M1.7)
7 two tapping screws (M1.7)
2 bracket (R) assy
8 bracket (L) assy
6 MAIN board
3 Remove the solder of
terminal (plus).
4 Remove the solder of
terminal (minus).
