– 65 –
SECTION 7
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) • • • (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Accessories and packing materials are given
in the last of this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

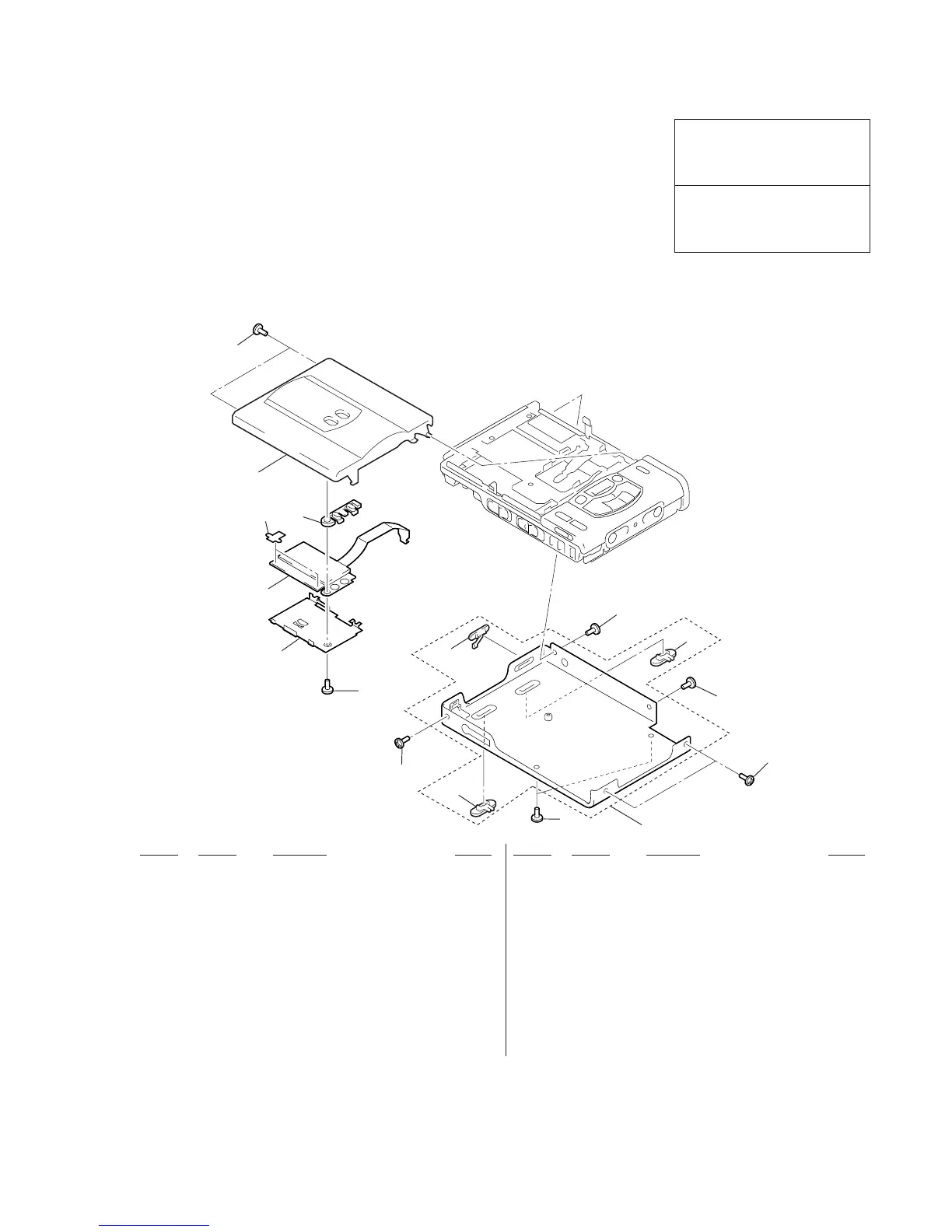

7-1. UPPER PANEL, BOTTOM PANEL SECTION
• Abbreviation
AUS : Australian
HK : Hong Kong
JEW : Tourist
FR : French
Les composants identifiés par une
marque ! sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
1 3-349-825-52 SCREW, PRECISION
2 4-986-190-01 HOLDER (LCD)
3 1-801-522-21 LCD MODULE
4 4-995-429-01 KNOB (SYNC) • • • (SILVER)
4 4-995-429-11 KNOB (SYNC)) • • • (BLUE)(AEP,FR,UK,HK,JEW)
5 4-986-189-11 BUTTON (DISP) • • • (SILVER)
5 4-986-189-21 BUTTON (DISP) • • • (BLUE)
(AEP,FR,UK,HK,JEW)
6 X-4950-040-1 PANEL (S) ASSY, UPPER • • • (SILVER)
6 X-4950-041-1 PANEL (B) ASSY, UPPER • • • (BLUE)
(AEP,FR,UK,HK,JEW)
7 4-963-883-41 SCREW (M1.4), PRECISION PAN
8 3-908-670-41 KNOB (DBB) • • • (SILVER)
8 3-908-670-51 KNOB (DBB) • • • (BLUE) (AEP,FR,UK,HK,JEW)
9 4-963-883-61 SCREW (M1.4), PRECISION PAN
10 X-4949-118-1 PANEL (S) ASSY, BOTTOM • • • (SILVER)
10 X-4949-123-1 PANEL (B) ASSY, BOTTOM • • • (BLUE)
(AEP,FR,UK,HK,JEW)
11 3-938-805-41 KNOB (DOLBY) • • • (SILVER)
11 3-938-805-51 KNOB (DOLBY) • • • (BLUE)
(AEP,FR,UK,HK,JEW)
* 12 4-988-279-01 CUSHION (LCD) (AEP,FR,UK,HK,JEW)
1
2
3
4
512
6
7
7
7
7
7
8
9
10
11
To Next Page
