Sony NW-E002F - Overall-2

27
NW-E002F/E003F/E005F
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

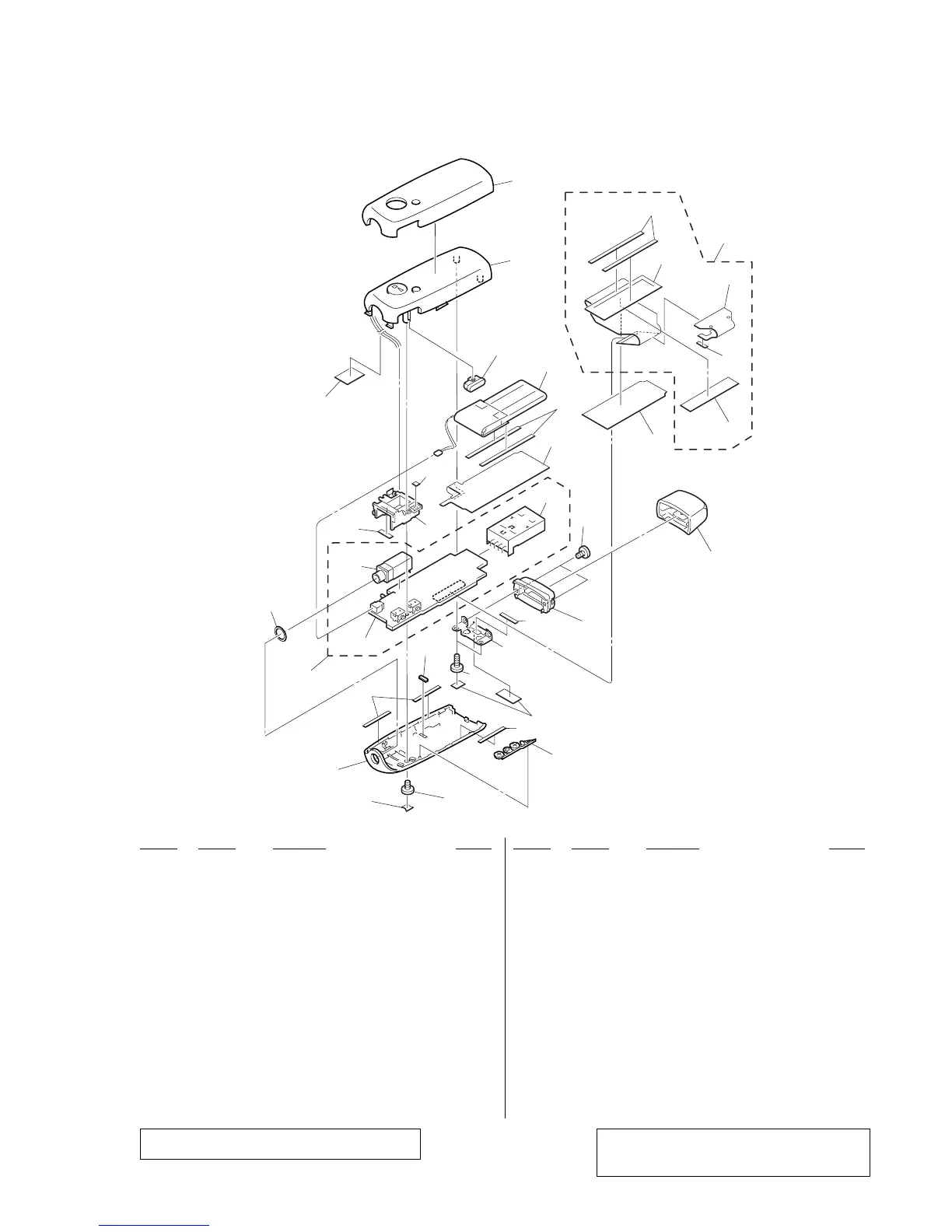

5-2. OVERALL-2
- Continued from page 26 -
3 X-2109-699-1 CABINET (LOW) (G) ASSY (GREEN)
3 X-2109-700-1 CABINET (LOW) (S) ASSY (SILVER)
3 X-2109-790-1 CABINET (LOW) (L) ASSY (BLUE)
4 2-678-142-01 SHEET (CABINET), ADHESIVE
5 2-678-135-01 BUTTON (VOL) (BLACK)
5 2-678-135-11 BUTTON (VOL) (SILVER)
5 2-678-135-21 BUTTON (VOL) (VIOLET)
5 2-678-135-31 BUTTON (VOL) (PINK)
5 2-678-135-41 BUTTON (VOL) (GREEN)
5 2-678-135-51 BUTTON (VOL) (BLUE)
6 3-254-136-11 SCREW (B1.4)
7 2-685-574-01 SPACER (LOWER)
8 2-678-139-01 USB STAY
9 2-678-143-01 SHEET (HP)
10 2-687-160-01 SHEET (STATIC-C)
11 X-2109-806-1 MAIN BOARD, COMPLETE (E002F:AEP)
11 X-2109-807-1 MAIN BOARD, COMPLETE (E002F:US, CND)
11 X-2109-808-1 MAIN BOARD, COMPLETE (E002F:CN)
11 X-2109-809-1 MAIN BOARD, COMPLETE (E002F:E, KR, JE)
11 X-2109-810-1 MAIN BOARD, COMPLETE (E002F:CEV, MX)
11 X-2109-811-1 MAIN BOARD, COMPLETE (E003F:AEP)
11 X-2109-812-1 MAIN BOARD, COMPLETE (E003F:US, CND)
11 X-2109-813-1 MAIN BOARD, COMPLETE (E003F:CN)
11 X-2109-814-1 MAIN BOARD, COMPLETE (E003F:E, KR, JE)
11 X-2109-815-1 MAIN BOARD, COMPLETE (E003F:CEV, MX)
11 X-2109-817-1 MAIN BOARD, COMPLETE (E005F:US, CND)
11 X-2109-818-1 MAIN BOARD, COMPLETE (E005F:E, KR, JE)
11 X-2109-819-1 MAIN BOARD, COMPLETE (E005F:MX)
11 X-2148-167-1 MAIN BOARD, COMPLETE (E005F:CN)
12 2-678-138-01 HP GUIDE
- Continued on page 28 -
BT901
J101
CN101
3
1
2
not
supplied
not
supplied
5
4
6
8
7
9
4
21
12
20
13
28
15
25
22
10
11
19
14
24
18
17
27
26
16
29
23
30
✦
✦
Refer to “TABLE OF DESTINATION AND COLOR
VARIATION” (Page 3) about usage condition of each
models and each destinations.
Ver. 1.3
Refer to “NOTES ON REPLACEMENT OF Ref. No. 15”
(Page 4) about ✦ of Ref. No.15, 30.
