Sony NW-E002F - Overall-3

28
NW-E002F/E003F/E005F
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BT901
J101
CN101
3
1
2
not
supplied
not
supplied
5
4
6
8
7
9
4
21
12
20
13
28
15
25
22
10
11
19
14
24
18
17
27
26
16
29
23
30
✦
✦
- Continued from page 27 -
13 X-2109-647-1 BUTTON (F/R) (B) ASSY (BLACK)
13 X-2109-648-1 BUTTON (F/R) (V) ASSY (VIOLET)
13 X-2109-649-1 BUTTON (F/R) (P) ASSY (PINK)
13 X-2109-650-1 BUTTON (F/R) (G) ASSY (GREEN)
13 X-2109-651-1 BUTTON (F/R) S ASSY (SILVER)
13 X-2109-789-1 BUTTON (F/R) (L) ASSY (BLUE)
14 2-685-403-01 SHEET (STATIC)
✦ 15 X-2109-822-1 CABINET (MID) (B) ASSY (BLACK)
✦ 15 X-2109-822-2 CABINET (MID) (B) ASSY (BLACK)
✦ 15 X-2109-823-1 CABINET(MID) ASSY (EXCEPT BLACK, VIOLET)
✦ 15 X-2109-823-2 CABINET(MID) ASSY (EXCEPT BLACK, VIOLET)
✦ 15 X-2148-421-1 CABINET(MID) V ASSY (VIOLET)
✦ 15 X-2148-421-2 CABINET(MID) V ASSY (VIOLET)
16 2-686-793-01 SPACER (OEL)
17 2-686-583-01 SHEET (STATIC-B)
18 2-678-141-01 SHEET (OEL)
19 X-2109-820-1 USB COVER (B) ASSY (BLACK)
19 X-2109-821-1 USB COVER ASSY (EXCEPT BLACK)
20 2-680-278-01 SHEET (H.P), ADHESIVE
21 3-234-449-09 SCREW (M1.4)
22 2-678-137-01 USB HOLDER (BLACK)
22 2-678-137-11 USB HOLDER (SILVER)
22 2-678-137-21 USB HOLDER (VIOLET)
22 2-678-137-31 USB HOLDER (PINK)
22 2-678-137-41 USB HOLDER (GREEN)
22 2-678-137-51 USB HOLDER (BLUE)
- Continued on page 29 -

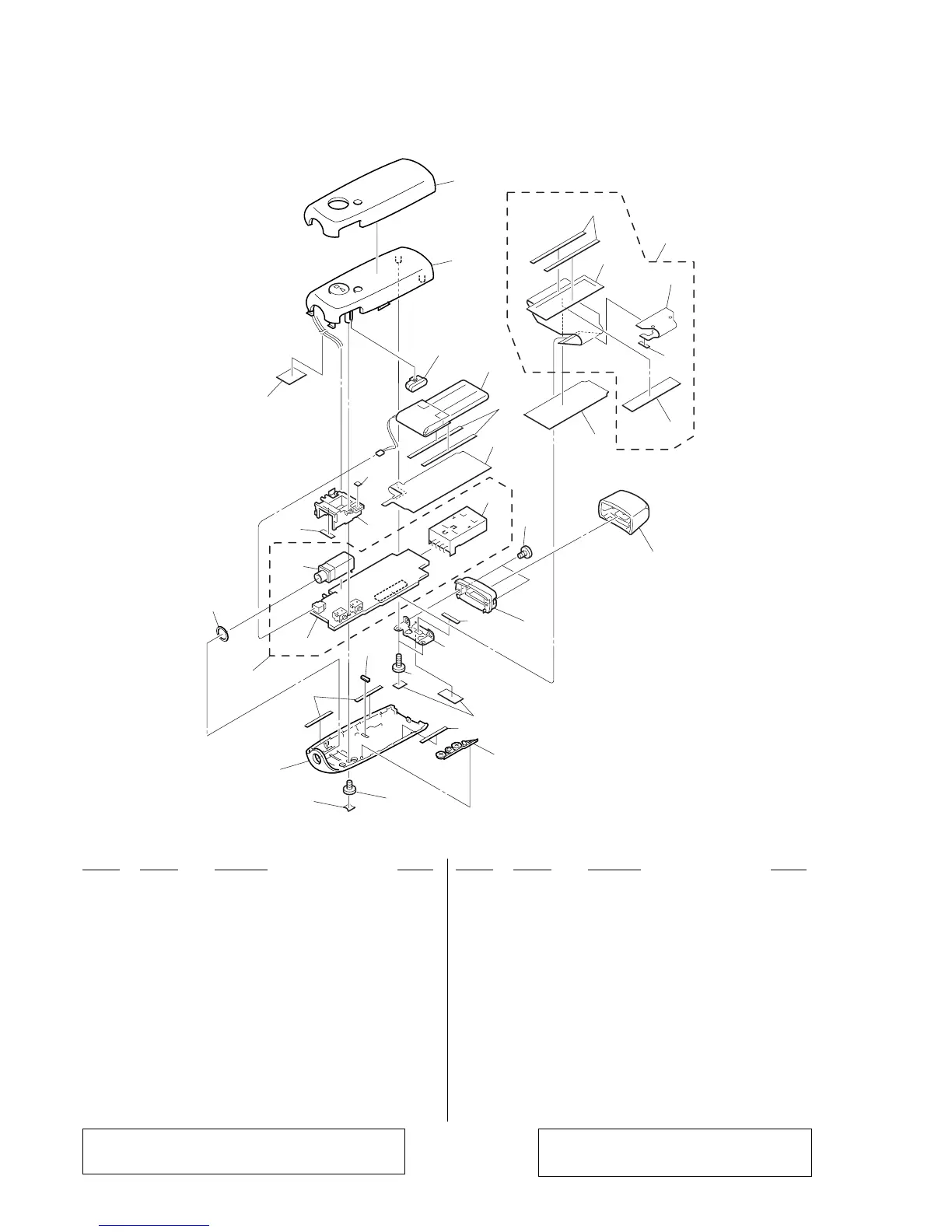

5-3. OVERALL-3
Refer to “TABLE OF DESTINATION AND COLOR
VARIATION” (Page 3) about usage condition of each
models and each destinations.
Ver. 1.3
✦ Ref. No. 15 has both the suffix-1 and the suffix-2 in parallel.
At replacement, refer to “NOTES ON REPLACEMENT OF
Ref. No. 15 ” on Page 4.
