Sony NW-E002F - 2-4. MAIN BOARD-1

8
NW-E002F/E003F/E005F

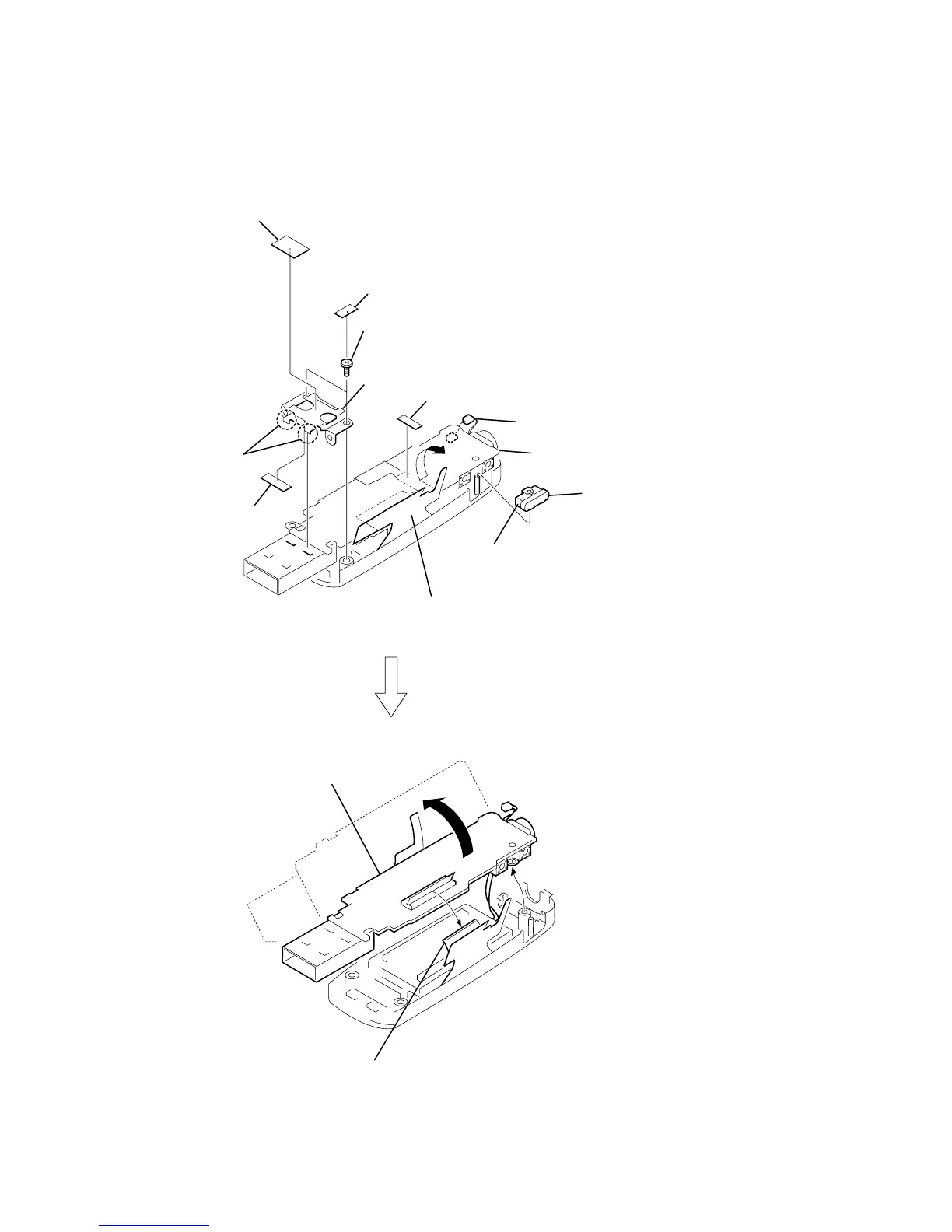

2-4. MAIN BOARD-1
3 two screws (B1.4)
1 two sheets immunity
2 sheet immunity
7 sheet (conductive)
4 two claws
6 sheet (static-C)
5 USB stay
9 connector (2P) (CN401)
8 Peel off the sheet (static-B).
0 button (F/R) ass
y
MAIN board
flat side
qa organic EL indicator module
(39core) (CN601)
qs Remove the MAIN board section
in the direction of the arrow.
