Sony NW-E002F - Overall-4

29
NW-E002F/E003F/E005F
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BT901
J101
CN101
3
1
2
not
supplied
not
supplied
5
4
6
8
7
9
4
21
12
20
13
28
15
25
22
10
11
19
14
24
18
17
27
26
16
29
23
30
✦
✦
- Continued from page 28 -
23 2-680-279-01 SHEET (OEL-FPC), ADHESIVE
24 2-680-280-01 SHEET (BATT)
25 2-678-129-01 CABINET (TOP) (BLACK)
25 2-678-129-11 CABINET (TOP) (SILVER)
25 2-678-129-21 CABINET (TOP) (VIOLET)
25 2-678-129-31 CABINET (TOP) (PINK)
25 2-678-129-41 CABINET (TOP) (GREEN)
25 2-678-129-51 CABINET (TOP) (BLUE)

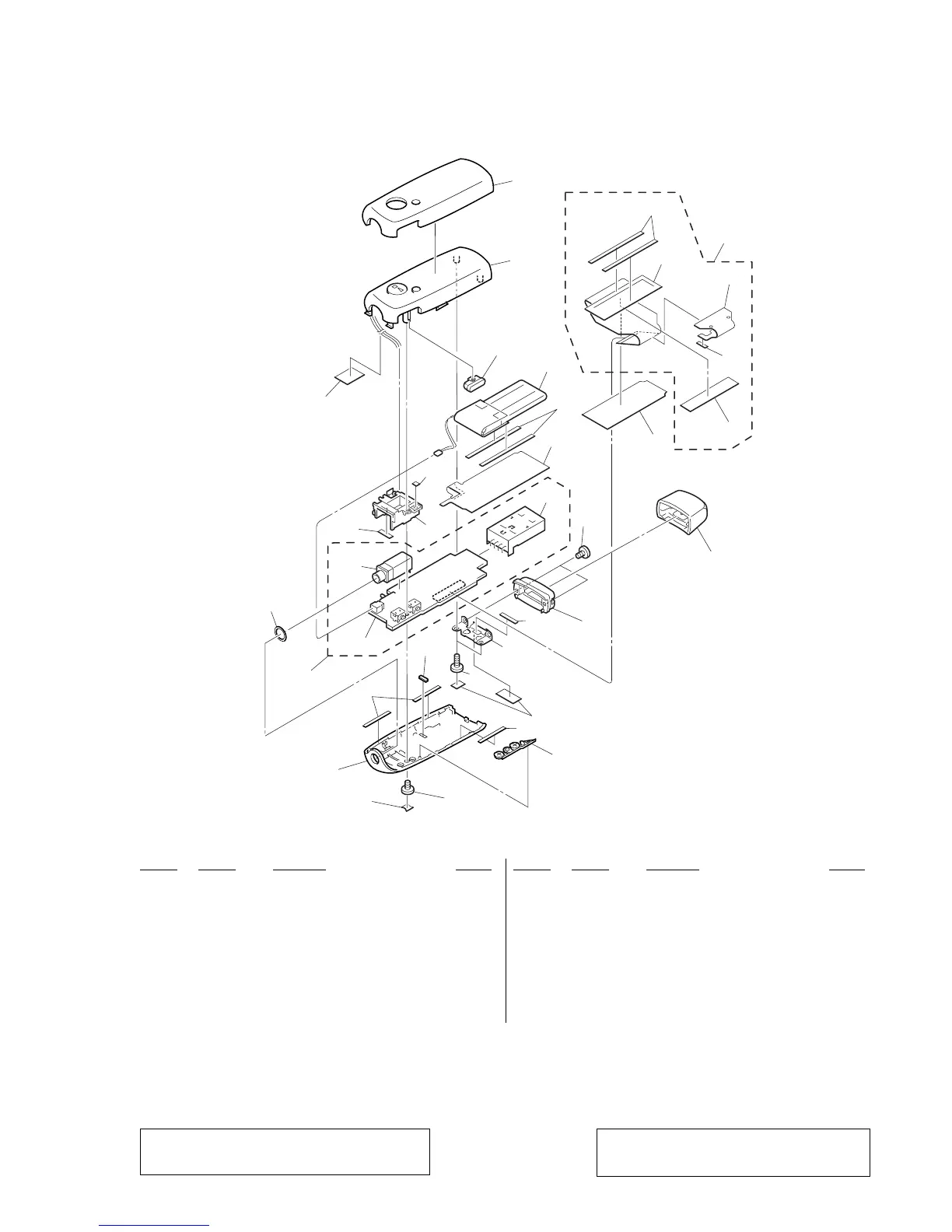

5-4. OVERALL-4
26 1-802-022-21 INDICATOR MODULE, ORGANIC EL
27 2-696-071-01 SHEET (CONDUCTIVE)
28 2-691-657-01 CUSHION (WIRE)
29 X-2149-615-1 OEL MODULE SUB ASSY
✦ 30 2-888-060-01 SHEET, HP GUIDE
BT901 1-756-663-11 BATTERY, SECONDARY (EXCEPT US, CND)
BT901 X-2109-825-1 BATTERY (A) ASSY (US, CND)
CN101 1-820-426-11 CONNECTOR, USB
J101 1-820-330-11 JACK, SMALL TYPE
Refer to “TABLE OF DESTINATION AND COLOR
VARIATION” (Page 3) about usage condition of each
models and each destinations.
Ver. 1.3
✦ Ref. No. 30 is used only in case of the suffix-2 of Ref.
No. 15. Refer to “NOTES ON REPLACEMENT OF
Ref. No. 15 ” on Page 4.
