Sony NW-E002F - 2-6. BATTERY (A) ASSY

9
NW-E002F/E003F/E005F

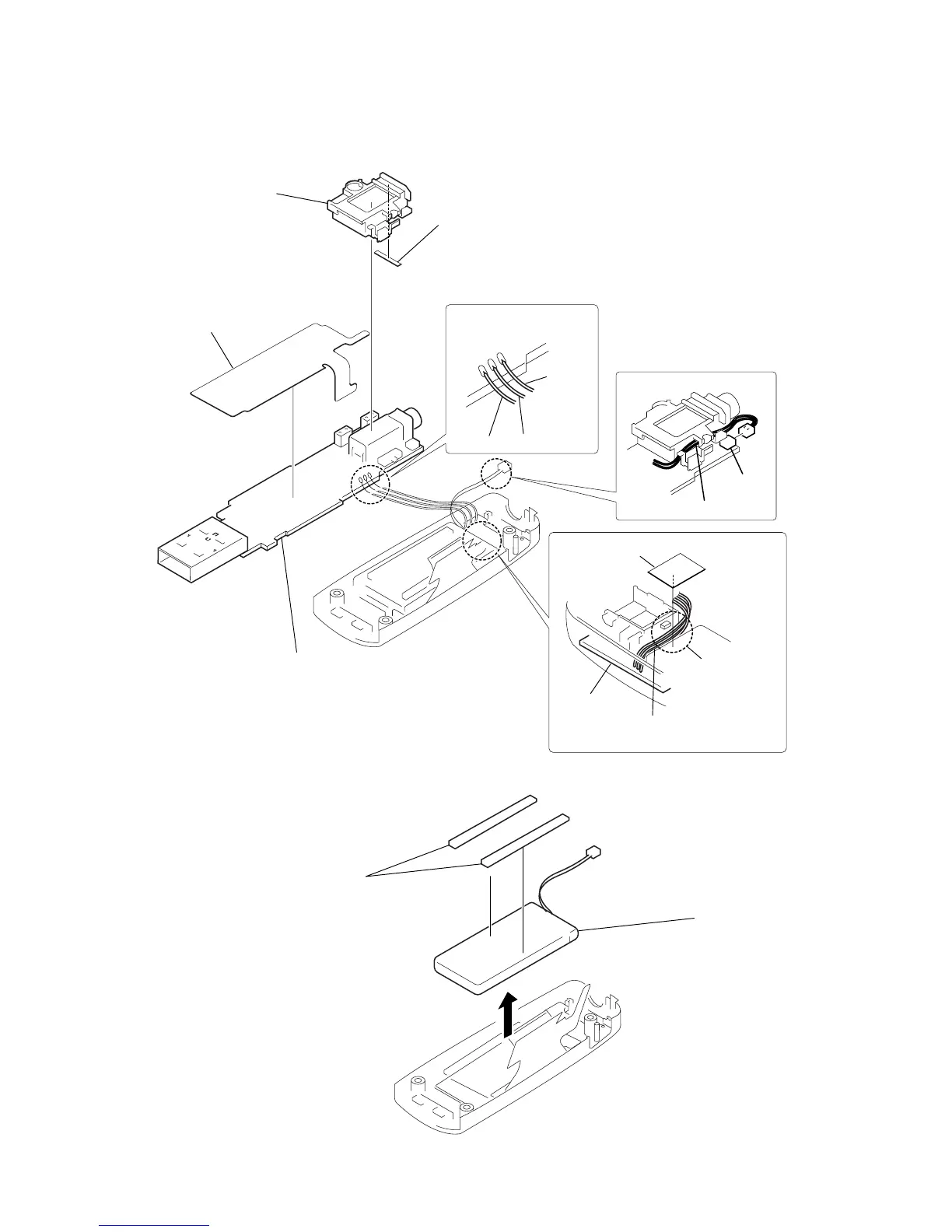

2-5. MAIN BOARD-2
2-6. BATTERY (A) ASSY
6 Remove soldering from
the three points.
7 MAIN board
2 sheet (static)
3 HP guide
4 adhesive sheet (H.P)
5 cushion (wire)
red
white
blue
Note: Be careful not to damage
the harnesses.
Attach the cushon
(wire) after folding
back the harness.
SWITCH board
CN401
1 Remove the harness.
1 tow sheets
(BATT)
2 battery (A) assy
