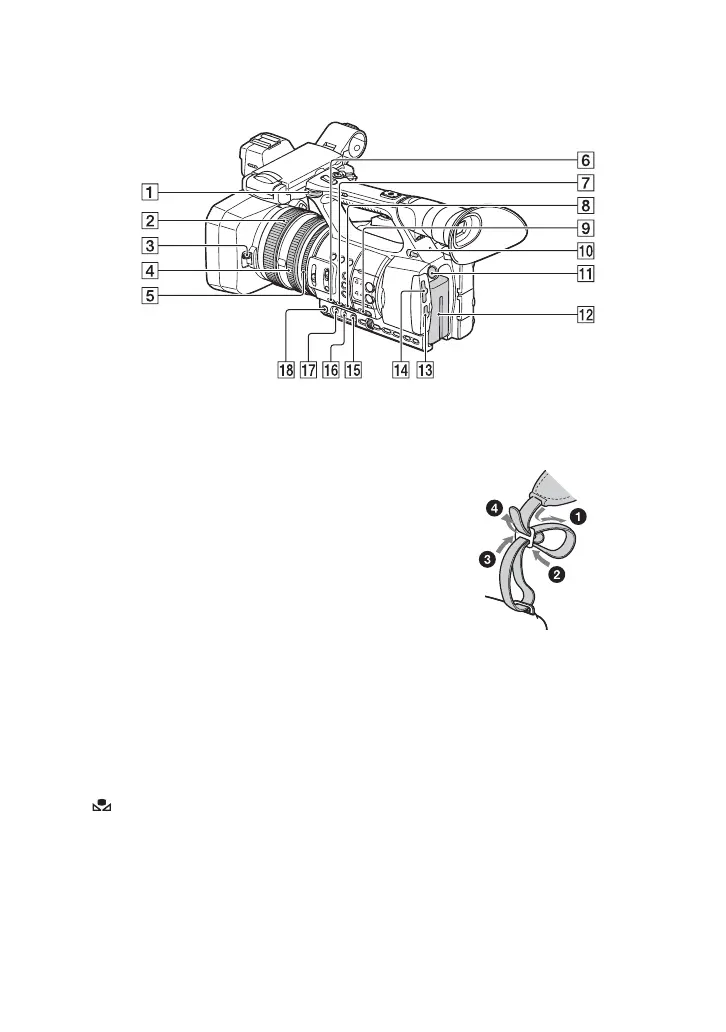

A Hook for shoulder strap
B Focus ring (32)
C Lens cover lever (21)
D Zoom ring (31)
E Iris ring (38)
F GAIN button (39)
G WHT BAL button* (41)
H SHUTTER SPEED button (39)
I AUTO/MANUAL switch (38)
J
i (headphones) jack
For connecting stereo mini-jack headphones.
K BATT RELEASE button (19)
L Battery pack (18)
M Memory card B slot/select button/access
lamp (25)
N Memory card A slot/select button/access
lamp (25)
O (one push) button (41)
P White balance memory switch (41)
Q Gain switch (39)
R IRIS button* (38)
* IRIS button and WHT BAL button have raised
tactile dots for your convenience in locating the
buttons.
To attach a shoulder strap
Attach a shoulder strap (sold separately) to
the hooks for a shoulder strap.
