Sony PMC-D305 - Page 25

– 25 –
1 connector
(CNP505)
6 chassis (AMP)
section
5 two screws
(BVTP 3
× 10)
5 three screws
(BVTP 3
× 10
)
4 connector
(CNP503)
5 six screws
(BVTP 3
× 10)
2 two screws
(BVTP 3
× 10)
2 screw
(BVTP 3
× 10)
2 four screws
(BVTP 3
× 10)
3 transformer
section
2 POWER AMP, TERMINAL,
JACK board
1 two screws
(BVTP 3
× 10)
1 two screws
(BVTP 3
× 10)
1 screw
(BVTP 3
× 10)

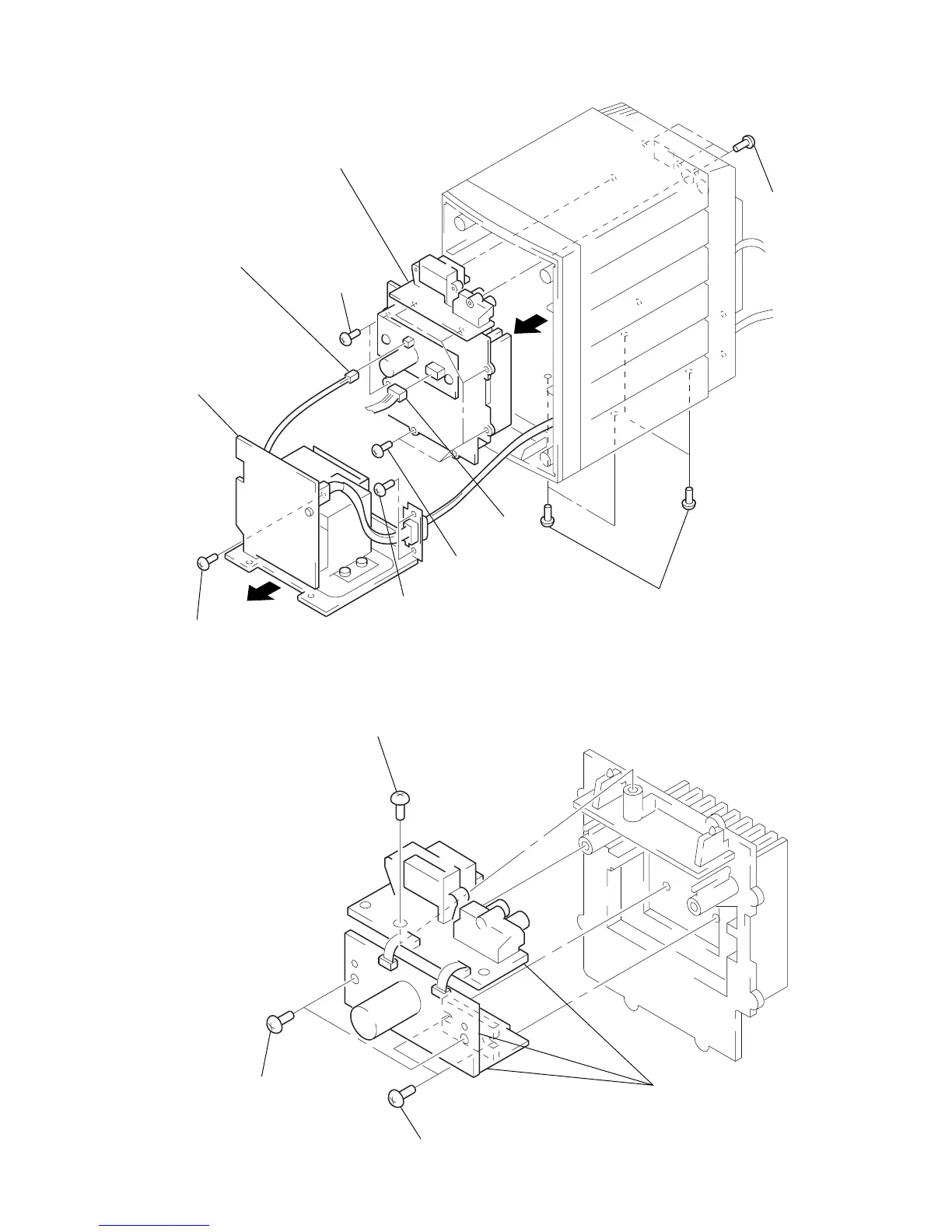

TRANSFORMER, CHASSIS (AMP) SECTION
POWER AMP, TERMINAL, JACK BOARD
