Sony PMC-D305 - Page 58

– 82 –
305
304
303
302
306
not supplied
307
308
309
310
312
311
315
314
313
316
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#10
#9
#11
not
supplied
SP101
T501
not supplied
D305: AUS/
D305L
UK
AUS
US, CND
E
AEP, IT, CET
#10
301
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 X-3374-211-1 FRONT SUB ASSY
* 302 1-666-177-11 POWER AMP BOARD
* 303 1-666-178-11 TERMINAL BOARD
* 304 1-666-179-11 JACK BOARD
305 3-014-113-01 CHASSIS (AMP)
306 1-782-509-11 CORD, SPEAKER
307 3-014-110-01 CABINET (REAR.SP-L)
308 X-3374-496-1 CORD ASSY
* 309 3-014-106-01 STOPPER (4P), CORD
! 310 1-575-651-11 CORD, POWER (D305L: AEP, IT, CET)
! 310 1-575-653-11 CORD, POWER (D305: E)
! 310 1-696-847-11 CORD, POWER (D305: AUS)
! 310 1-751-520-11 CORD, POWER (D305L: UK)
! 310 1-769-743-11 CORD, POWER (D305: US, CND)
311 3-703-244-00 BUSHING (FBS001), CORD (EXCEPT D305: E)
311 4-966-266-01 BUSHING (S) (FBS002), CORD (D305: E)
312 3-014-503-01 FOOT
* 313 1-666-176-11 POWER BOARD
314 4-812-134-11 RIVET (DIA. 3.5), NYLON (D305: AUS/D305L)
* 315 3-017-037-01 INSULATOR (D305: AUS/D305L)
316 3-017-101-01 LABEL, FUSE RATING (D305: US, CND, E)
SP101 1-505-607-11 SPEAKER (8CM) (L-CH)
! T501 1-431-353-11 TRANSFORMER, POWER (D305: AUS/D305L)
! T501 1-431-354-11 TRANSFORMER, POWER (D305: US, CND, E)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.

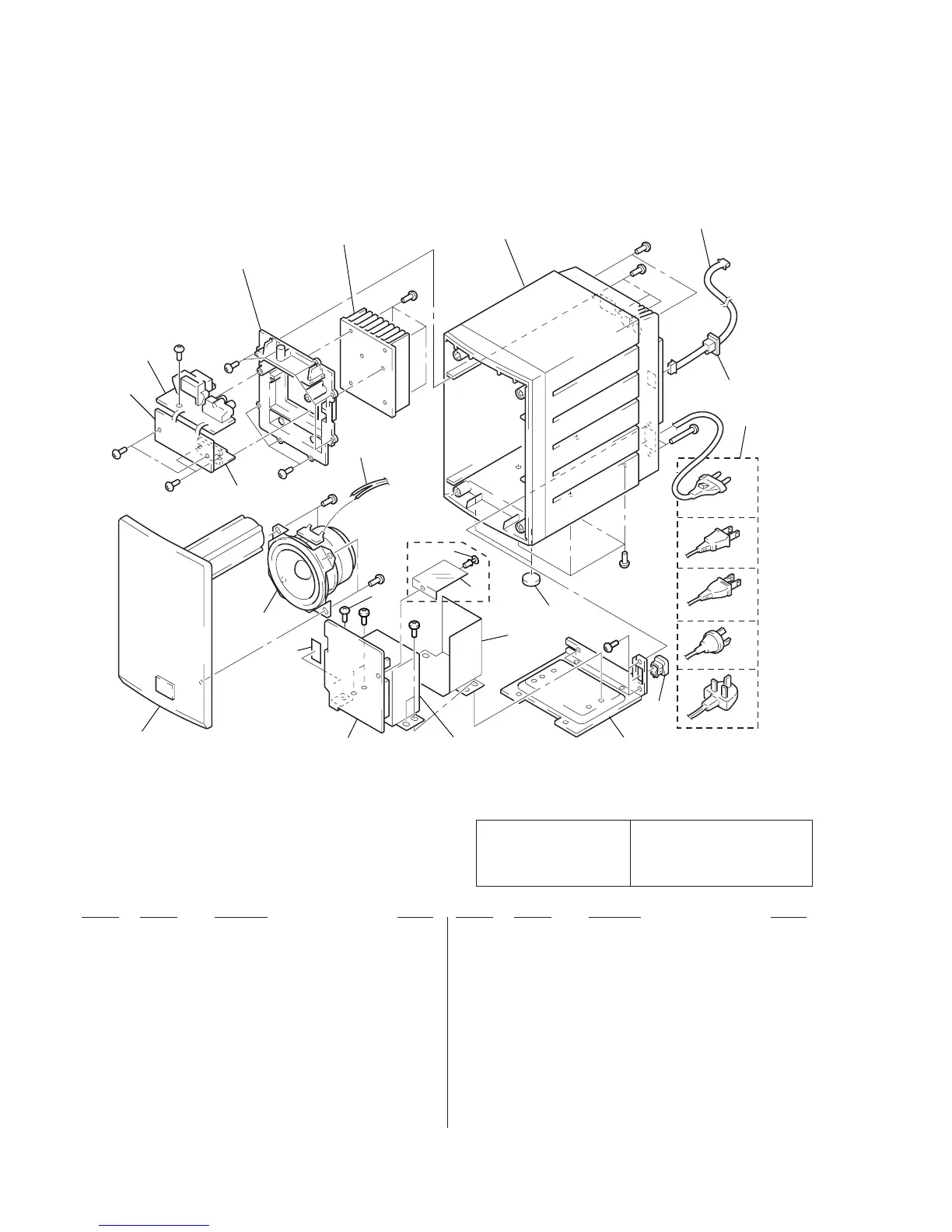

(7) SPEAKER (L) SECTION
