Sony PMC-D305 - Page 57

– 81 –
not
supplied
M691
PM691
268
269
270
261
271
272
277
278
279
280
276
275
274
273
275
267
264
265
266
260
261
262
263
286
285
284
283
282
281
251
252
253
255
254
256
259
258
257
255
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 3-938-949-01 WASHER (A)
252 3-938-951-01 WASHER (D)
253 3-938-936-01 SPRING (H)
254 3-938-930-01 SPRING (B)
255 3-938-910-01 REEL, CAP
* 256 3-938-912-01 ARM (UD)
257 3-938-952-01 WASHER (E)
258 3-938-948-01 WASHER (B)
259 3-938-932-01 SPRING (D)
260 3-938-908-01 CASSETTE, SPRING
261 3-938-945-01 SCREW (E)
262 3-017-428-01 FRAME (D)
263 3-938-920-01 PLUNGER, K
264 3-938-918-01 TRIGGER, ARM
265 3-938-931-01 SPRING (C)
266 3-938-921-01 GEAR (REEL)
267 3-662-742-11 SW BOARD
268 3-938-954-01 WASHER (G)
269 3-938-947-01 SCREW (G)
270 3-017-431-01 BRACKET (MM)
271 3-017-430-01 BELT
272 3-017-596-01 FLYWHEEL (R) ASSY
273 3-017-434-01 SCREW (H)
274 3-017-595-01 FLYWHEEL (L) ASSY
275 3-938-950-01 WASHER (C)
276 3-017-433-01 SPRING (K)
277 3-938-946-01 SCREW (F)
* 278 3-938-919-01 ARM (FR)
279 3-017-435-01 REFLECTOR
280 3-017-429-01 GEAR (REF)
281 3-938-917-01 GEAR (A)
282 3-938-924-01 GEAR (P)
283 3-938-923-01 GEAR (FR)
284 X-3372-613-1 CLUTCH ASSY
285 3-938-925-01 GEAR (IDL)
286 3-938-922-01 GEAR (CAM)
M691 3-016-425-01 MOTOR ASSY (CARSTAN/REEL)
PM691 1-454-806-11 SOLENOID, PLUNGER

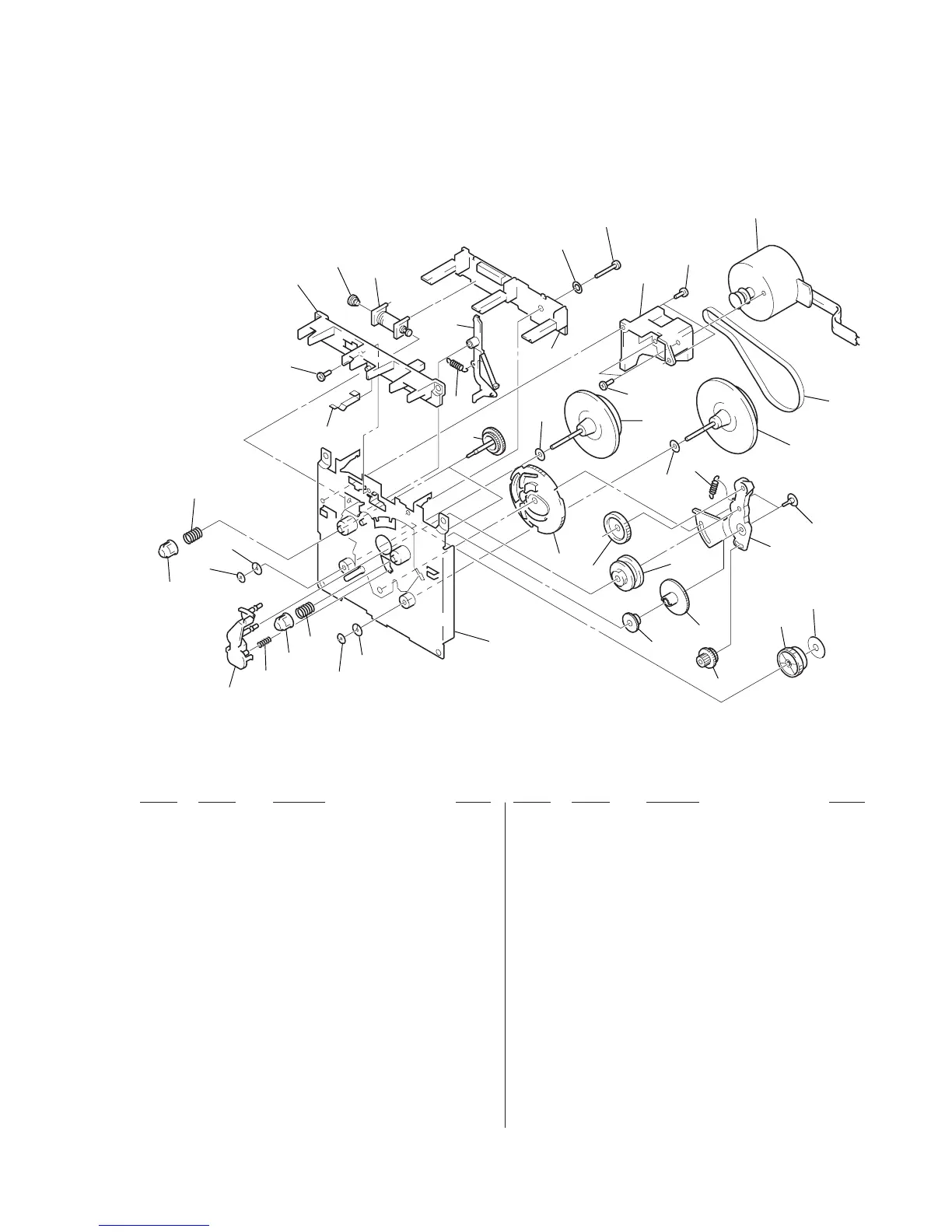

(6) TAPE MECHANISM DECK SECTION-2
(MF-D305)
