Sony PMC-D305 - TAPE MECHANISM AND SPEAKER VIEWS

– 80 –
216
215
214
209
208
HRPE101
207
206
205
210
211
213
212
222
220
221
219
227
218
217
223
224
225
226
201
202
203
204
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 3-938-905-01 HEAD, LEVER
202 3-938-940-01 SPRING (L)
203 3-938-941-01 SCREW (A)
204 3-938-906-01 AZIMUTH, SPRING
205 3-017-432-01 SPRING (A)
206 3-938-901-01 HEAD, HOLDER
* 207 3-938-904-01 HEAD, FRAME
208 3-938-902-01 WASHER
209 3-938-903-01 SCREW
210 3-938-935-01 SPRING (G)
* 211 X-3372-610-1 ASSIST ASSY, LEVER
212 3-938-933-01 SPRING (E)
213 3-017-592-01 ARM (PINCH L) ASSY
214 3-938-934-01 SPRING (F)
* 215 3-938-916-01 BRAKE, ARM
* 216 3-938-914-01 FRAME (C)
* 217 3-938-913-01 FRAME (B)
* 218 3-938-909-01 LOCK, EJECT
219 3-938-944-01 SCREW (D)
220 3-017-591-01 ARM (PINCH R) ASSY
221 3-938-937-01 SPRING (I)
222 3-938-938-01 SPRING (J)
* 223 3-938-911-01 HEAD (B), CHASSIS
224 3-938-907-01 HEAD, GEAR ARM
225 3-938-943-01 SCREW (C)
226 3-938-942-01 SCREW (B)
* 227 1-662-743-11 HEAD BOARD
HRPE1011-500-480-11 HEAD, MAGNETIC (REC/PB/ERASE)

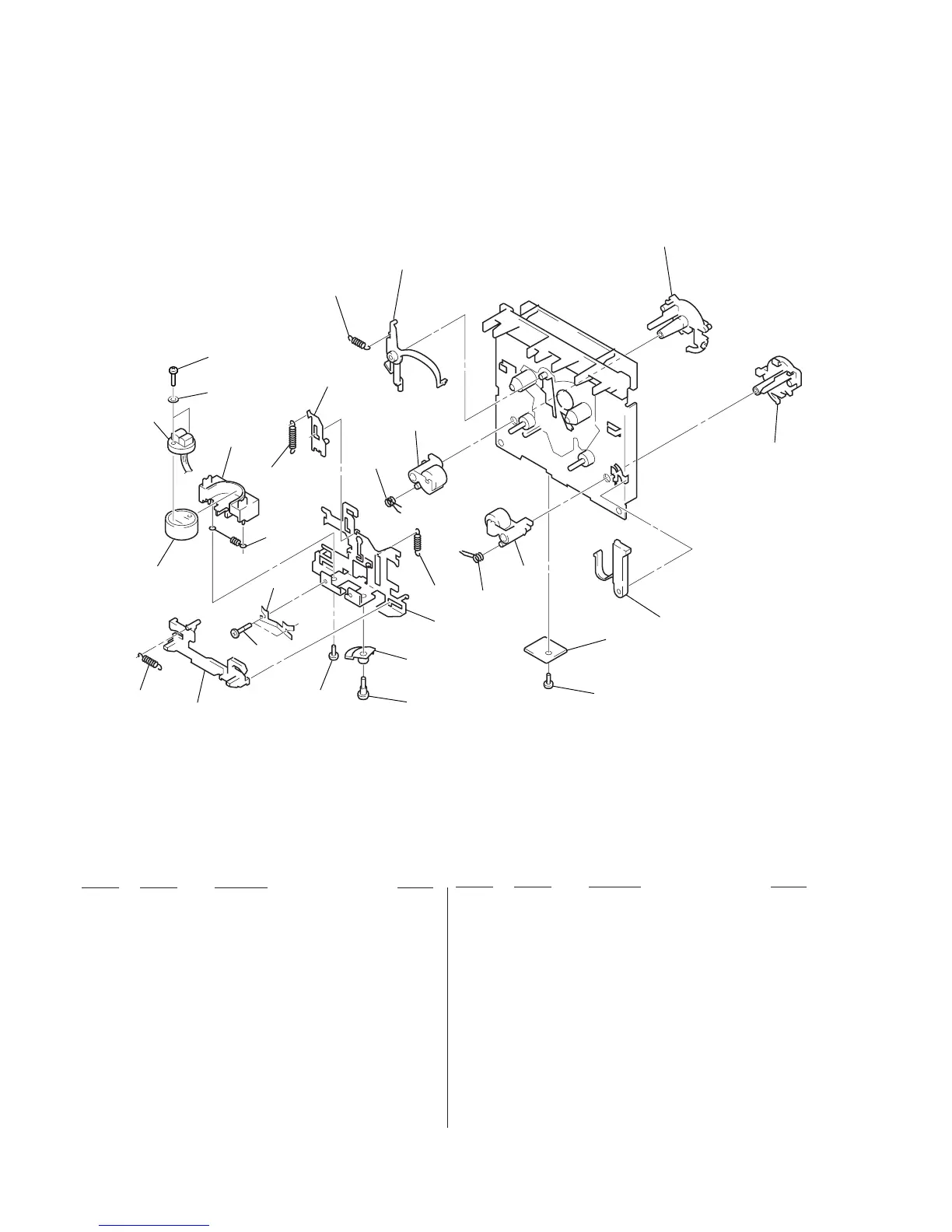

(5) TAPE MECHANISM DECK SECTION-1
(MF-D305)
