Sony PMW-EX1 - Operation Panels and Handle Controls

Parts Identifications
17
Overview

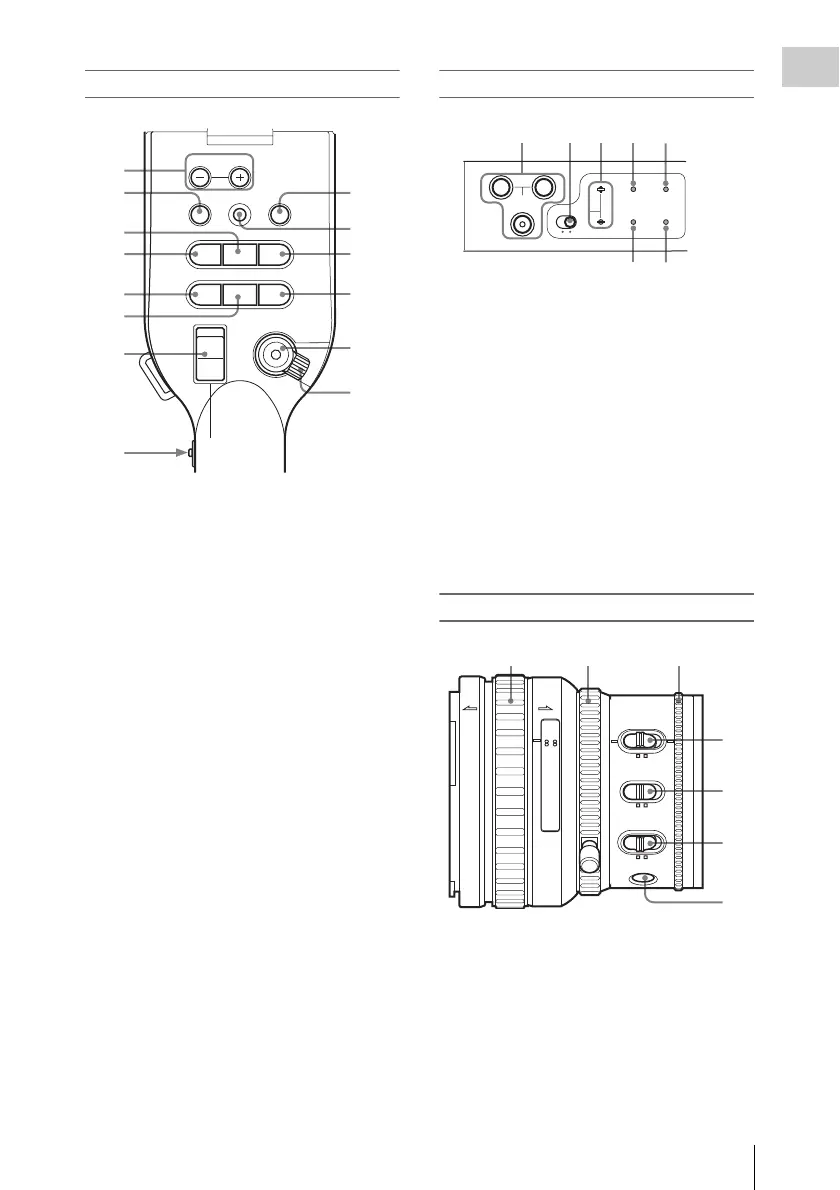

Operation panel on the handle
28. MONITOR VOL (volume) buttons (page
59, page 85)
29. THUMBNAIL button (page 83)
30. PLAY/PAUSE button (page 83)
31. F REV (fast reverse) button (page 84)
32. PREV (previous) button (page 84)
33. STOP button (page 85)
34. On-handle ZOOM button (page 49)
35. Zoom speed switch (page 49)
36. CANCEL button (page 99)
37. SEL/SET (selection/set) button (Joystick)
(page 99)
It functions accordingly when you move it up
(toward the subject), down (toward the
viewfinder), left, or right, or you push along
the axis.
It is called “the joystick” in the subsequent
operating instructions.
38. F FWD (fast forward) button (page 84)
39. NEXT button (page 85)
40. REC START/STOP button (page 37)
41. REC HOLD lever (page 38)
Upper operation panel
42. SHOT TRANSITION operation block
(page 67)
43. LCD B.LIGHT (LCD backlight) switch
(page 27)
44. LCD B.LIGHT +/– (LCD backlight
adjustment) buttons (page 27)
45. TC/U-BIT/DURATION (time data
selection) button (page 57, page 84)
46. STATUS button (page 93)
47. DISPLAY/BATT INFO button (page 20)
48. BARS/CAM (color bar/camera signal
switching) button (page 59)
Lens control block
49. Focus ring (page 51)
50. Zoom ring (page 49)
51. Iris ring (page 48)
52. IRIS switch (page 48)
53. MACRO switch (page 53)
54. FOCUS switch (page 52)
THUMBNAIL
F REV
PREV
SEL/SET
PLAY/PAUSE
STOP
CANCEL
F FWD
NEXT
REC
START/STOP
HOLD
lsL
j
G /SJ
MONITOR VOL
H
L
OFF
36
37
38
39
40
41
28
29
30
31
32
33
34
35
A
SHOT
TRANSITION
B
LCD B.LIGHT
TC/U-BIT/
DURATION
STATUS
BARS/CAM
DISPLAY
BATT INFO
ON OFF
42 43 44 45 46
47 48
AF/MF Full MF
15 25 40 81.210
310mm5
10 30
ft15
5.8
C
MANU AUTO
MANU AUTO
MACRO
FOCUS
PUSH AF
IRIS
OFF ON
8 5.6 4 2.8 1.916
49 50 51
52
53
54
55
