1-2 (E)
PMW-EX1R

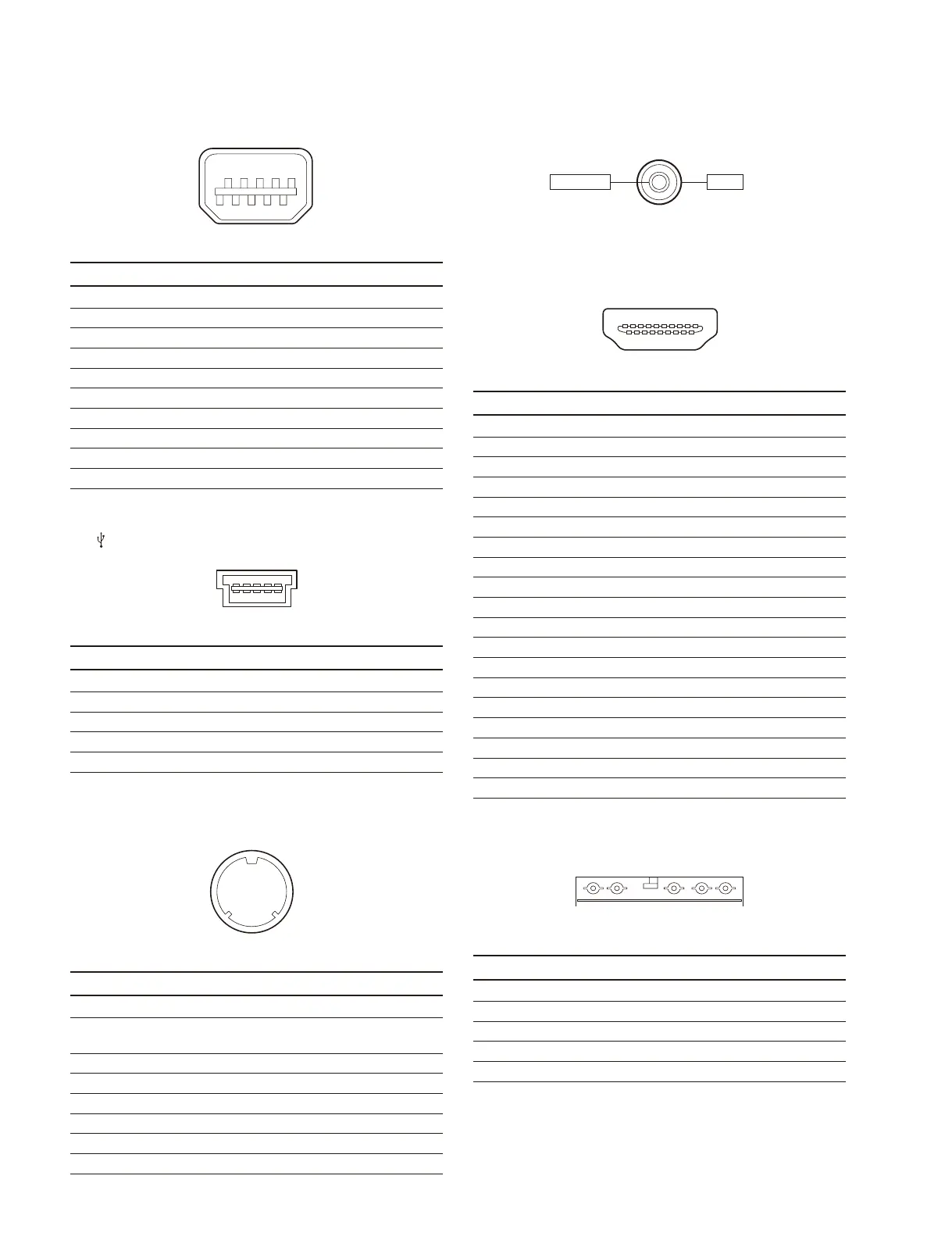

6 COMPONENT OUT: Mini D terminal (10P)
_ EXT VIEW _
No. Signal I/O Specifi cations
1 Y O COMPONENT (Y)
2 YGND _ Y GND
3 PB O COMPONENT (Pb)
4 PBPR_GND _ PBPR GND
5 PR O COMPONENT (Pr)
6 NC _
7 NC _
8 NC _
9 SW_GND _
10 SW I
7 (USB): Mini-B connector (5P)
_ EXT VIEW _
No. Signal I/O Specifi cations
1 VCC _ USB Vcc
2 D_ I/O USB_
3 D+ I/O USB+
4 ID _ NC
5 GND _ Ground
8 LENS REMOTE: (8P FEMALE)
_ EXT VIEW _
No. Signal I/O Specifi cations
1 COMMON_V O GND
2 ZOOM I GND: WIDE 1.66V: STOP
3.33V: TELE
3 COMMON+V O 3.33V
4 COMMON I 1.66V
5 REC I GND: ON OPEN: OFF
6 RET I GND: ON OPEN: OFF
7 SW COMMON O GND
8 FRAME GND _
19
210
15
18
2
7
3
6
4
5
9 DC IN: 2P (DC JACK TYPE 4)
_ EXT VIEW _
0 HDMI OUT: (19P)
_ EXT VIEW _
No. Signal I/O
1 TMDS_DATA2+ O
2 TMDS_DATA2_SHIELD _
3 TMDS_DATA2_ O
4 TMDS_DATA1+ O
5 TMDS_DATA1_SHIELD _
6 TMDS_DATA1_ O
7 TMDS_DATA0+ O
8 TMDS_DATA0_SHIELD _
9 TMDS_DATA0_ O
10 TMDS_CLOCK+ O
11 TMDS_CLOCK_SHIELD _
12 TMDS_CLOCK_ O
13 CEC (N.C.) _
14 RESERVED (N.C.) _
15 SCL O
16 SDA I/O
17 DDC/CEC_GND _
18 +5V_POWER O
19 HPD I
!- Battery: (5P)
_ EXT VIEW _
No. Signal I/O Specifi cations
1 BATT (+) _ +11 to +17 V dc
2 BAT_SCL O
3 BAT_SDA I/O
4 BATT_ID_DATA I
5 BATT (_) _
GNDEXT DC
19 1
18 2
12
345
